- Class: 6-10 T
- Width: 1600
- Adapter: MS08
Product catalogues
View and download →
Product catalogues
View and download →
Reference: AD-WOP-MS08
The AD-WOP-MS08 model delivers MS08 system functionality in a base-plate-free design. This sturdy and precisely manufactured adapter enables fast and trouble-free tool connection in harsh working environments.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 121 | 215 |
| 1300 | 129 | 235 |
| 1400 | 137 | 254 |
| 1500 | 145 | 273 |
| 1600 | 153 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |

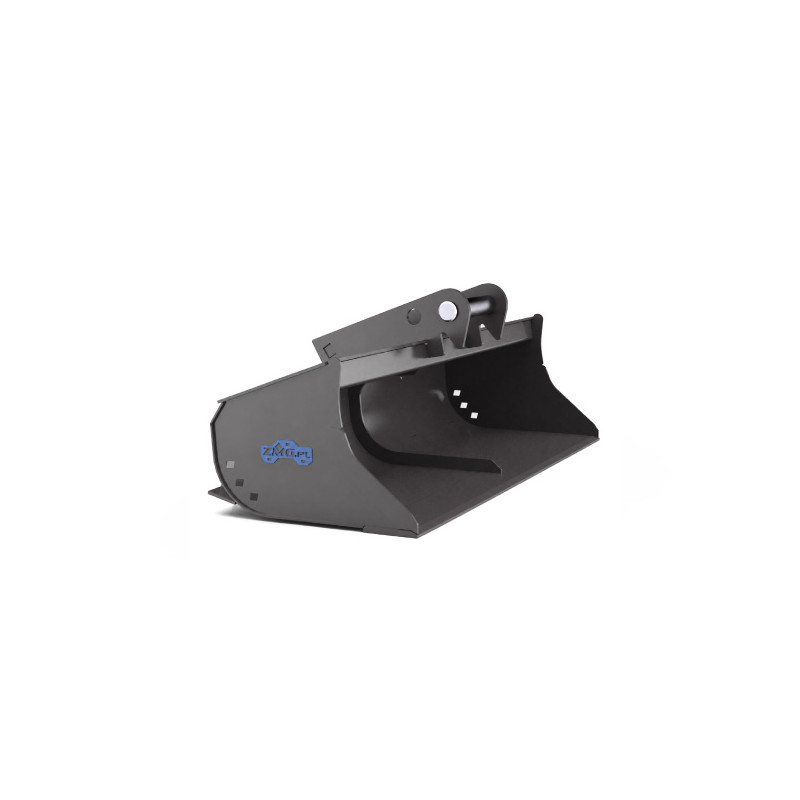

Model LSS-ZMG4-1600-MS08 is a 1600 mm ditch cleaning bucket designed for excavators in the 6–10 t class. It enables precise slope profiling, roadside levelling, ditch cleaning, and terrain shaping to required gradients. The Lehnhoff MS08 quick coupler is designed for heavy machines, ensuring secure attachment and rapid tool changes on demanding job sites. Thick steel plate and precisely executed welds guarantee the tool's resistance to deformation and abrasion when working in various soil types.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
