- Class: 3-4 T
- Width: 1200
- Adapter: S40
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 67 | 111 |
| 1100 | 72 | 123 |
| 1200 | 78 | 135 |
| 1300 | 83 | 146 |
| 1400 | 89 | 158 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |

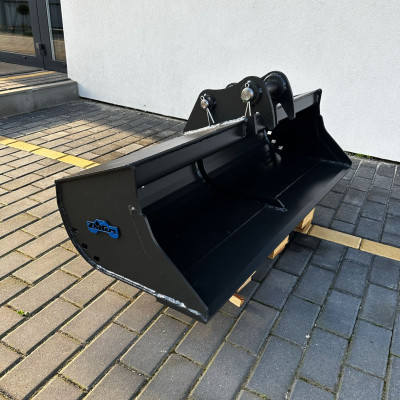

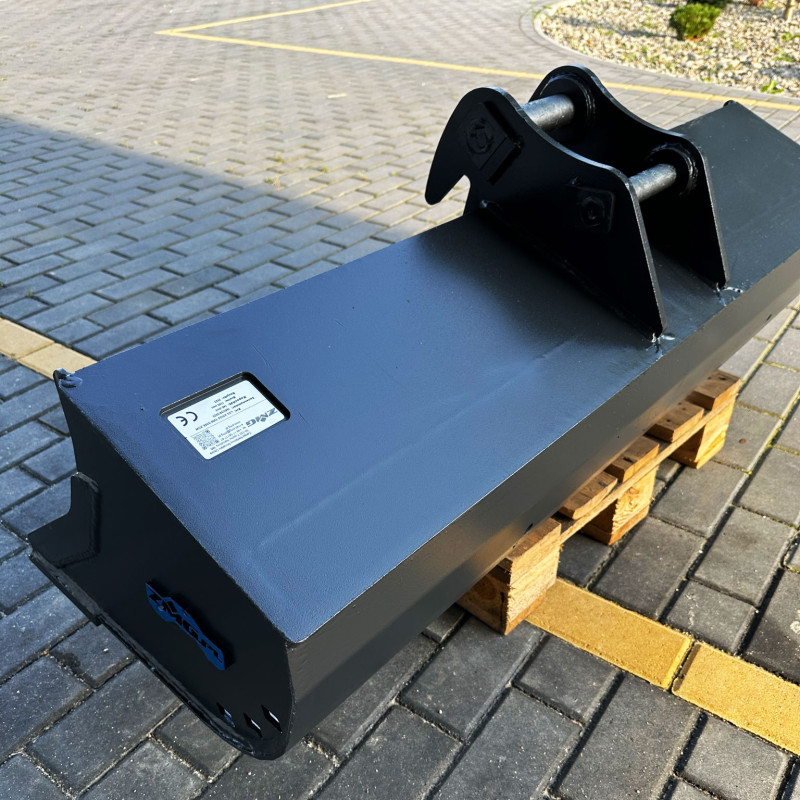

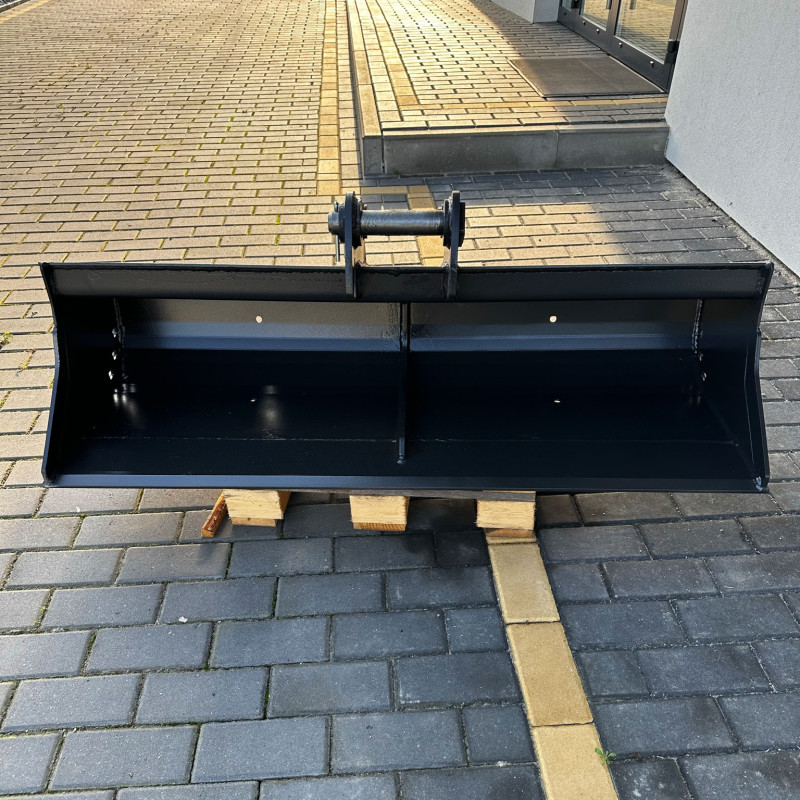

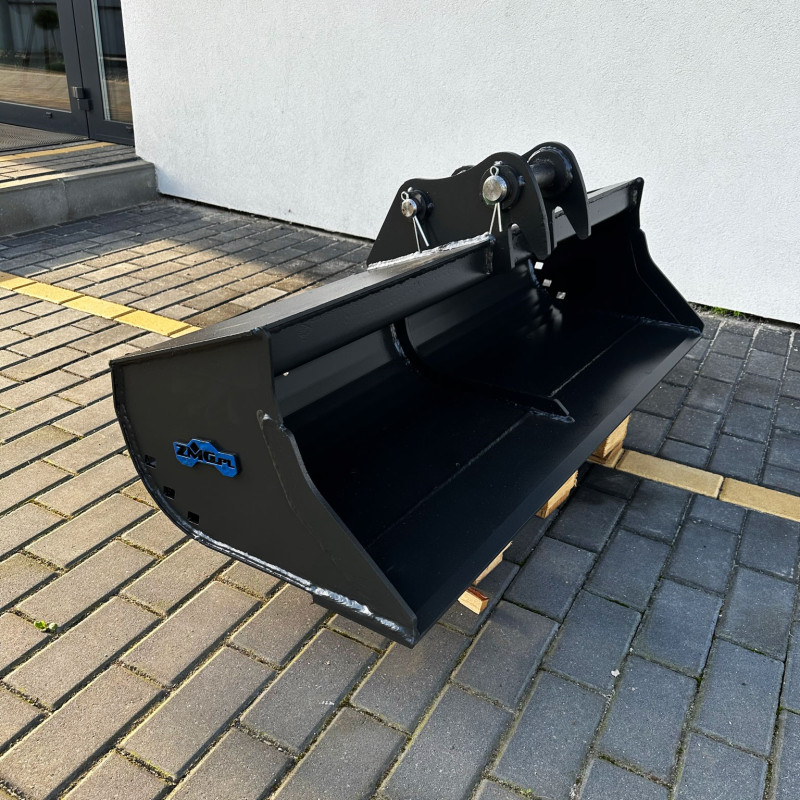

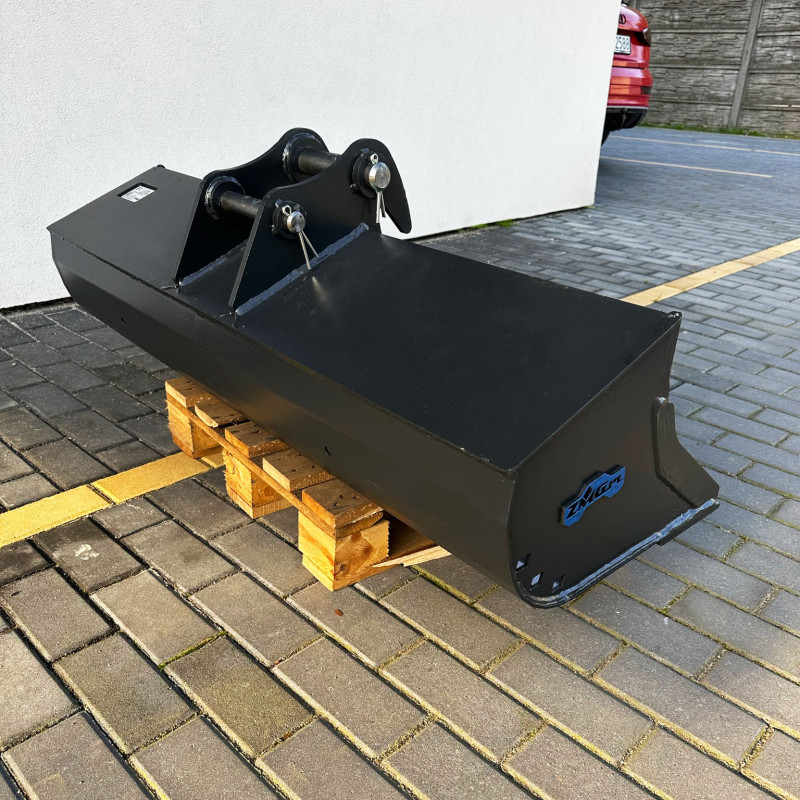

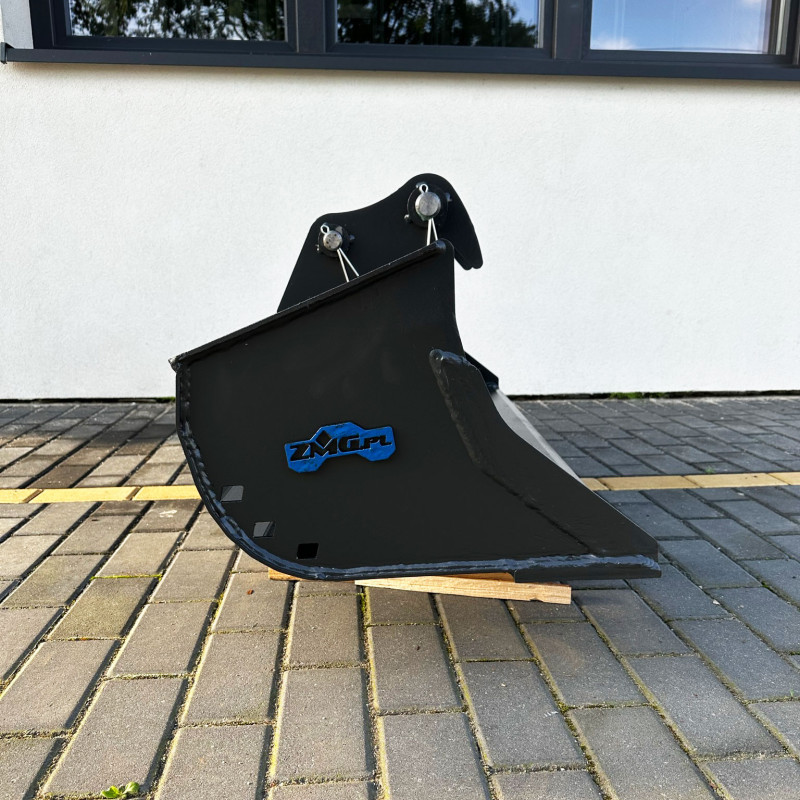

The LSS-ZMG2-1200-S40 ditch cleaning bucket, 1200 mm wide, is a tool created for excavators in the 2–4 t class. It excels at finish grading on slopes, cleaning drainage channels, and achieving cross-sections to specified dimensions. The S40 adapter guarantees compatibility with machines equipped with the popular S40 standard, facilitating integration into existing machine fleets. S355 steel construction and reinforced working edges ensure durability and geometric precision throughout the bucket's service life.

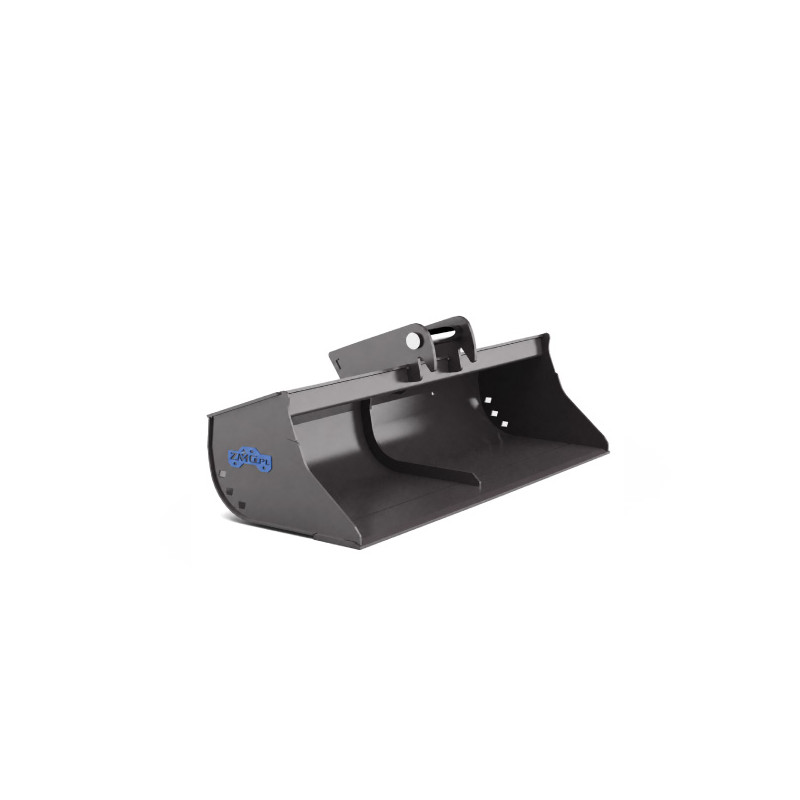

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
