- Class: 6-9 T
- Width: 1300
- Adapter: MS08SY
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 121 | 215 |
| 1300 | 129 | 235 |
| 1400 | 137 | 254 |
| 1500 | 145 | 273 |
| 1600 | 153 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
Model LSS-ZMG4-1300-MS08SY is a 1300 mm ditch cleaning bucket designed for excavators in the 6–10 t class. It enables precise slope profiling, roadside levelling, ditch cleaning, and terrain shaping to required gradients. The hydraulic Lehnhoff MS08SY quick coupler enables operators to swap heavy attachments directly from the cab, eliminating manual coupling and improving safety. High-quality S355 steel construction ensures the ditch cleaning bucket maintains accurate working profile geometry over an extended service life.

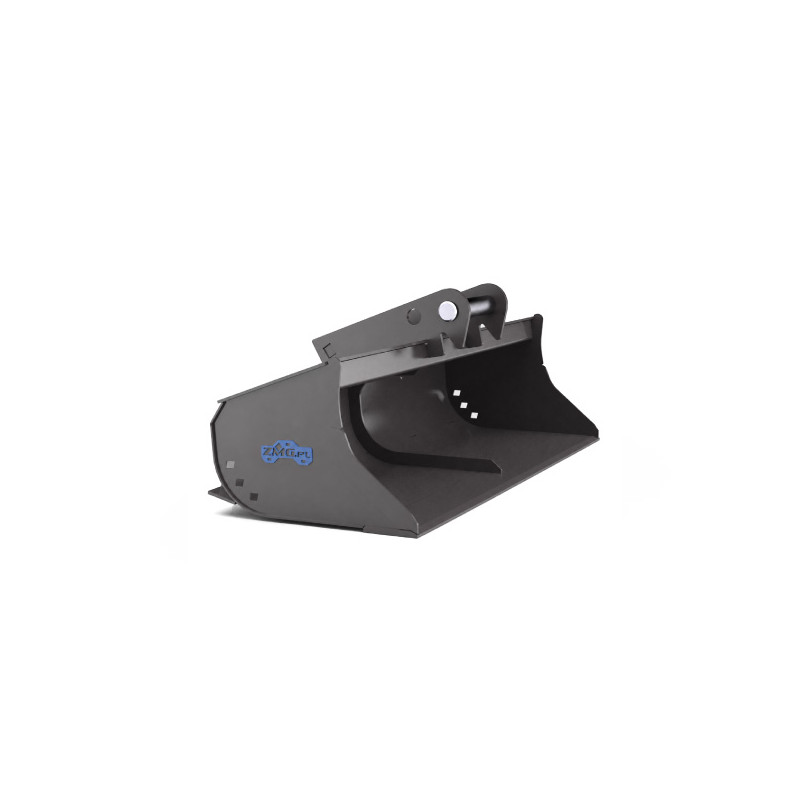

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
