- Class: 0-2 T
- Width: 1000
- Adapter: S30/150
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 46 | 59 |
| 900 | 50 | 70 |
| 1000 | 55 | 75 |
| 1100 | 59 | 83 |
| 1200 | 64 | 91 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |

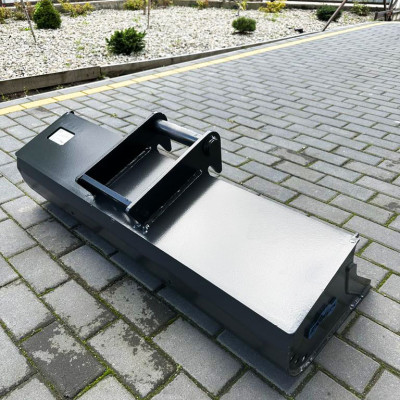

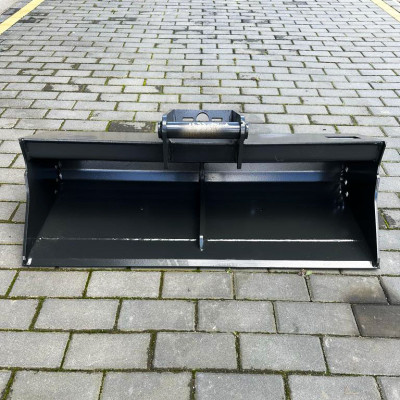

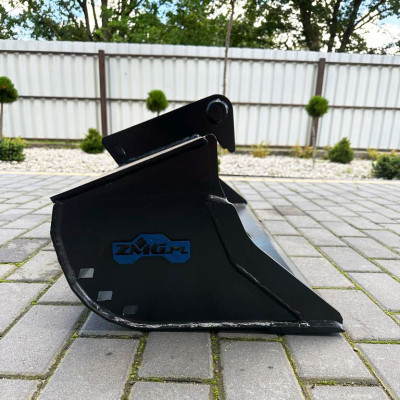

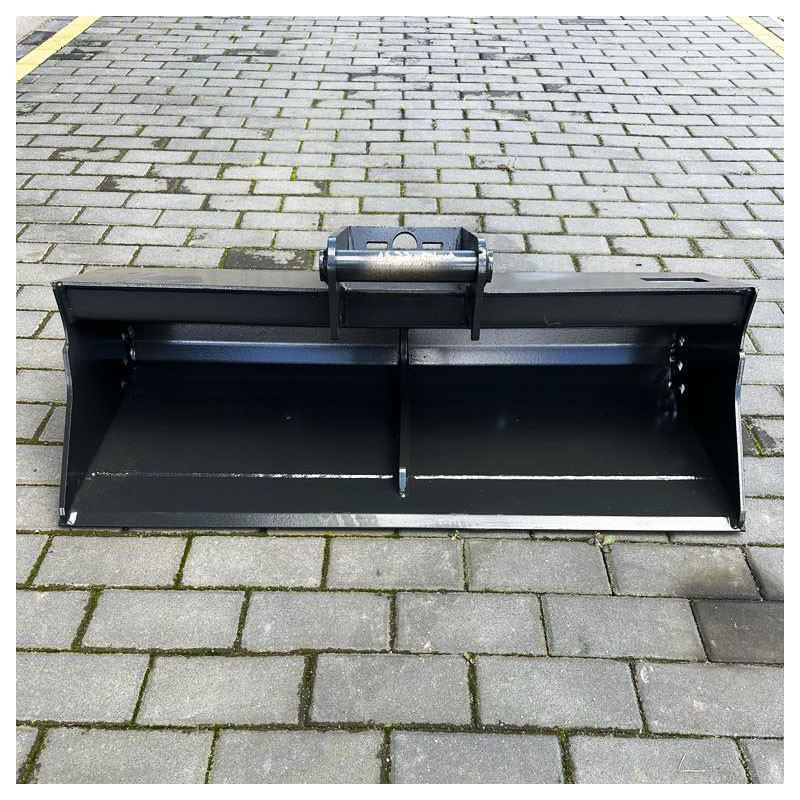

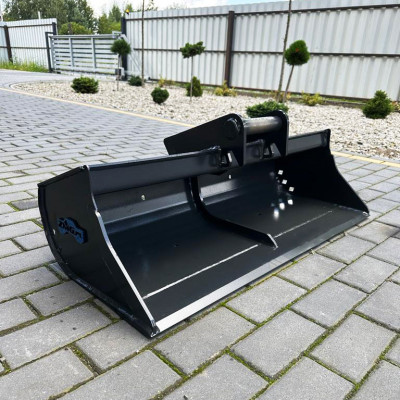

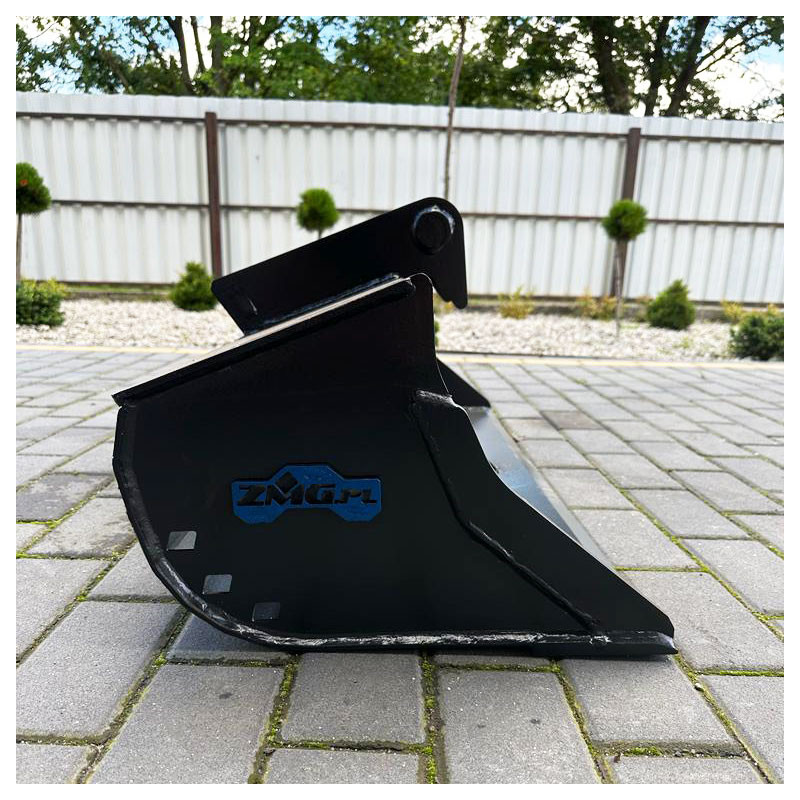

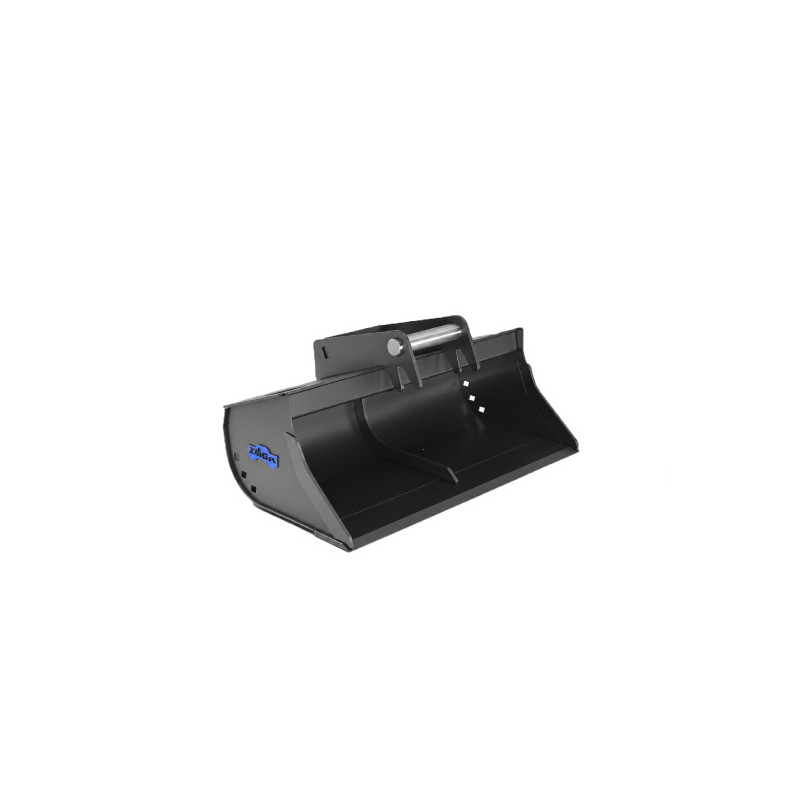

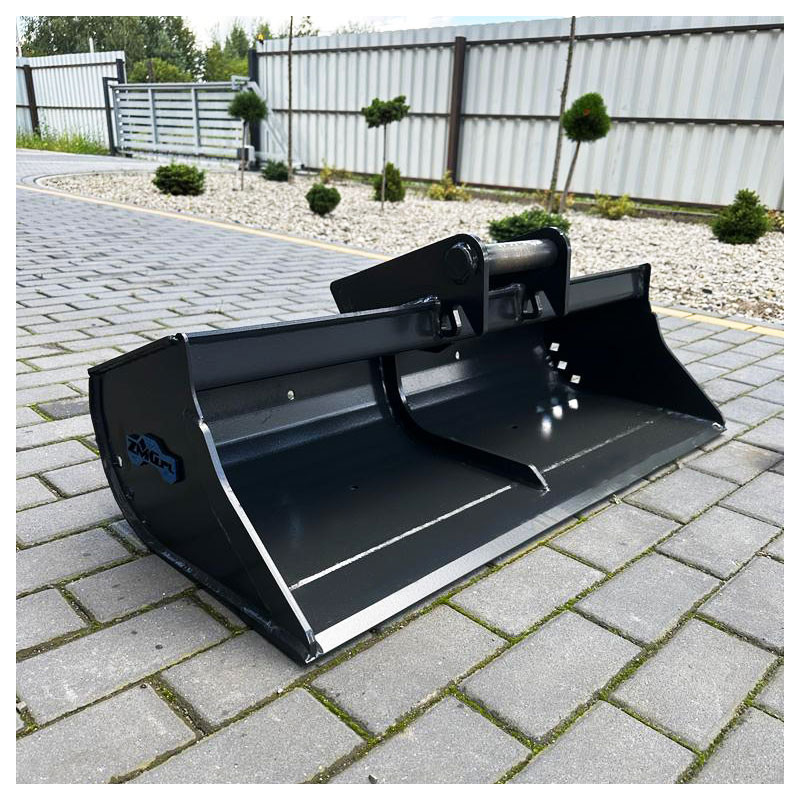

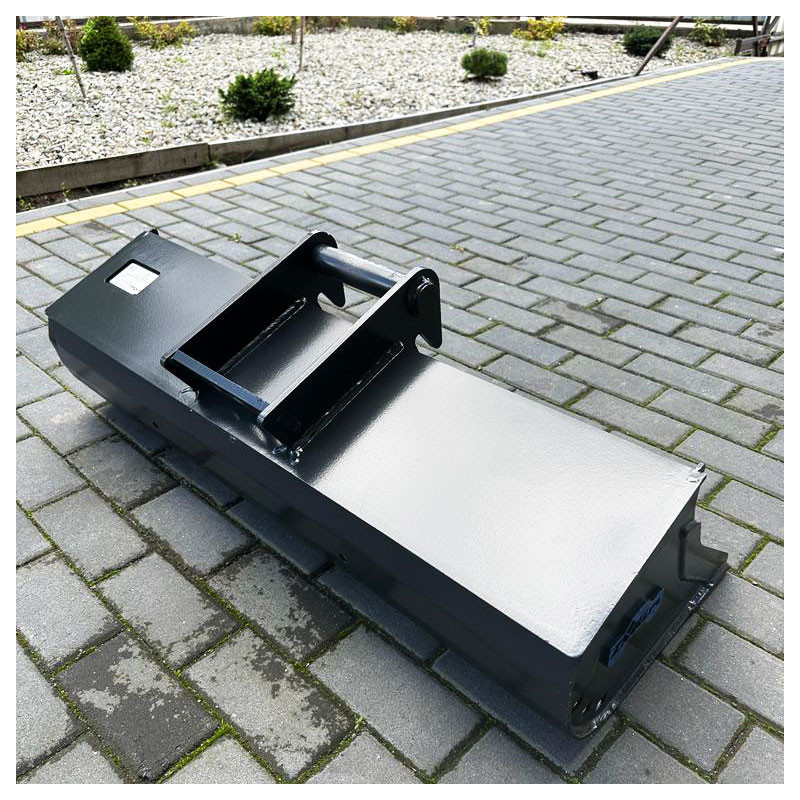

The LSS-ZMG1-1000-S30/150 is a 1000 mm ditch cleaning bucket dedicated to mini and compact excavators up to 2 t. Its flat profile ensures precision in slope forming, terrain levelling, ditch cleaning, and road construction and maintenance work. The S30/150 adapter enables bucket mounting on machines with the S30 standard, ensuring compatibility across a wide range of attachments in this class. High-quality S355 steel construction ensures the ditch cleaning bucket maintains accurate working profile geometry over an extended service life.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
