- Class: 3-4 T
- Width: 1000
- Adapter: M03
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 67 | 111 |
| 1100 | 72 | 123 |
| 1200 | 78 | 135 |
| 1300 | 83 | 146 |
| 1400 | 89 | 158 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |

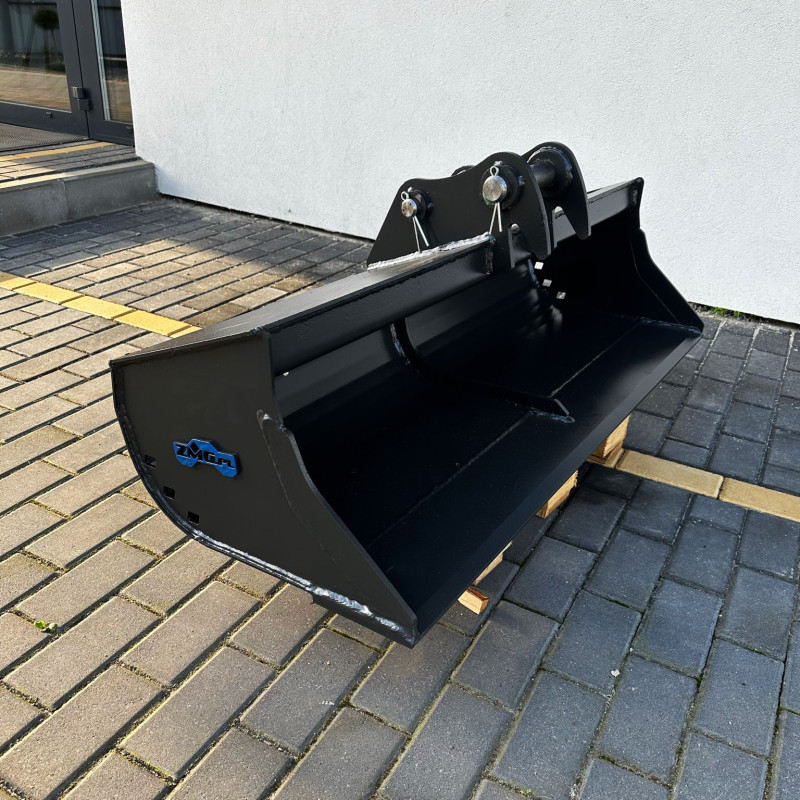

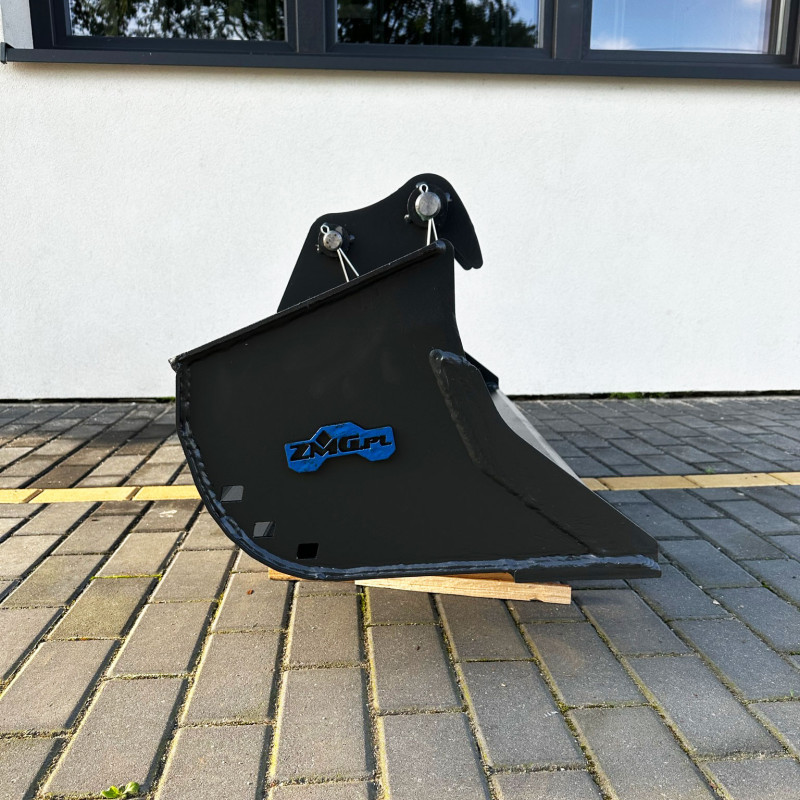

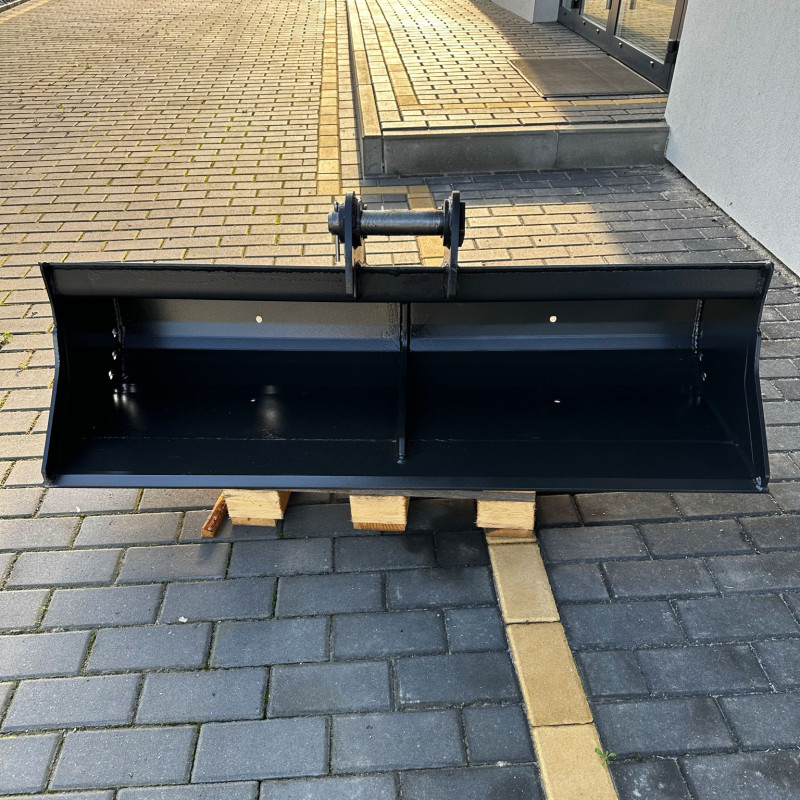

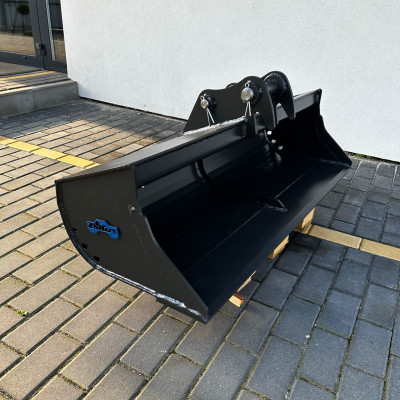

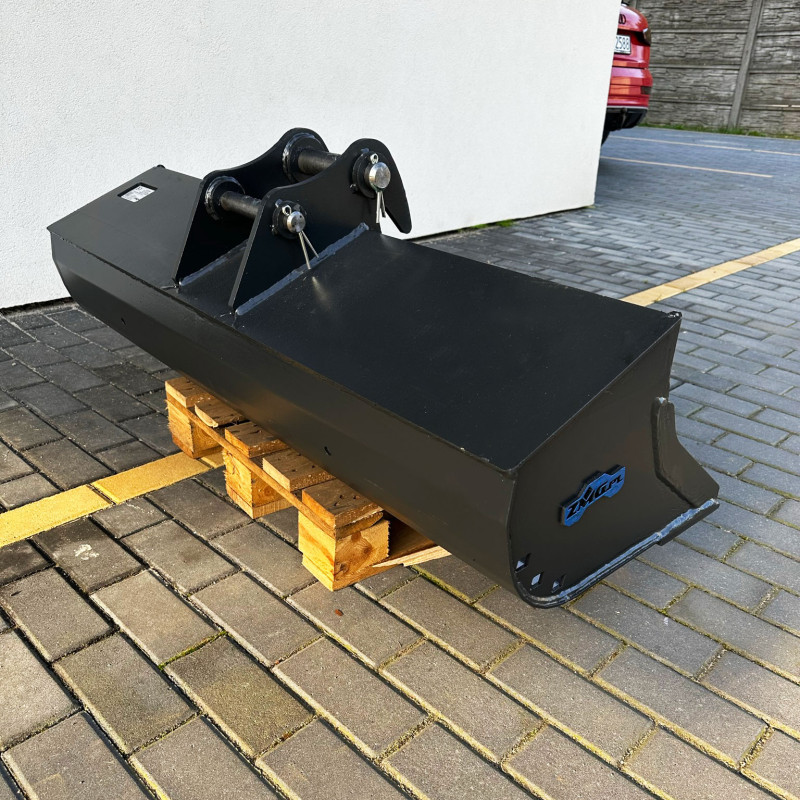

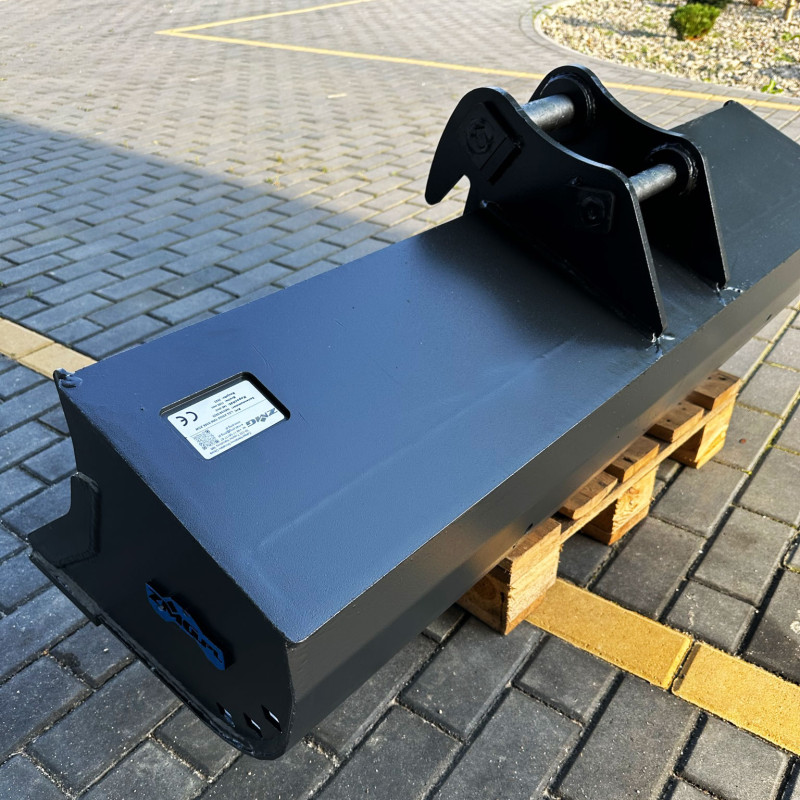

Model LSS-ZMG2-1000-M03 is a 1000 mm ditch cleaning bucket designed for excavators in the 2–4 t class. It enables precise slope profiling, roadside levelling, ditch cleaning, and terrain shaping to required gradients. The Martin M03 adapter (compatible with SW10, CM30) ensures wide compatibility with machines equipped with this popular quick coupler system. Thick steel plate and precisely executed welds guarantee the tool's resistance to deformation and abrasion when working in various soil types.

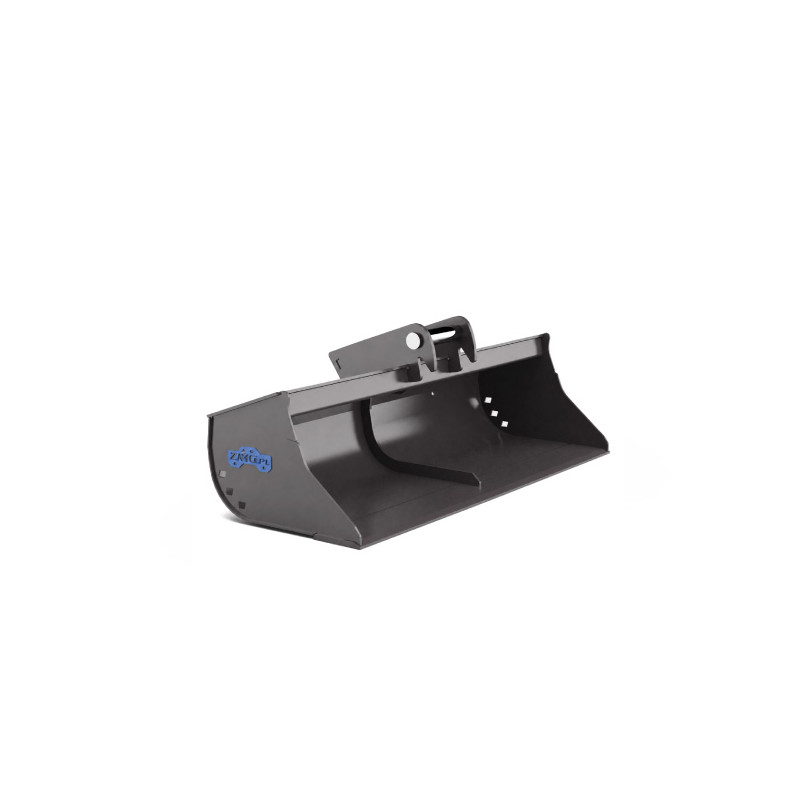

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
