Class: 0-2 T
Width: 800
Adapter: MS01SY

Ditch cleaning bucket 800mm MS01SY class 0-2t

Ditch cleaning bucket 800mm MS01SY class 0-2t

Name: Ditch cleaning bucket 800mm MS01SY class 0-2t
Brand: Kalanto
SKU: TBS-S1-V1-800-MS01SY
Price: 1269.36 PLN
Availability: InStock

1,269.36 zł Tax included

In stock Lead time up to 48 hours

Other models:

Width

Adapter

Adapter parameters

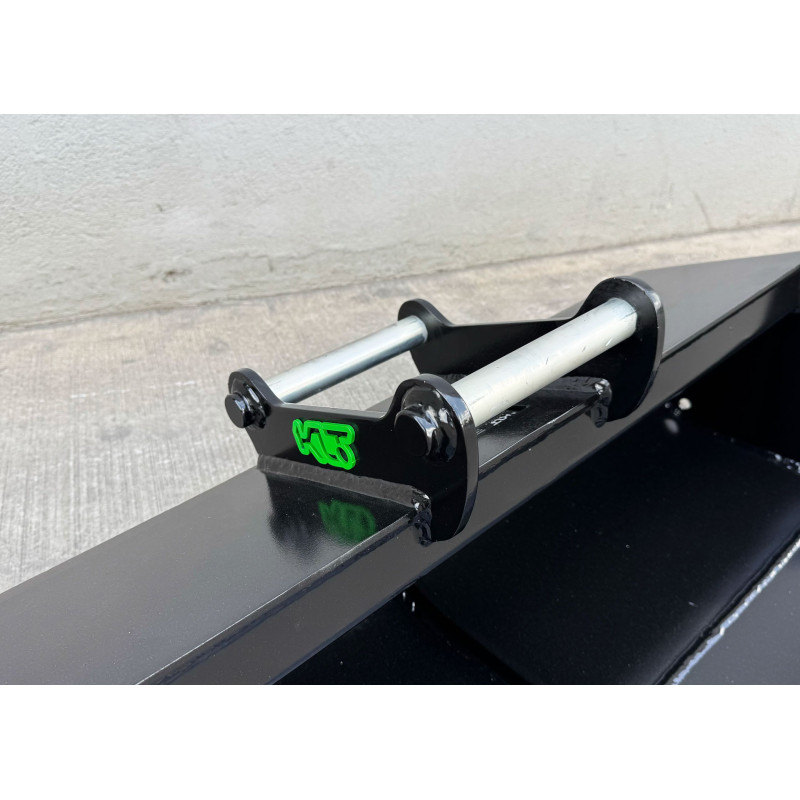

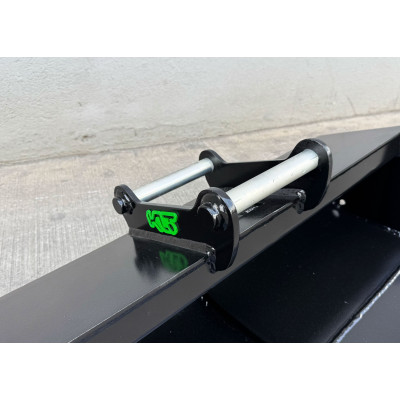

Adapter compatible with the Lehnhoff system- MS01SY-without base plate

Reference: AD-WOP-MS01SY

The AD-WOP-MS01SY adapter, compliant with the MS01SY system, allows fast tool switching without the need for a base plate. It is an ideal option for users seeking maximum functionality, minimal weight, and high versatility.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 0-1, 1-2
Adapter: MS01SY
Side plate: 10 S355
Pin diameter: 40
Inner width: 185
Pin spacing: 255
Weight: 8

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]
800	41	68,5
1000	50	86,5
1200	57	104,5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	12 x 110 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Internal reinforcement:	10mm	S355

Watch video (2)

Alternative products with a different lead time:

up to 3 business weeks Class: 0-2 T ZMG 1,450.17 zł

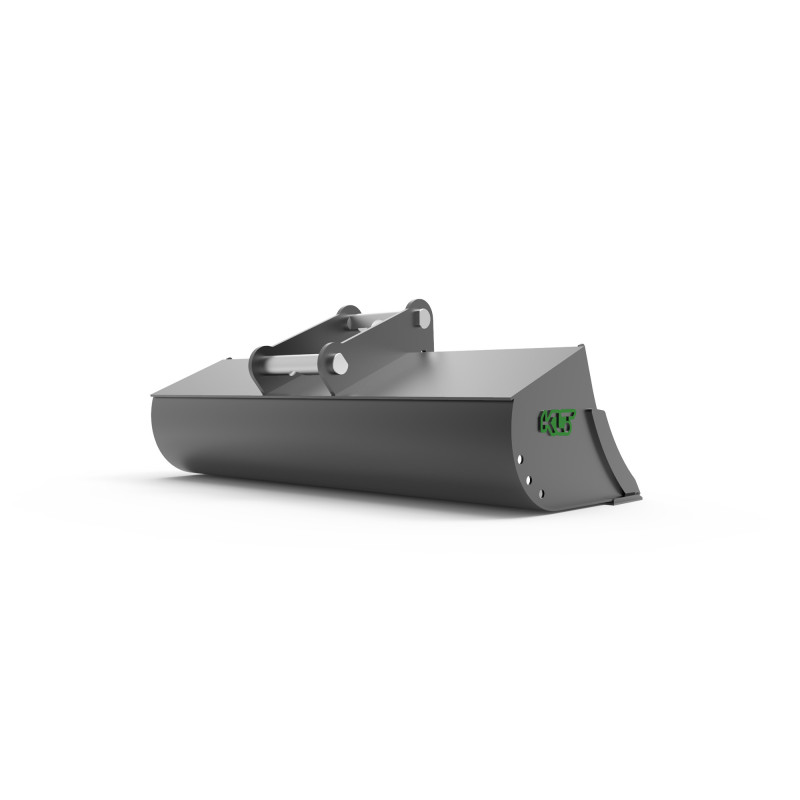

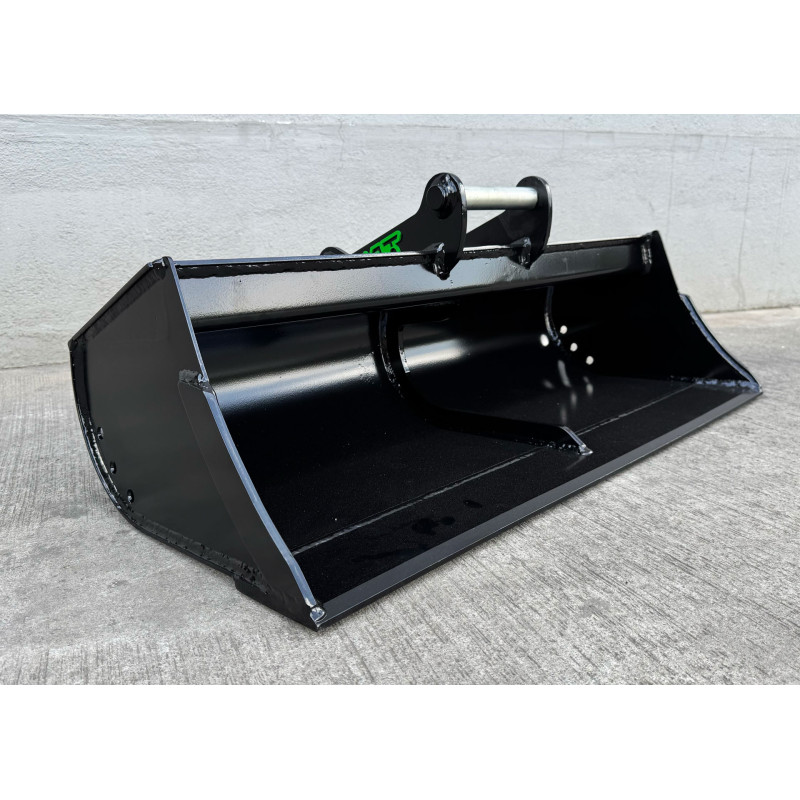

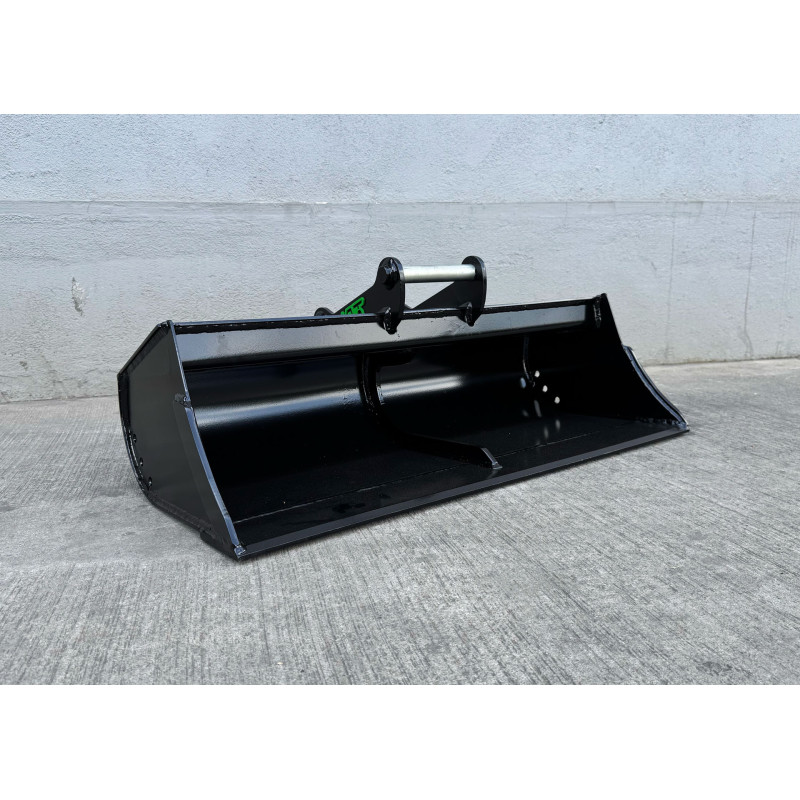

The TBS-S1-V1-800-MS01SY model is a lightweight yet durable ditch-cleaning bucket designed for mini excavators weighing between 0 and 2 tons. Created for precise terrain shaping, it is ideal for forming slopes, leveling surfaces, cleaning ditches and performing finishing or cleanup tasks in hard-to-reach locations.Thanks to its wide shell and well-designed geometry, the TBS-S1 allows for even material distribution and smooth finishing of surfaces.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference TBS-S1-V1-800-MS01SY

Data sheet

Lead time: up to 48 hours
For the machine: 0-1
1-2
Adapter: MS01SY
Width: 800
Weight without adapter: 41
Capacity: 68,5
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 12x110 HB400
Internal reinforcement: 10 S355
Top plate: 5 S355
Bend plate: 5 S355

Specific References

EAN13: 5908159222067

Watch the videos
