- Class: 0-2 T
- Width: 1200
- Adapter: M03
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 46 | 59 |
| 900 | 50 | 70 |
| 1000 | 55 | 75 |
| 1100 | 59 | 83 |
| 1200 | 64 | 91 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |

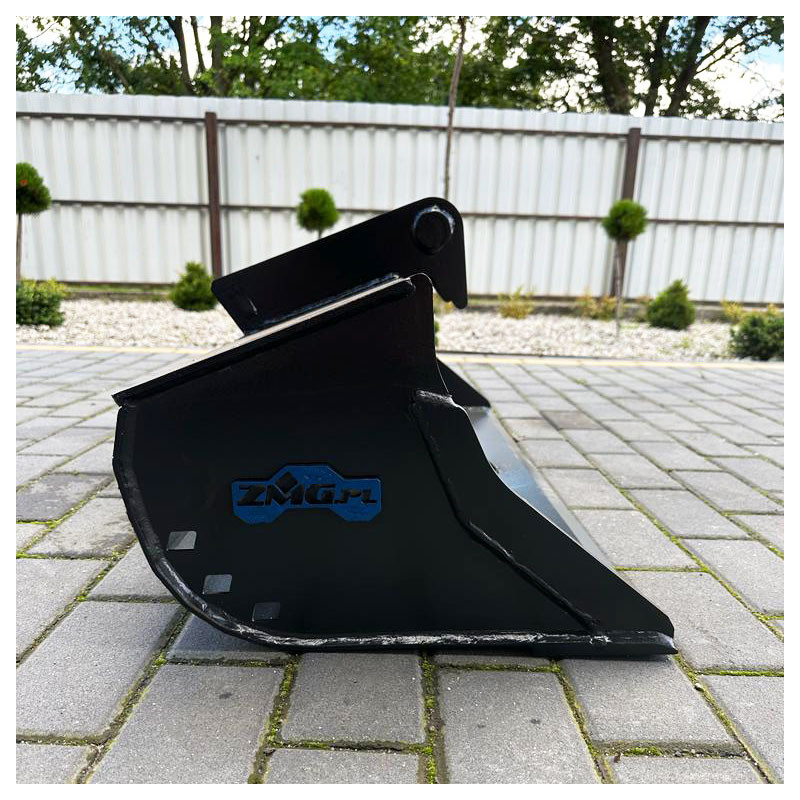

| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |

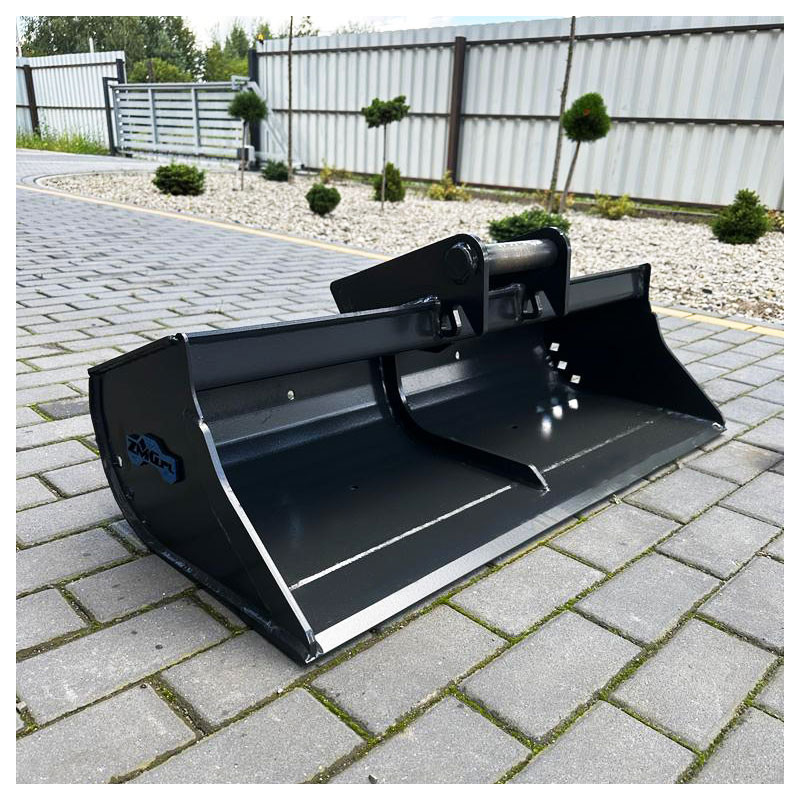

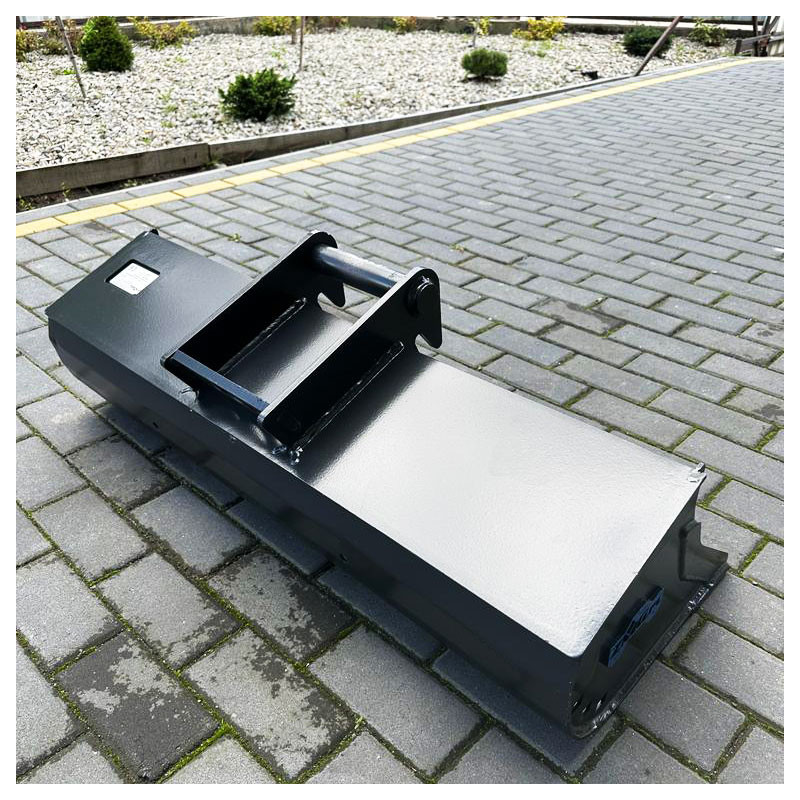

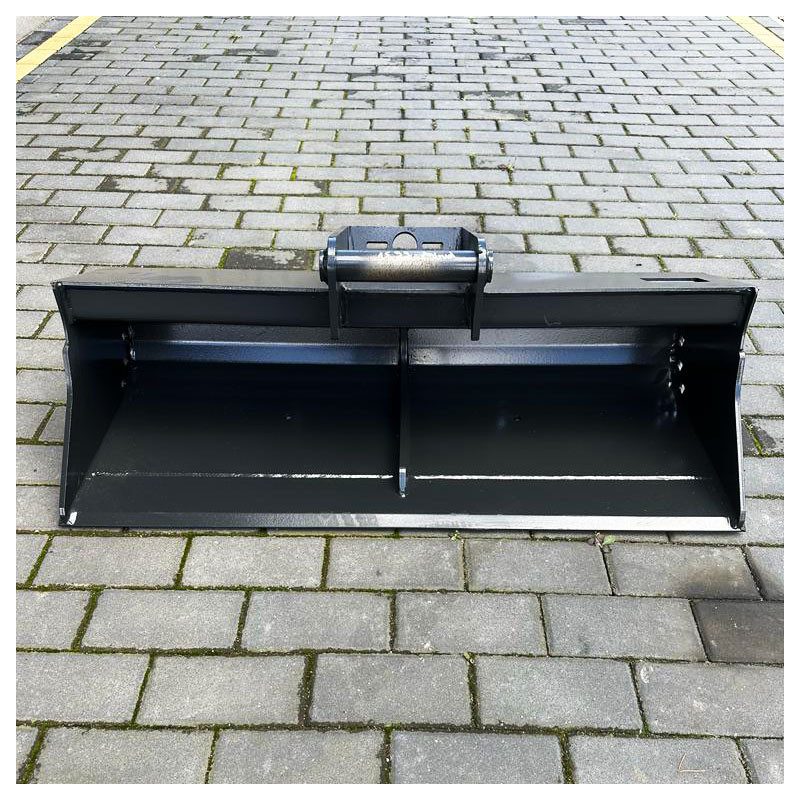

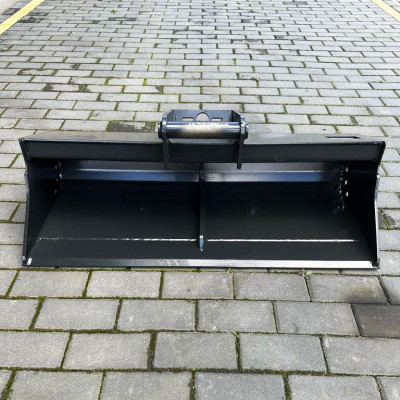

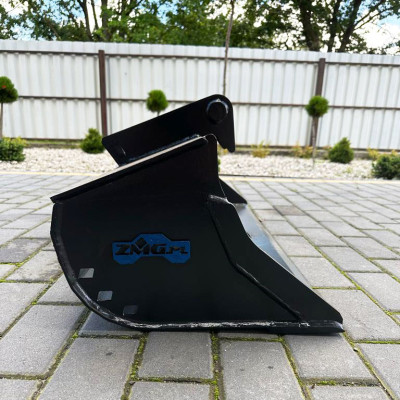

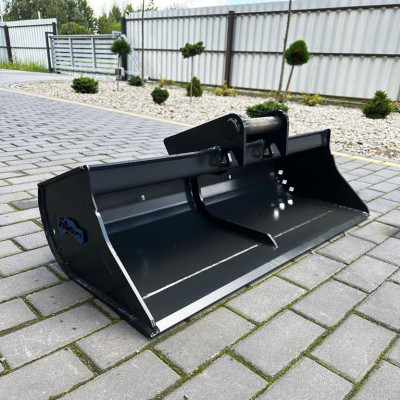

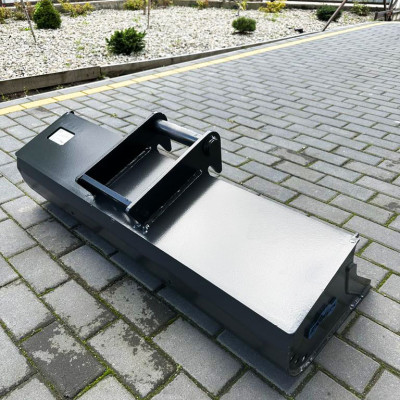

The LSS-ZMG1-1200-M03 series is a 1200 mm ditch cleaning bucket designed for mini and compact excavators up to 2 t. The tool enables efficient slope forming, ditch cross-section shaping, gradient levelling, and any work requiring a flat, even profile. The Martin M03 adapter (compatible with SW10, CM30) ensures wide compatibility with machines equipped with this popular quick coupler system. S355 steel construction and reinforced working edges ensure durability and geometric precision throughout the bucket's service life.

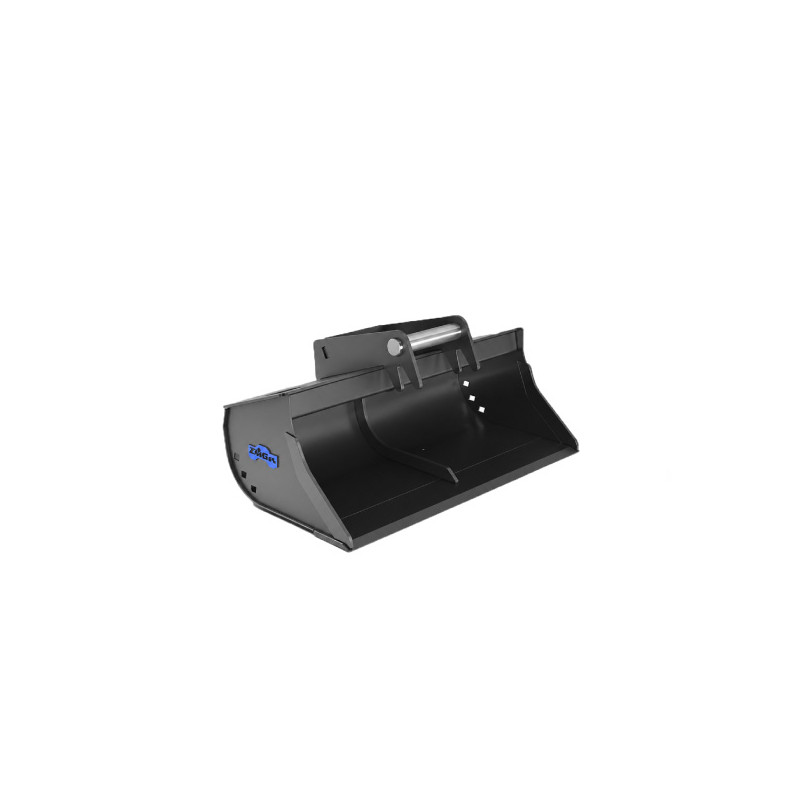

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
