- Class: 4-6 T
- Width: 1300
- Adapter: MS03SY
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 95 | 140 |
| 1100 | 102 | 155 |
| 1200 | 110 | 170 |
| 1300 | 117 | 185 |
| 1400 | 124 | 200 |
| 1500 | 132 | 215 |
| 1600 | 139 | 230 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |

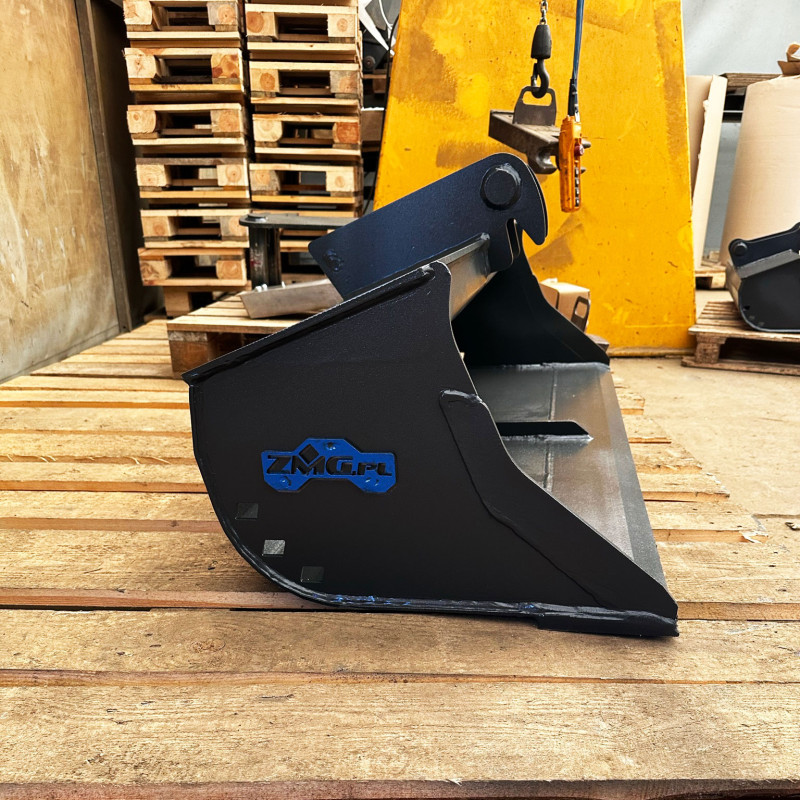

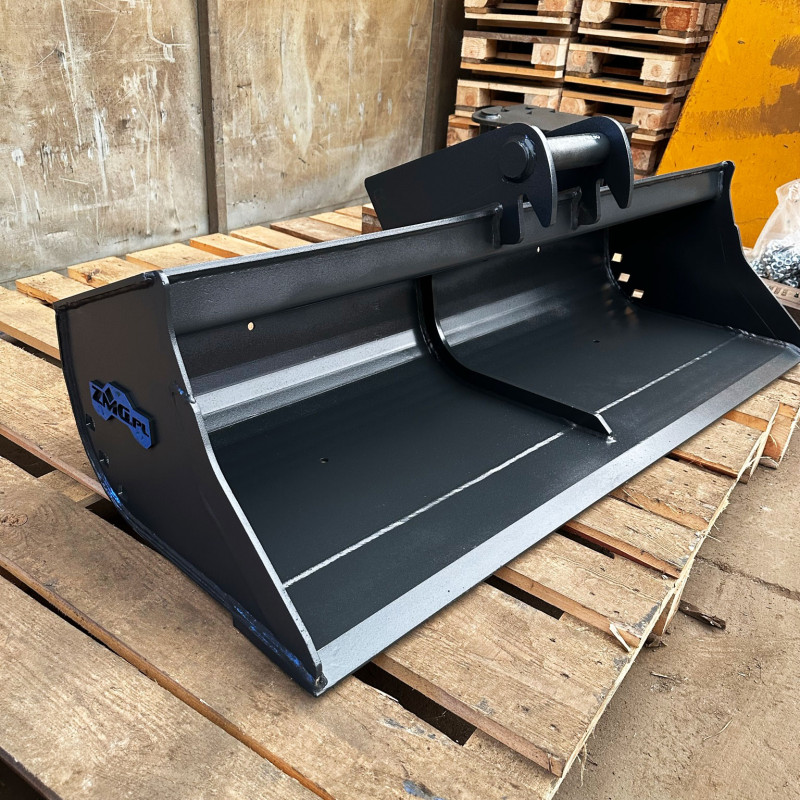

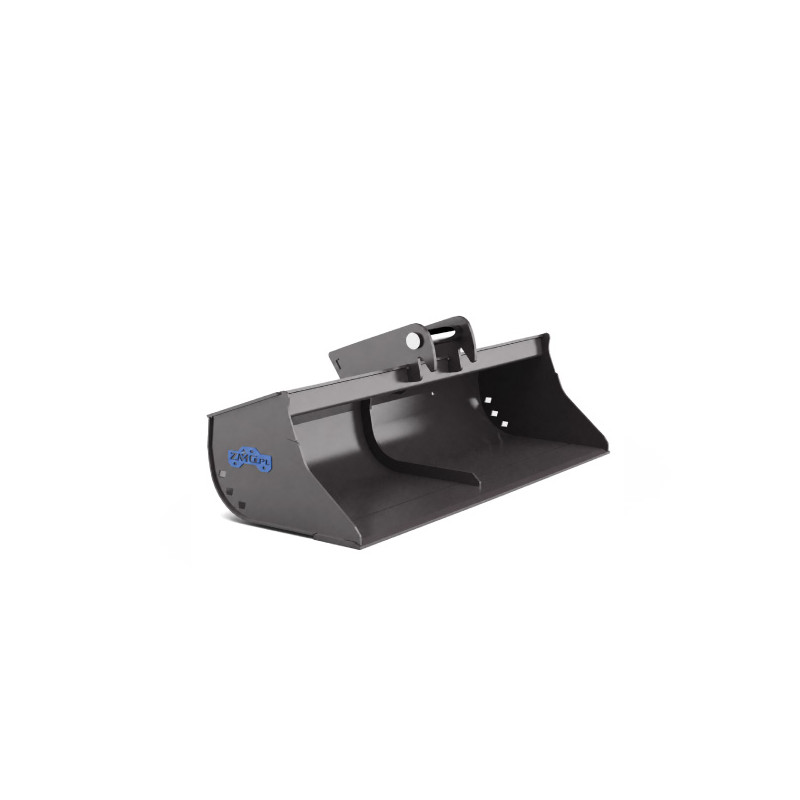

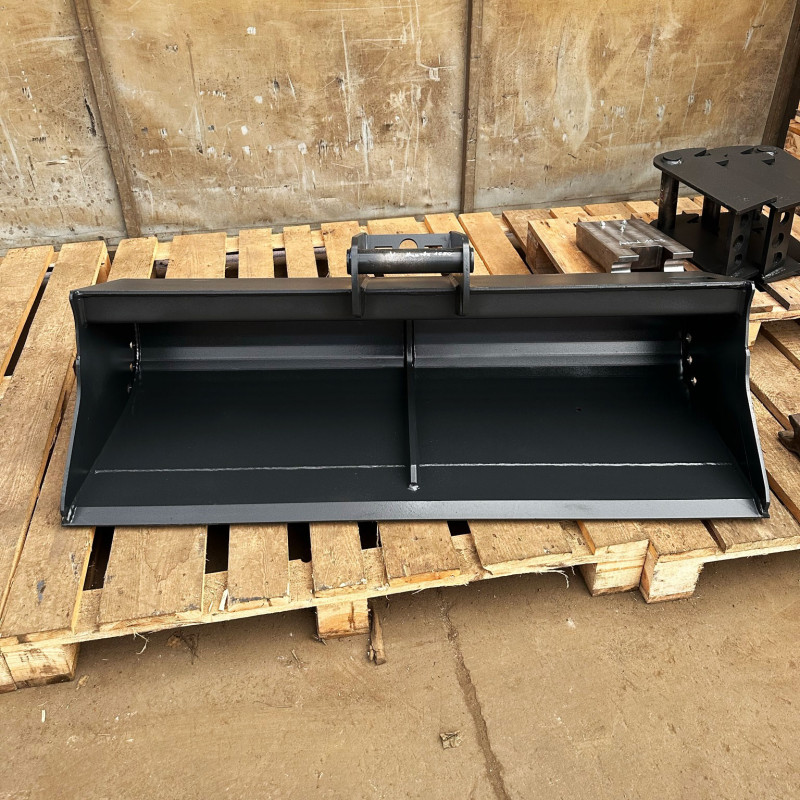

The LSS-ZMG3-1300-MS03SY series is a 1300 mm ditch cleaning bucket designed for medium-class excavators of 4–6 t. The tool enables efficient slope forming, ditch cross-section shaping, gradient levelling, and any work requiring a flat, even profile. The hydraulic Lehnhoff MS03SY quick coupler lets the operator change attachments without leaving the cab, increasing productivity and safety. Thick steel plate and precisely executed welds guarantee the tool's resistance to deformation and abrasion when working in various soil types.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
