- Class: 4-6 T
- Width: 1200
- Adapter: M10
Product catalogues
View and download →
Product catalogues
View and download →
Reference: AD-WP-M10
The AD-WP-M10 is a heavy-duty adapter designed according to the Martin M10 standard and equipped with a reinforced base plate. Suitable for larger excavators, it provides stable attachment, efficient force transfer, and reliable performance during demanding tasks.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| M02 | 30 | 161 | 170 |
| M03 | 35 | 184 | 180 |
| M10 | 50 | 232 | 292 |
*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| M02 | M03 | M10 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 12mm | S355 | 16mm | S355 |
| Base plate: | 16mm | S355 | 16mm | S355 | 20mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 95 | 140 |
| 1100 | 102 | 155 |
| 1200 | 110 | 170 |
| 1300 | 117 | 185 |
| 1400 | 124 | 200 |
| 1500 | 132 | 215 |
| 1600 | 139 | 230 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |

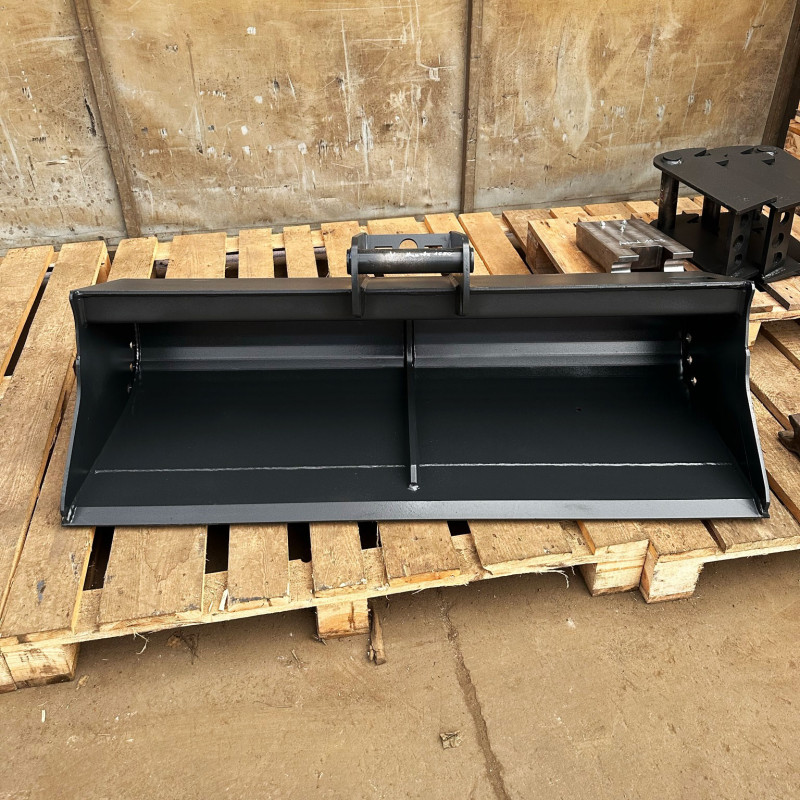

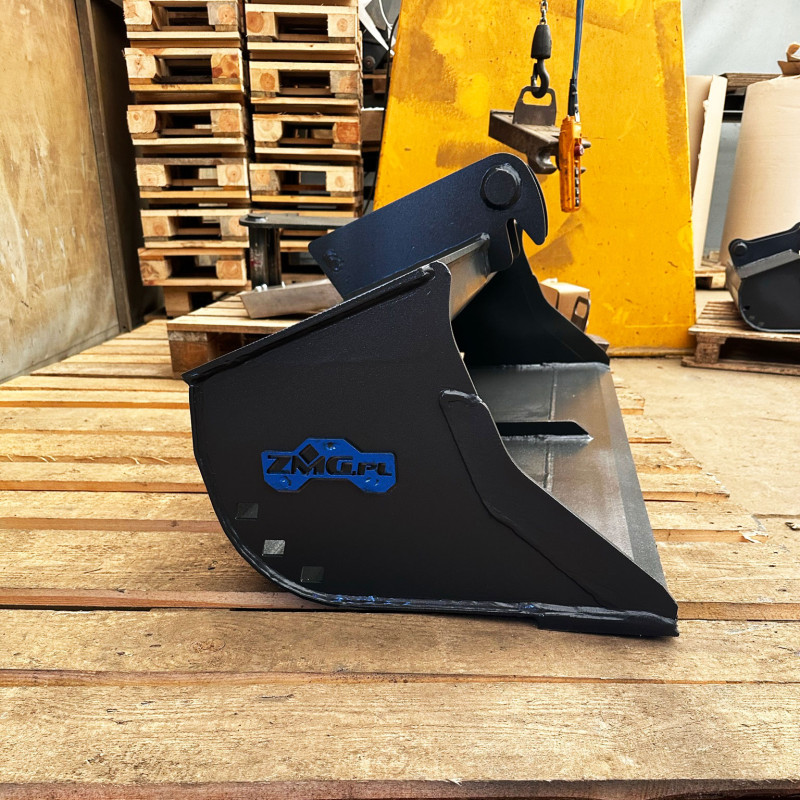

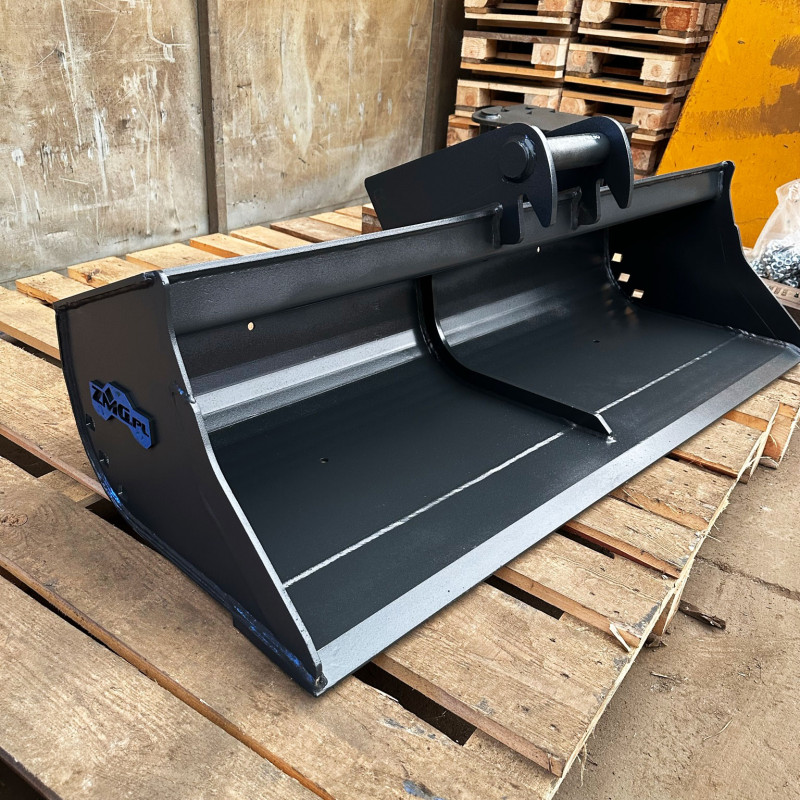

The LSS-ZMG3-1200-M10 ditch cleaning bucket with a working width of 1200 mm is a precision tool designed for medium-class excavators of 4–6 t. It is excellent for slope profiling, cleaning drainage ditches, and shaping terrain along roads and waterways. The MartinM10 adapter ensures M10 system compatibility, allowing seamless attachment mounting on machines equipped with this standard. High-quality S355 steel construction ensures the ditch cleaning bucket maintains accurate working profile geometry over an extended service life.

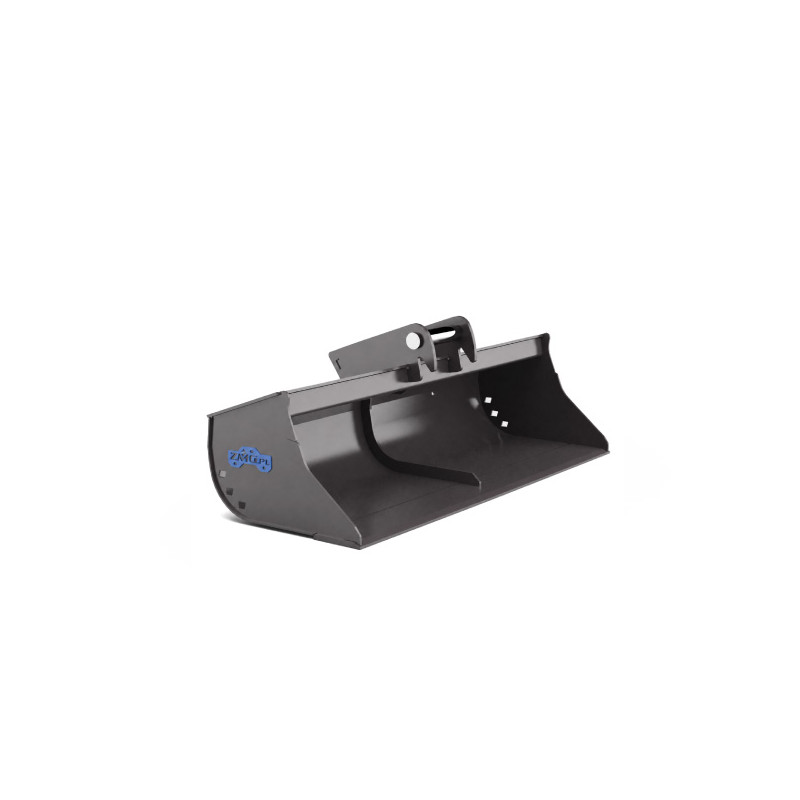

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
