Reference: AD-WOP-MS08SY
Built for the MS08SY system, the AD-WOP-MS08SY is a durable base-plate-free adapter. It provides high precision during attachment and enables rapid tool coupling, significantly reducing retooling time.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 121 | 215 |
| 1300 | 129 | 235 |
| 1400 | 137 | 254 |
| 1500 | 145 | 273 |
| 1600 | 153 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |

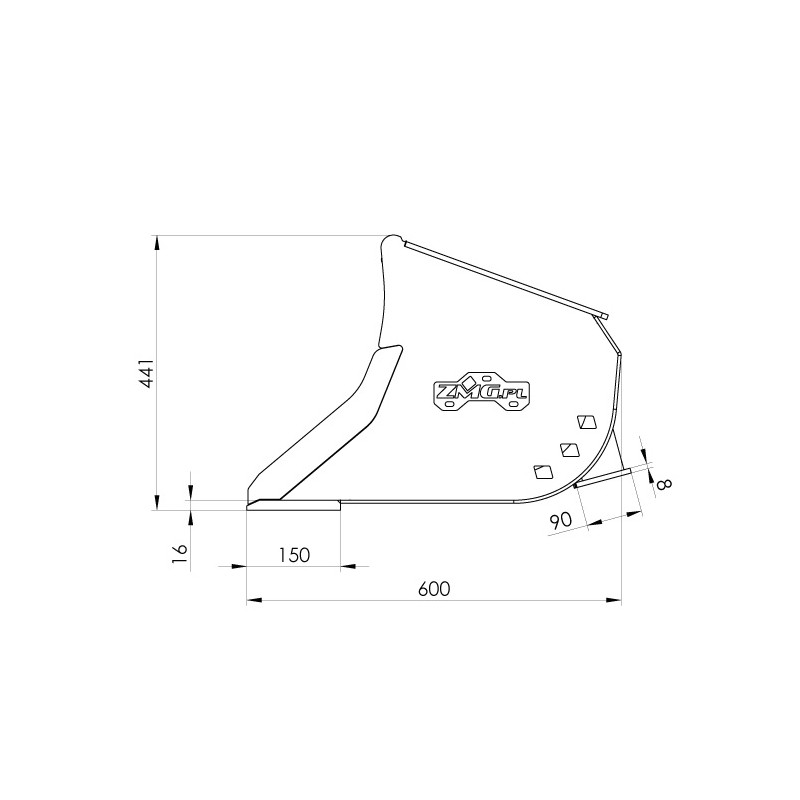

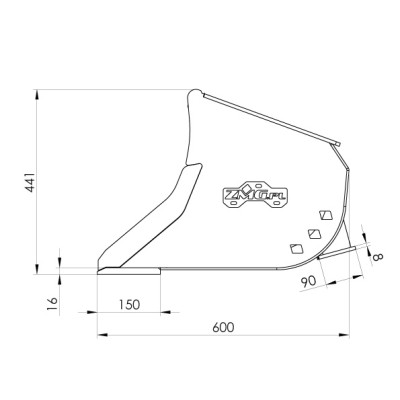

Model LSS-ZMG4-1500-MS08SY is a 1500 mm ditch cleaning bucket designed for excavators in the 6–10 t class. It enables precise slope profiling, roadside levelling, ditch cleaning, and terrain shaping to required gradients. The hydraulic Lehnhoff MS08SY quick coupler enables operators to swap heavy attachments directly from the cab, eliminating manual coupling and improving safety. Thick steel plate and precisely executed welds guarantee the tool's resistance to deformation and abrasion when working in various soil types.

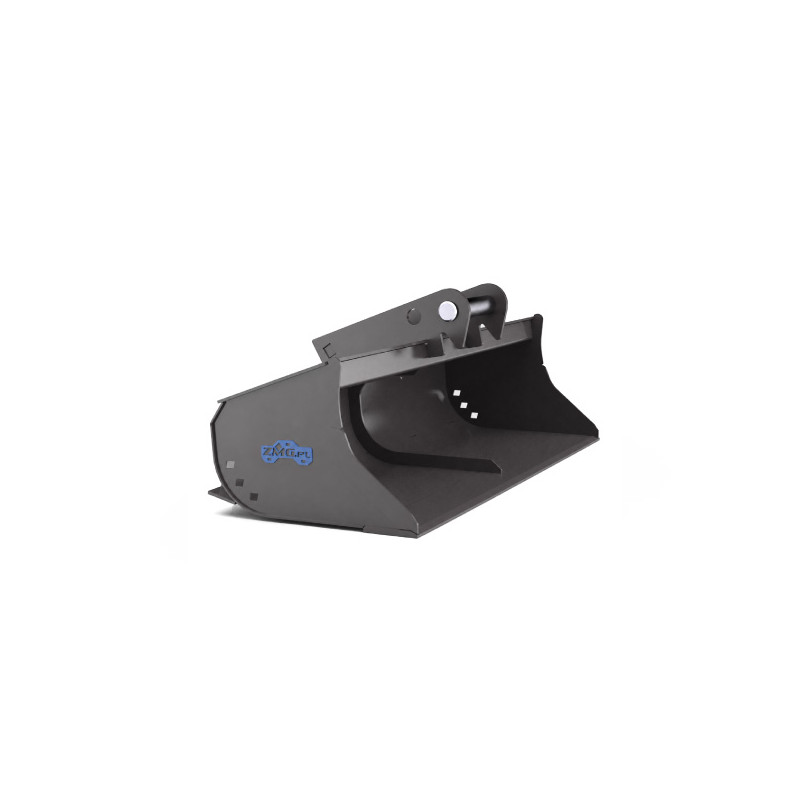

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
