- Class: 6-10 T
- Width: 1300
- Adapter: S45
Product catalogues
View and download →
Product catalogues
View and download →
Reference: AD-WOP-S45
The AD-WOP-S45 model designed for the S45 system offers a stable connection without the need for a base plate. Lightweight yet durable, it enables fast tool changes and increases the machine’s versatility.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| S30/150 | 30 | 152 | 200,5 |
| S30/180 | 30 | 182 | 230,5 |
| S40 | 40 | 202 | 300,5 |
| S45 | 45 | 292 | 430,5 |
| S50 | 50 | 272 | 430,5 |
| S60 | 60 | 342 | 480,5 |
| S70 | 70 | 452 | 600,5 |
The main components are made of the following materials and thicknesses:
| S30/150 | S30/180 | S40 | S45 | S50 | S60 | S70 | ||||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 20mm | S355 | 32mm | S355 | 32mm | S355 | 40mm | S355 | 50mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 121 | 215 |
| 1300 | 129 | 235 |
| 1400 | 137 | 254 |
| 1500 | 145 | 273 |
| 1600 | 153 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |

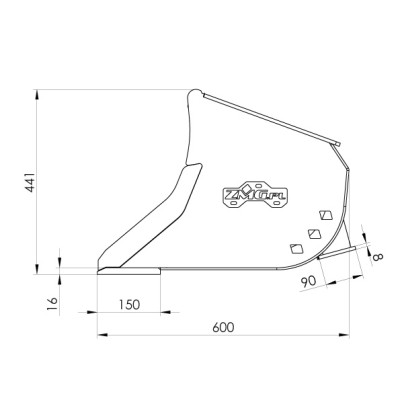

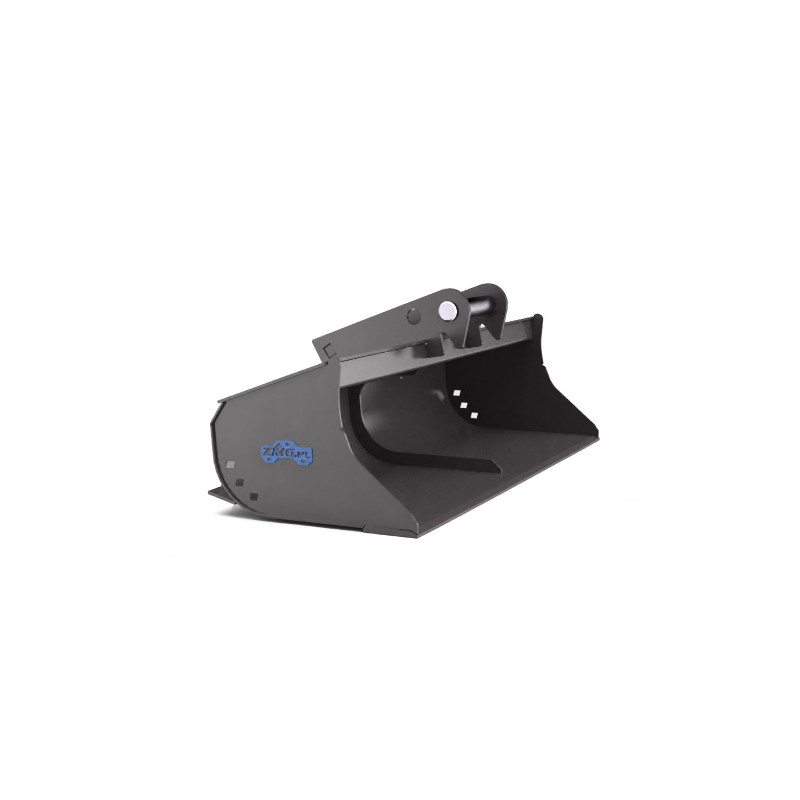

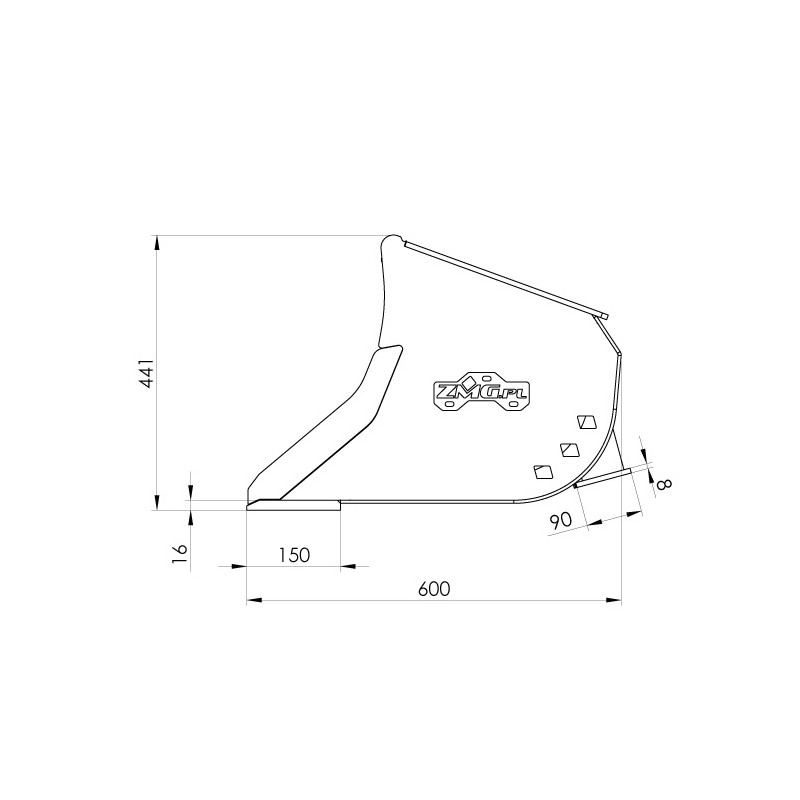

The LSS-ZMG4-1300-S45 ditch cleaning bucket, 1300 mm wide, is a tool created for excavators in the 6–10 t class. It excels at finish grading on slopes, cleaning drainage channels, and achieving cross-sections to specified dimensions. The S45 adapter is designed for large machines with the S45 standard, providing secure and durable mounting of heavy attachments. Thick steel plate and precisely executed welds guarantee the tool's resistance to deformation and abrasion when working in various soil types.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
