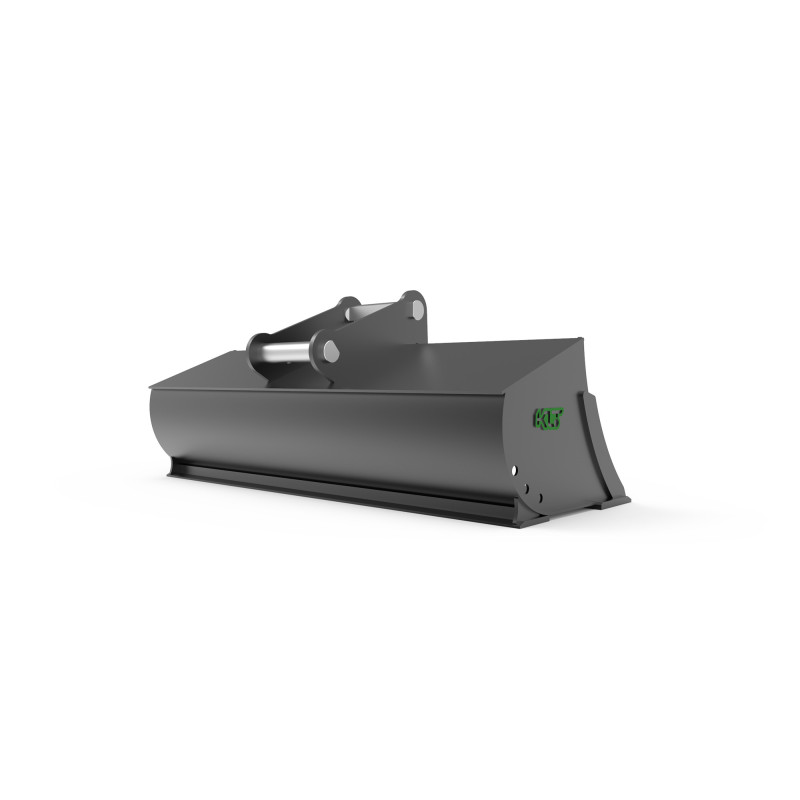

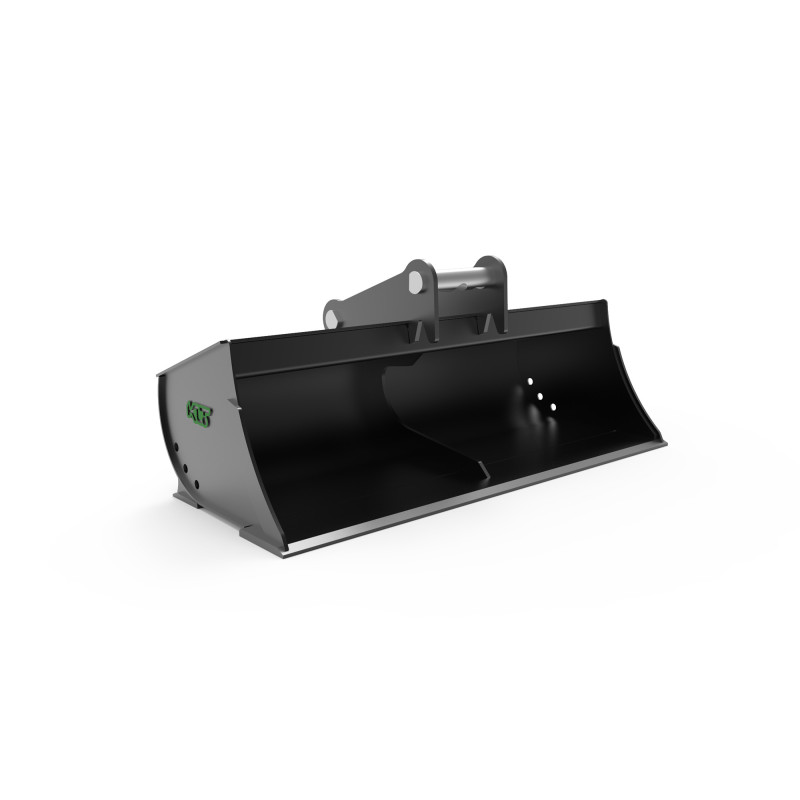

Ditch cleaning bucket 1400mm S40 class 3-4t
3,252.12 zł
Tax included
The TBS-S3-V1-1400-S40-RB is a professional grading bucket designed for excavators weighing 3–4 tons. Created for tasks requiring excellent finishing quality and precise control, it allows fast ground leveling, shaping wide slopes and effective ditch or shoulder cleaning. Its wear-resistant steel construction provides long-lasting durability while maintaining low to moderate weight. The curved bucket shell ensures smooth material spreading and helps achieve a clean, uniform final finish without reworking.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 109 | 162 |
| 1400 | 125 | 191,3 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S3-V1-1400-S40-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- S40
- Width
- 1400mm
- Weight without adapter
- 125kg
- Capacity
- 191,3 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 6mm S355
- Bend plate
- 6mm S355
