- Class: 4-6 T
- Width: 1300
- Adapter: CW10
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 95 | 140 |
| 1100 | 102 | 155 |
| 1200 | 110 | 170 |
| 1300 | 117 | 185 |
| 1400 | 124 | 200 |
| 1500 | 132 | 215 |
| 1600 | 139 | 230 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |

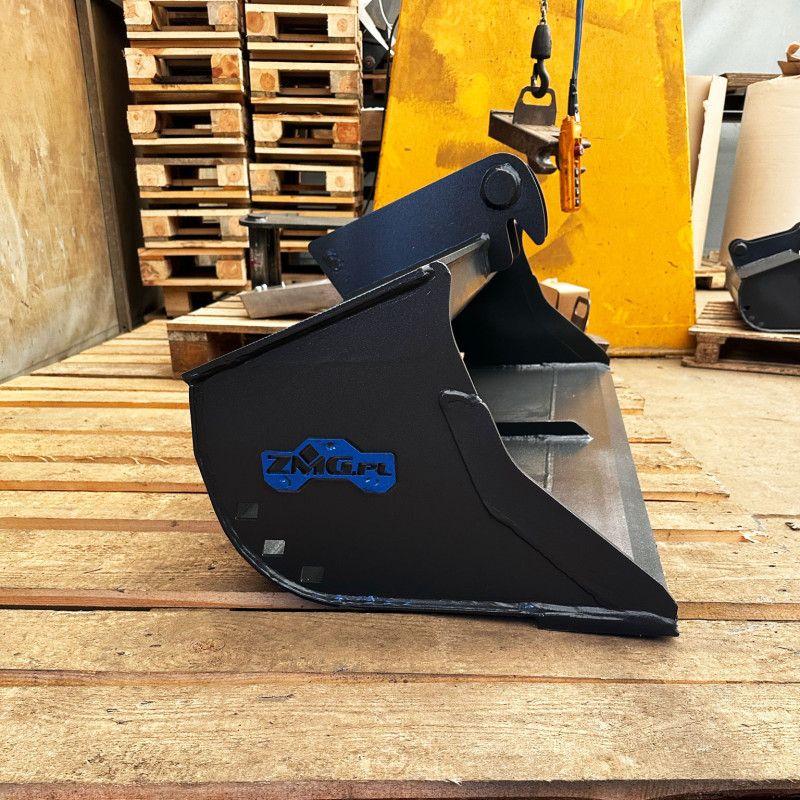

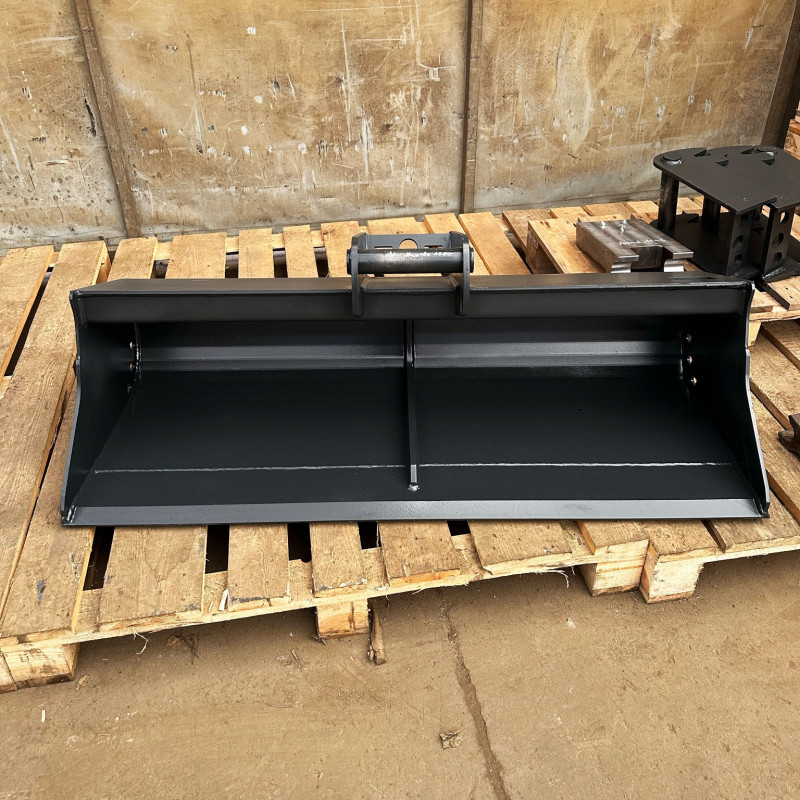

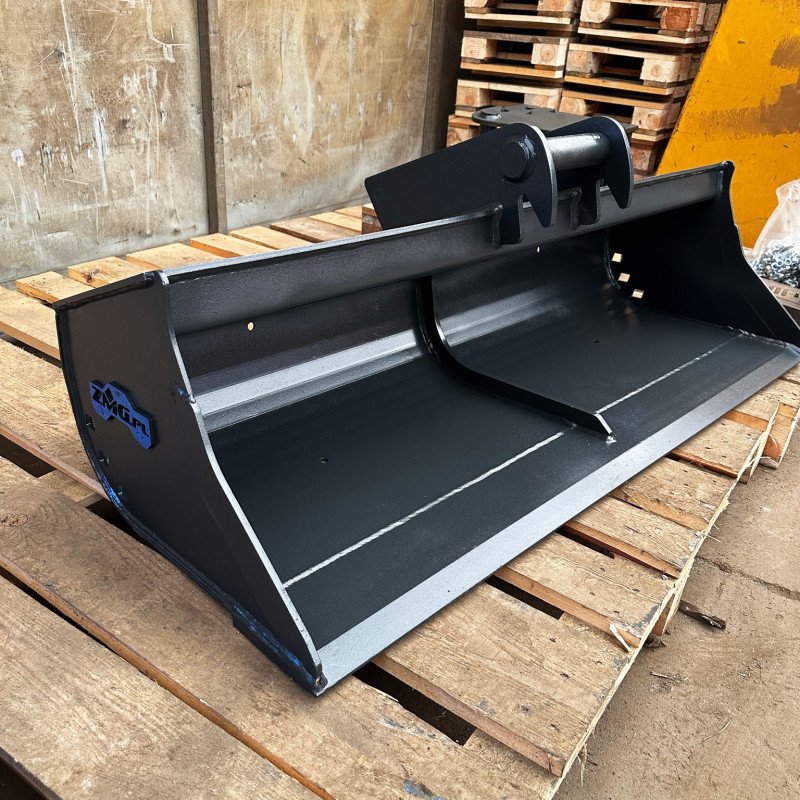

The LSS-ZMG3-1300-CW10 is a 1300 mm ditch cleaning bucket dedicated to medium-class excavators of 4–6 t. Its flat profile ensures precision in slope forming, terrain levelling, ditch cleaning, and road construction and maintenance work. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. S355 steel construction and reinforced working edges ensure durability and geometric precision throughout the bucket's service life.

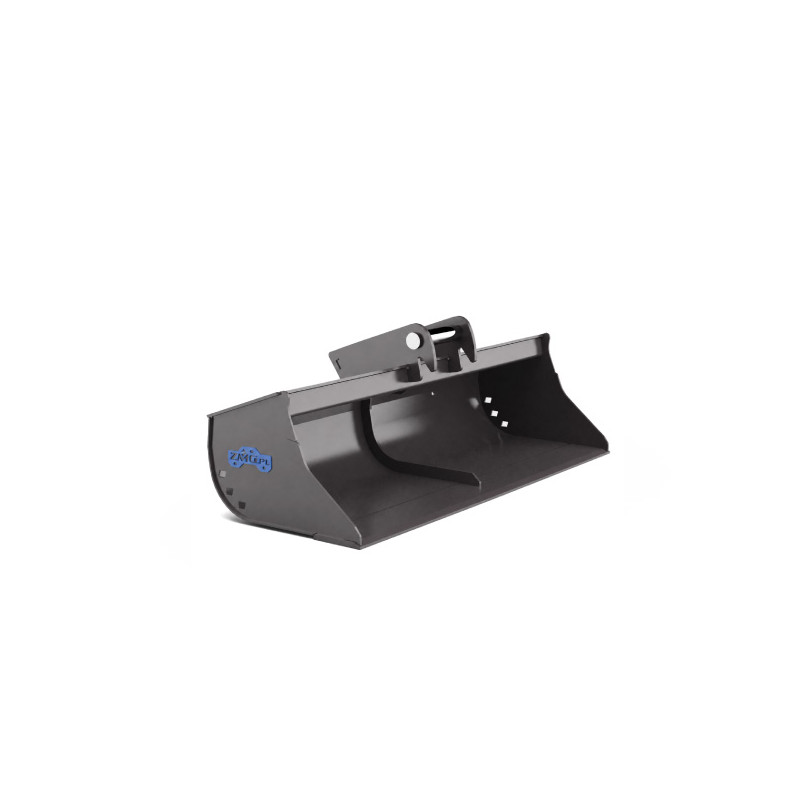

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
