Ditch cleaning bucket 1600mm MS03SY class 4-6t
3,915.09 zł
Tax included
The TBS-S4-V1-1600-MS03SY-RB bucket is engineered for operators requiring high efficiency when working with 4–6-ton excavators. The increased working width makes it ideal for leveling larger areas, shaping slopes, maintaining ditches and performing cleanup operations on extensive job sites. Its deep, wide shell combined with a gentle curvature ensures fast and accurate spreading of soil or aggregate. High-grade steel construction with reinforced structural points guarantees longevity and dependable performance even during intensive use.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1400 | 136 | 221,5 |
| 1600 | 154 | 255,5 |
* The given bucket weight does not include the weight of the adapter.

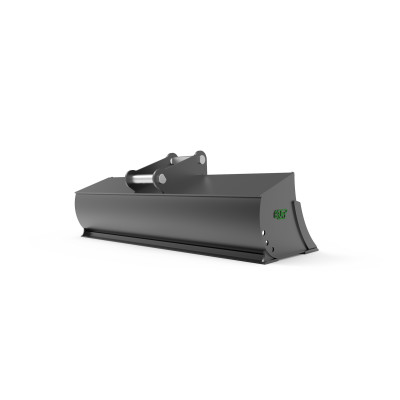

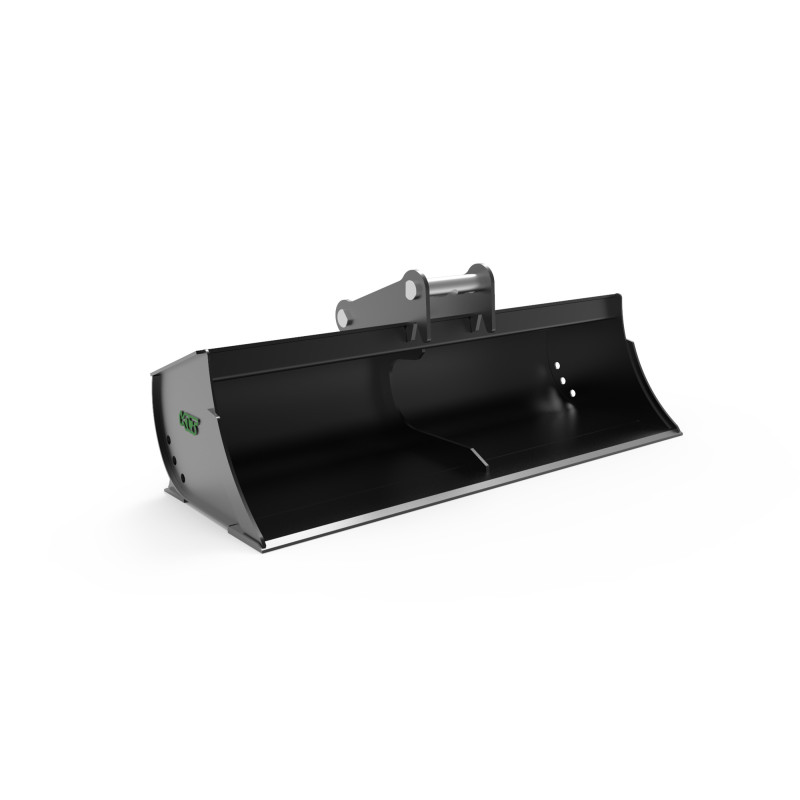

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S4-V1-1600-MS03SY-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t - Adapter
- MS03SY
- Width
- 1600mm
- Weight without adapter
- 154kg
- Capacity
- 255,5 l
- Side/rear plate
- 6mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 8mm S355
- Bend plate
- 6mm S355
