- Class: 6-10 T
- Width: 1200
- Adapter: CW10
Product catalogues
View and download →
Product catalogues
View and download →
Reference: AD-WOP-CW10
The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 121 | 215 |
| 1300 | 129 | 235 |
| 1400 | 137 | 254 |
| 1500 | 145 | 273 |
| 1600 | 153 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |

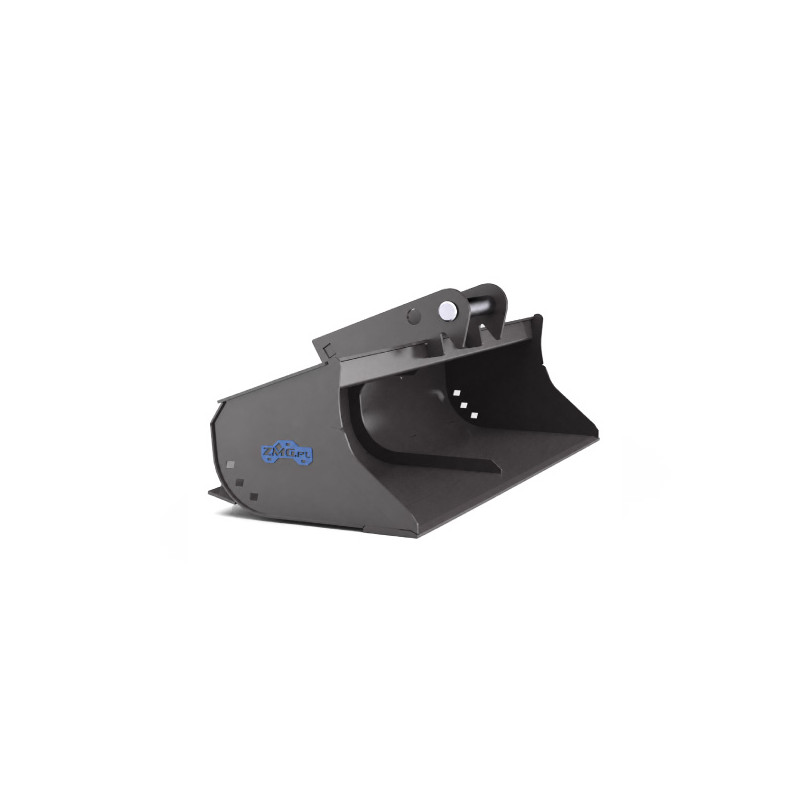

Model LSS-ZMG4-1200-CW10 is a 1200 mm ditch cleaning bucket designed for excavators in the 6–10 t class. It enables precise slope profiling, roadside levelling, ditch cleaning, and terrain shaping to required gradients. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. Thick steel plate and precisely executed welds guarantee the tool's resistance to deformation and abrasion when working in various soil types.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
