- Class: 0-2 T
- Width: 1200
- Adapter: S30/180
- -5%
Reference: AD-WOP-S30/180
AD-WOP-S30/180 is a lightweight, base-plate-free adapter fully compatible with the Volvo S30/180 system. Its solid build and fast tool mounting increase flexibility and productivity on the job site.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| S30/150 | 30 | 152 | 200,5 |
| S30/180 | 30 | 182 | 230,5 |
| S40 | 40 | 202 | 300,5 |
| S45 | 45 | 292 | 430,5 |
| S50 | 50 | 272 | 430,5 |
| S60 | 60 | 342 | 480,5 |
| S70 | 70 | 452 | 600,5 |
The main components are made of the following materials and thicknesses:
| S30/150 | S30/180 | S40 | S45 | S50 | S60 | S70 | ||||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 20mm | S355 | 32mm | S355 | 32mm | S355 | 40mm | S355 | 50mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 41 | 68,5 |
| 1000 | 50 | 86,5 |
| 1200 | 57 | 104,5 |
* The given bucket weight does not include the weight of the adapter.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 x 110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |

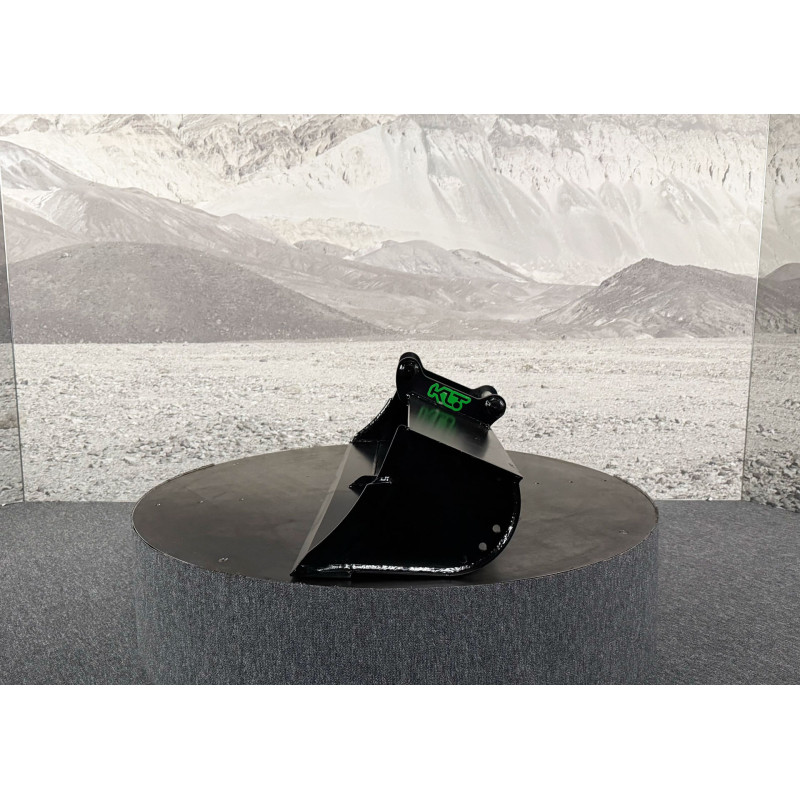

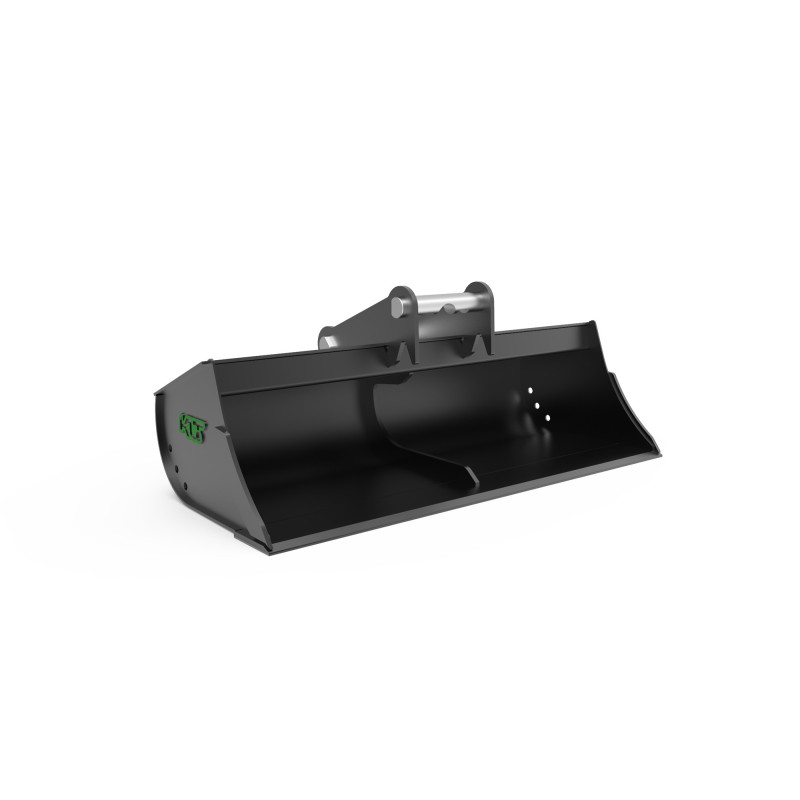

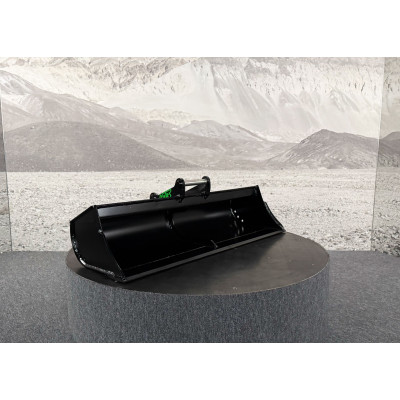

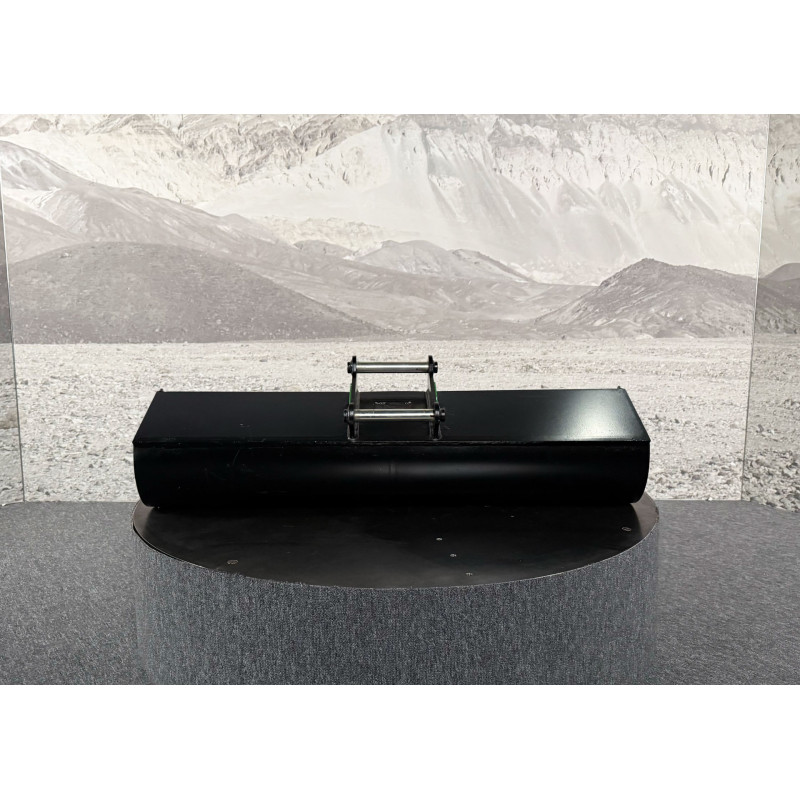

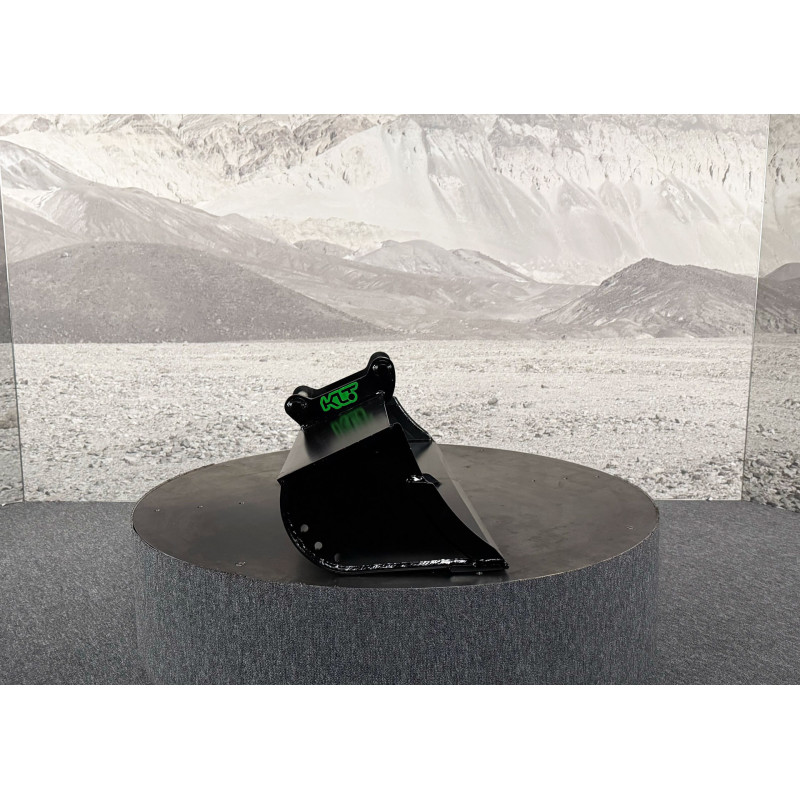

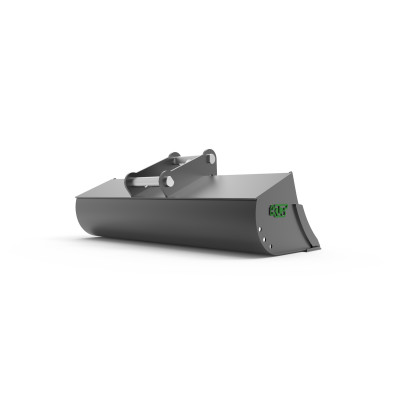

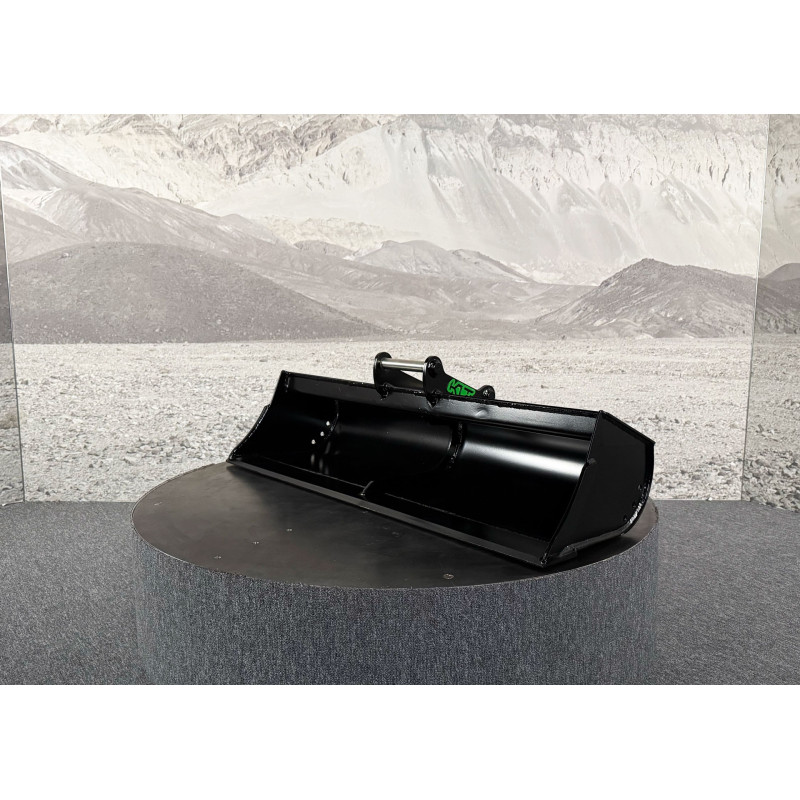

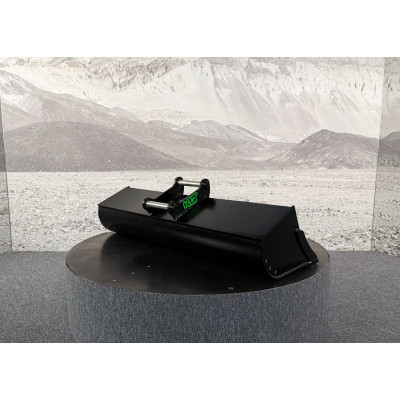

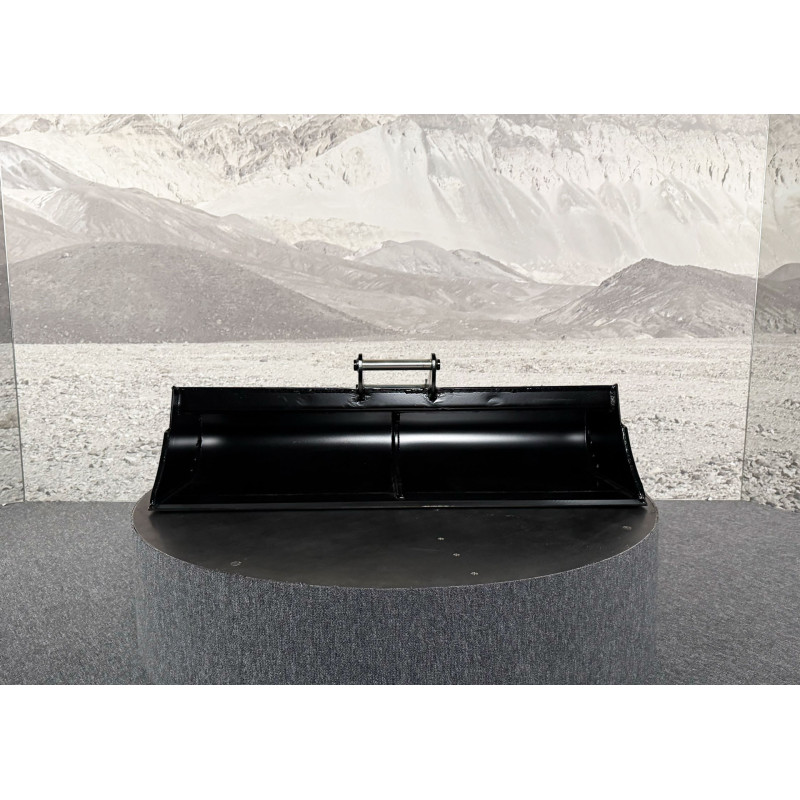

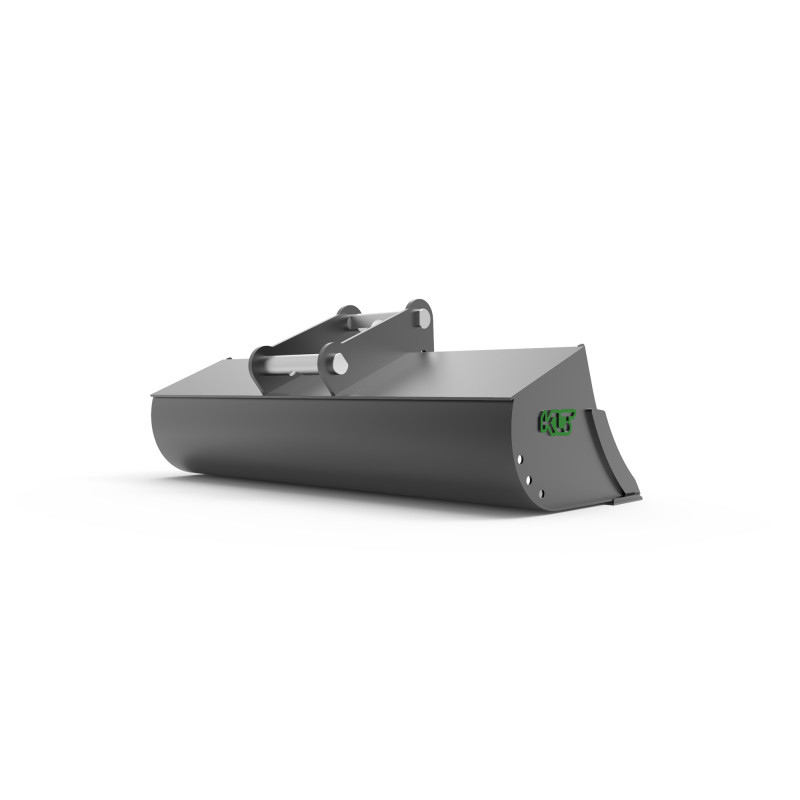

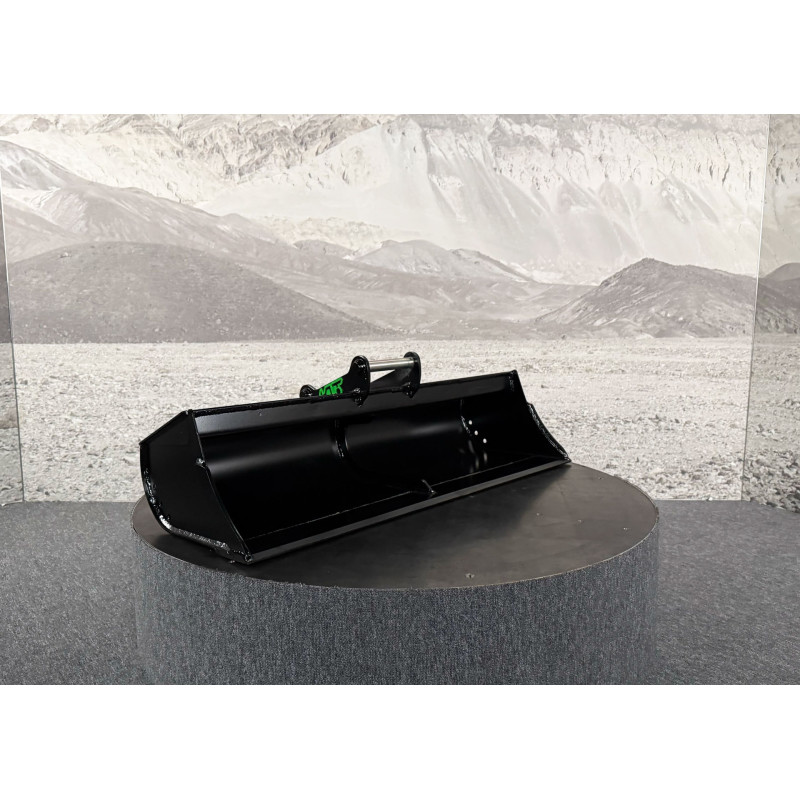

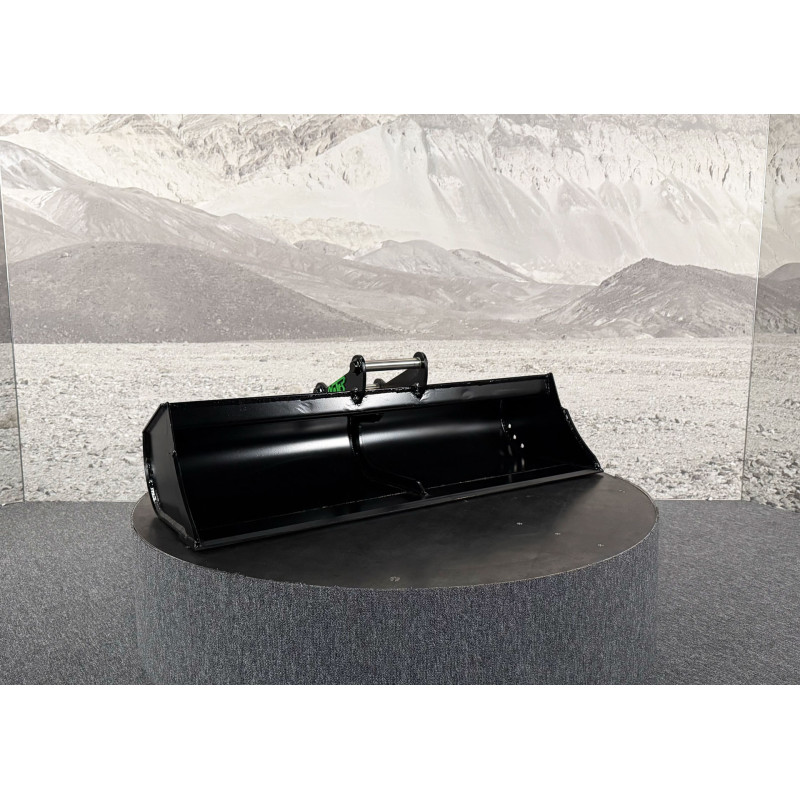

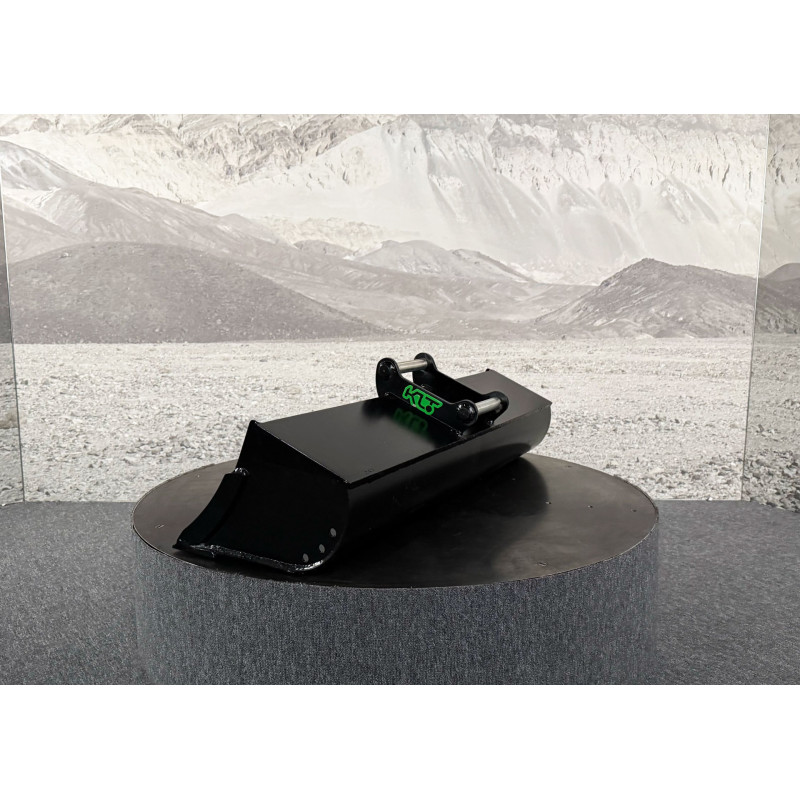

The TBS-S1-V1-1200-S30/180 is a professional ditch-cleaning bucket made for 0–2-ton mini excavators and intended for heavy-duty profiling and finishing tasks. Its wide shell enables quick surface shaping and even distribution of material. Constructed from wear-resistant steel, it offers long service life, while the lightweight build improves maneuverability and reduces hydraulic load, making it highly efficient in daily excavation and landscaping work.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
