- Class: 3-4 T
- Width: 1200
- Adapter: S40
- -5%
Reference: AD-WOP-S40
AD-WOP-S40 is a base-plate-free design created for the Volvo S40 system. It provides quick, secure tool mounting and excellent load resistance, making it reliable for demanding construction work.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| S30/150 | 30 | 152 | 200,5 |
| S30/180 | 30 | 182 | 230,5 |
| S40 | 40 | 202 | 300,5 |
| S45 | 45 | 292 | 430,5 |
| S50 | 50 | 272 | 430,5 |
| S60 | 60 | 342 | 480,5 |
| S70 | 70 | 452 | 600,5 |
The main components are made of the following materials and thicknesses:
| S30/150 | S30/180 | S40 | S45 | S50 | S60 | S70 | ||||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 20mm | S355 | 32mm | S355 | 32mm | S355 | 40mm | S355 | 50mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 109 | 162 |
| 1400 | 125 | 191,3 |
* The given bucket weight does not include the weight of the adapter.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |

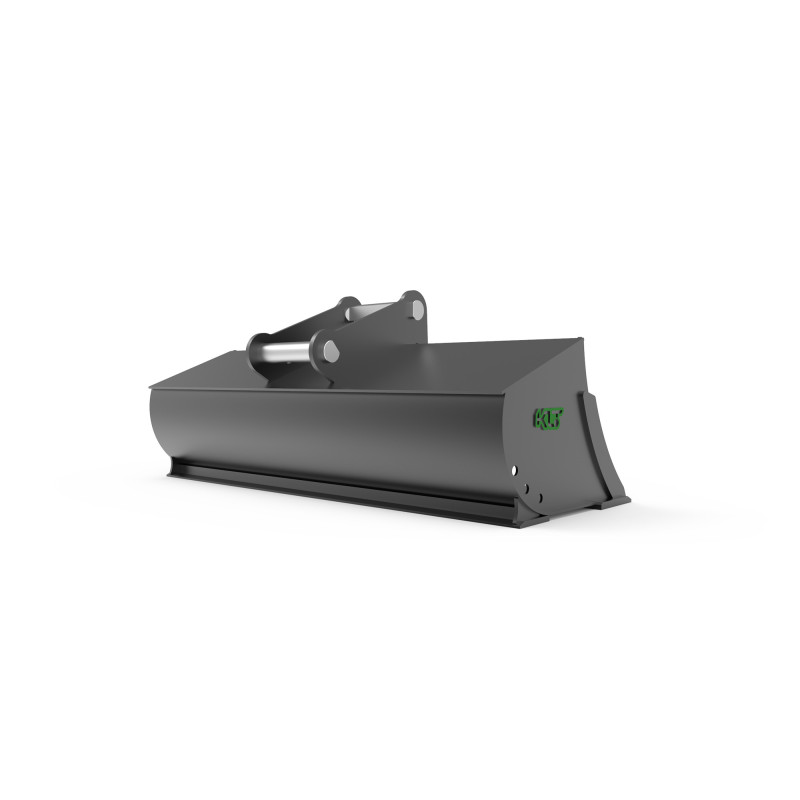

The TBS-S3-V1-1200-S40-RB is a durable ditch-cleaning bucket intended for 3–4-ton excavators and designed for precision finishing and profiling tasks. It performs exceptionally well when leveling terrain, shaping slopes, backfilling trenches or cleaning roadsides and ditches. Built from high-strength, wear-resistant steel, it offers long service life and stable operation. The wide, well-profiled shell with the proper bending radius ensures smooth material distribution, producing clean and even surfaces without additional touch-ups.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

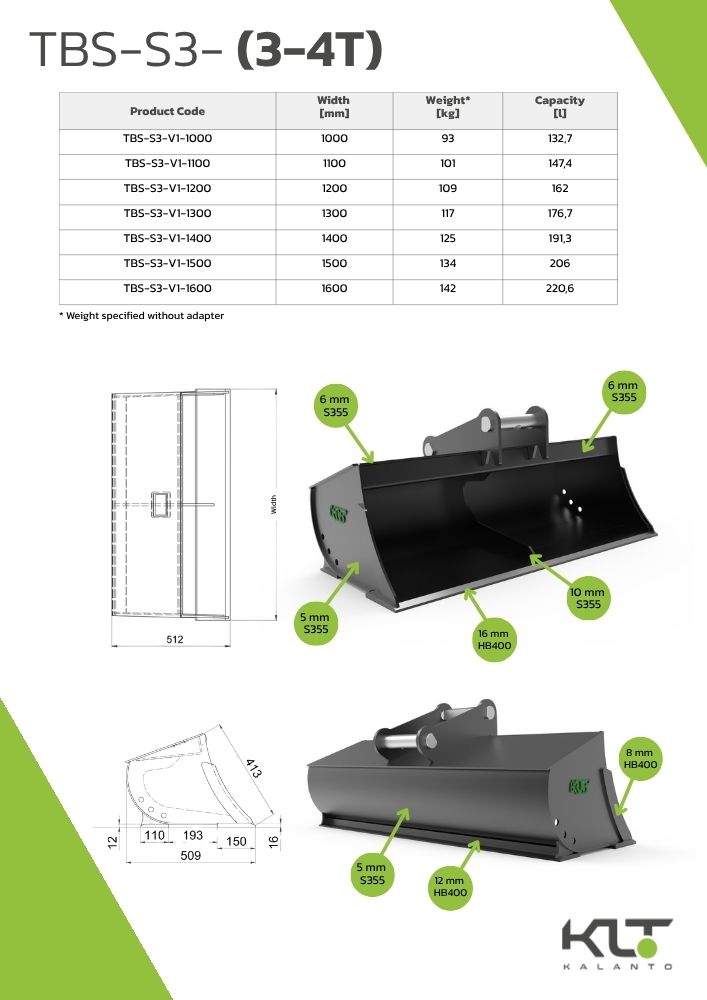

Data sheet
