Class: 6-10 T
Width: 1300
Adapter: M10

Ditch cleaning bucket 1300mm M10 class 6-10t

Ditch cleaning bucket 1300mm M10 class 6-10t

Name: Ditch cleaning bucket 1300mm M10 class 6-10t
Brand: ZMG
SKU: LSS-ZMG4-1300-M10
Price: 3485.82 PLN
Availability: InStock

3,485.82 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Martin system- M10 with base plate

Reference: AD-WP-M10

The AD-WP-M10 is a heavy-duty adapter designed according to the Martin M10 standard and equipped with a reinforced base plate. Suitable for larger excavators, it provides stable attachment, efficient force transfer, and reliable performance during demanding tasks.

Lead time: up to 48 hours
For the machine: 4-5, 5-6, 6-7, 7-8, 8-9, 9-10
Adapter: M10
Side plate: 16 S355
Base plate: 20 S355
Pin diameter: 50
Inner width: 232
Pin spacing: 292
Weight: 41

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
M02	30	161	170
M03	35	184	180
M10	50	232	292

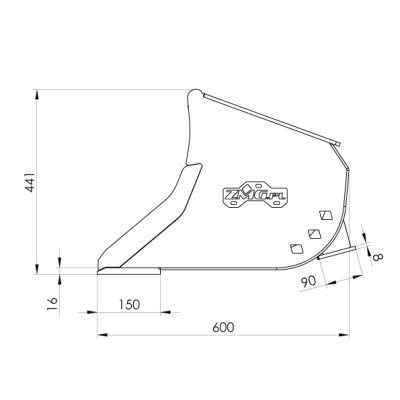

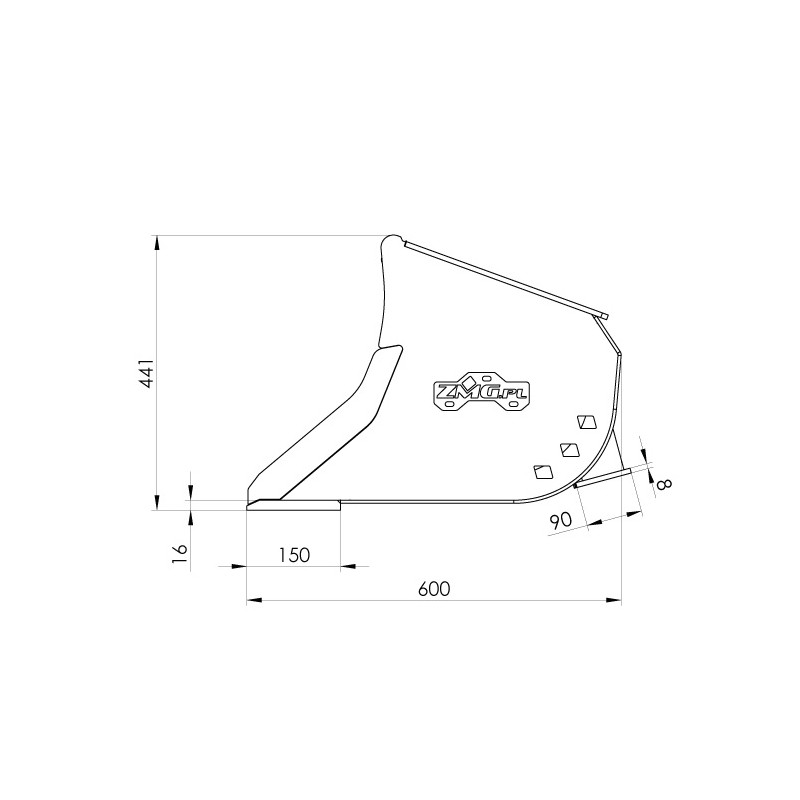

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	M02		M03		M10
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	12mm	S355	16mm	S355
Base plate:	16mm	S355	16mm	S355	20mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]
1200	121	215
1300	129	235
1400	137	254
1500	145	273
1600	153	293

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	8 mm	S355

The LSS-ZMG4-1300-M10 series is a 1300 mm ditch cleaning bucket designed for excavators in the 6–10 t class. The tool enables efficient slope forming, ditch cross-section shaping, gradient levelling, and any work requiring a flat, even profile. The MartinM10 adapter ensures M10 system compatibility, allowing seamless attachment mounting on machines equipped with this standard. S355 steel construction and reinforced working edges ensure durability and geometric precision throughout the bucket's service life.

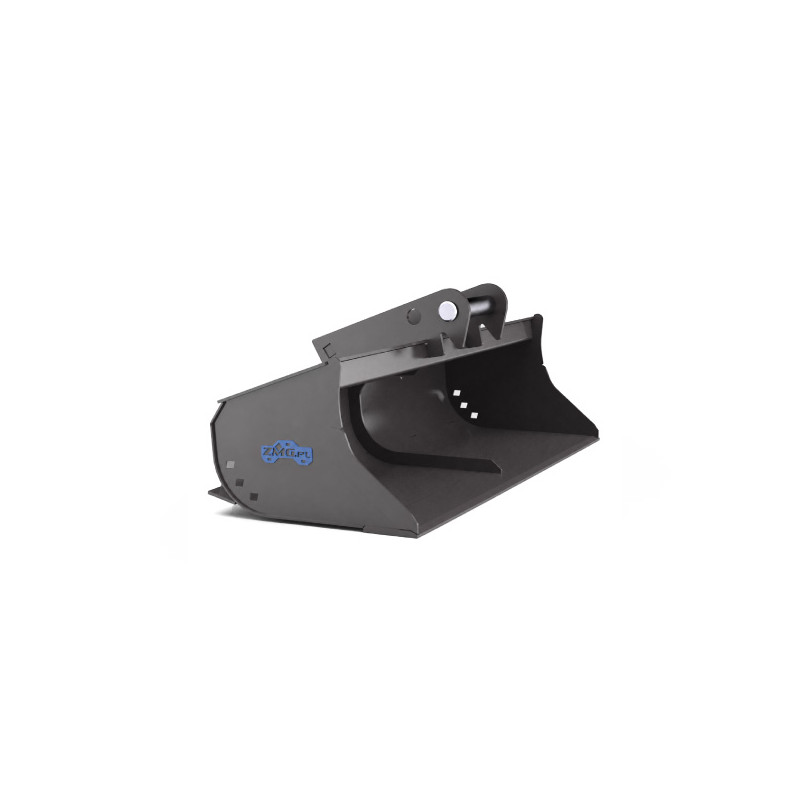

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LSS-ZMG4

Reference LSS-ZMG4-1300-M10

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
8-9
9-10
Adapter: M10
Width: 1300
Weight without adapter: 129
Capacity: 235
Side/rear plate: 6 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16 HB500
Top plate: 8 S355
Bend plate: 8 S355
