- Class: 0-2 T
- Width: 800
- Adapter: CW05
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 46 | 59 |
| 900 | 50 | 70 |
| 1000 | 55 | 75 |
| 1100 | 59 | 83 |
| 1200 | 64 | 91 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |

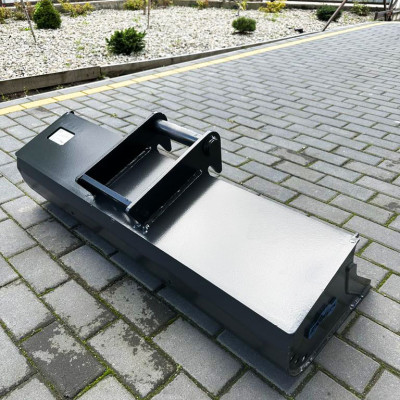

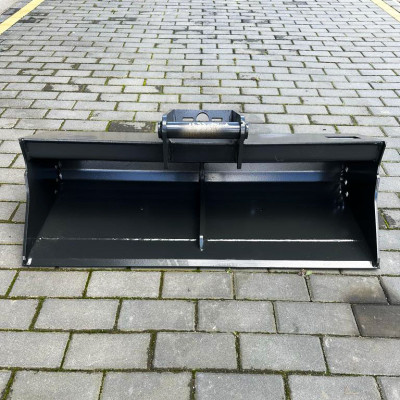

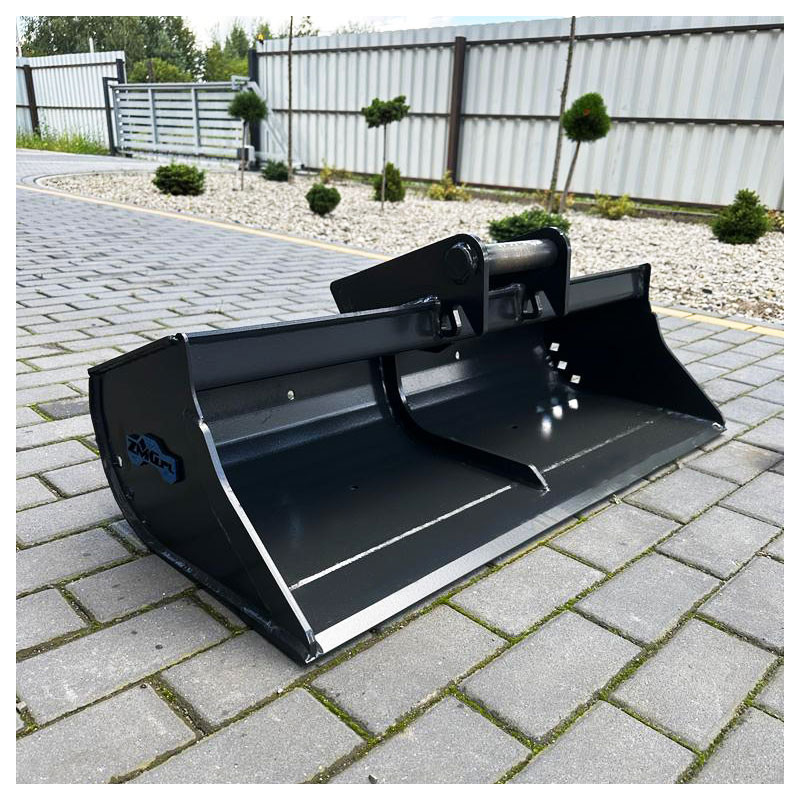

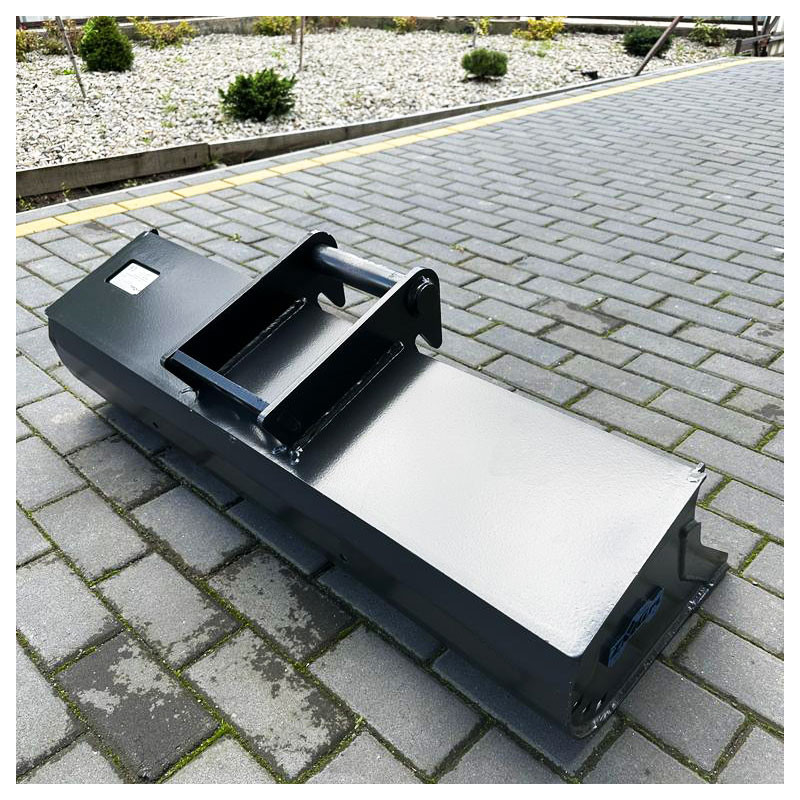

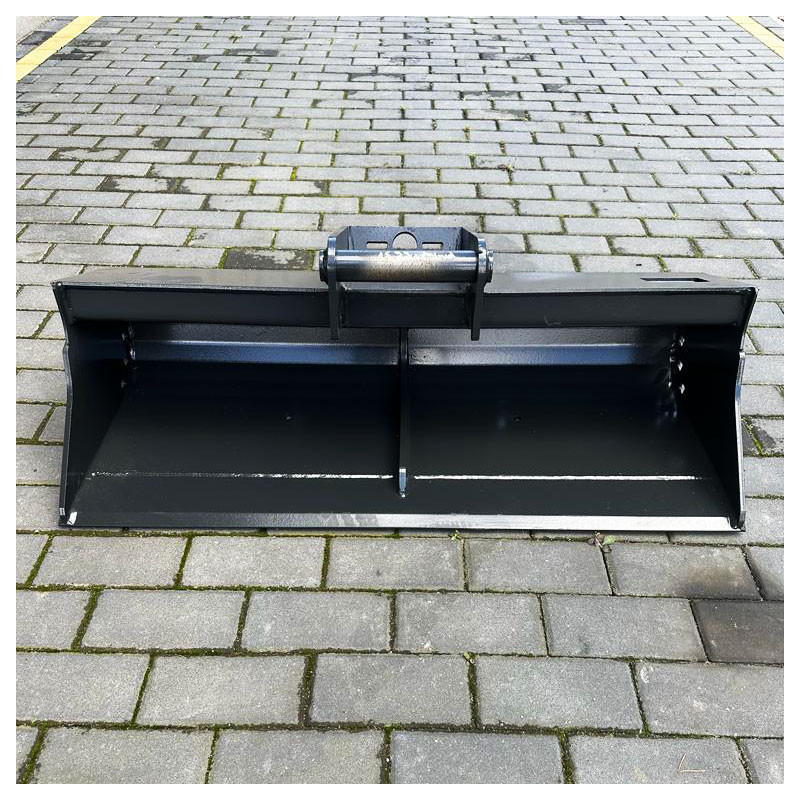

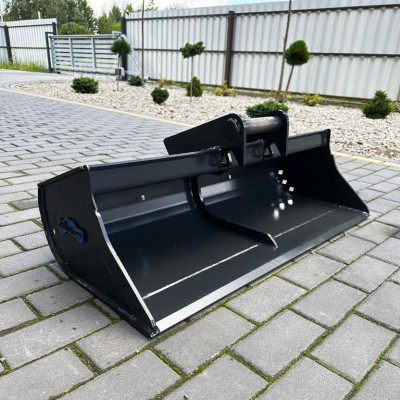

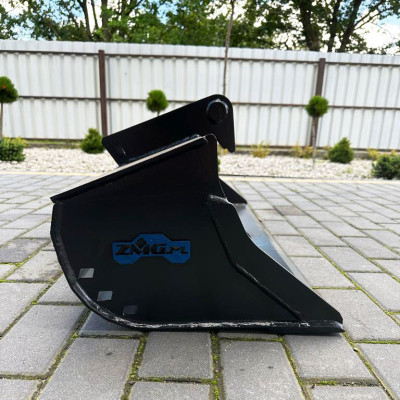

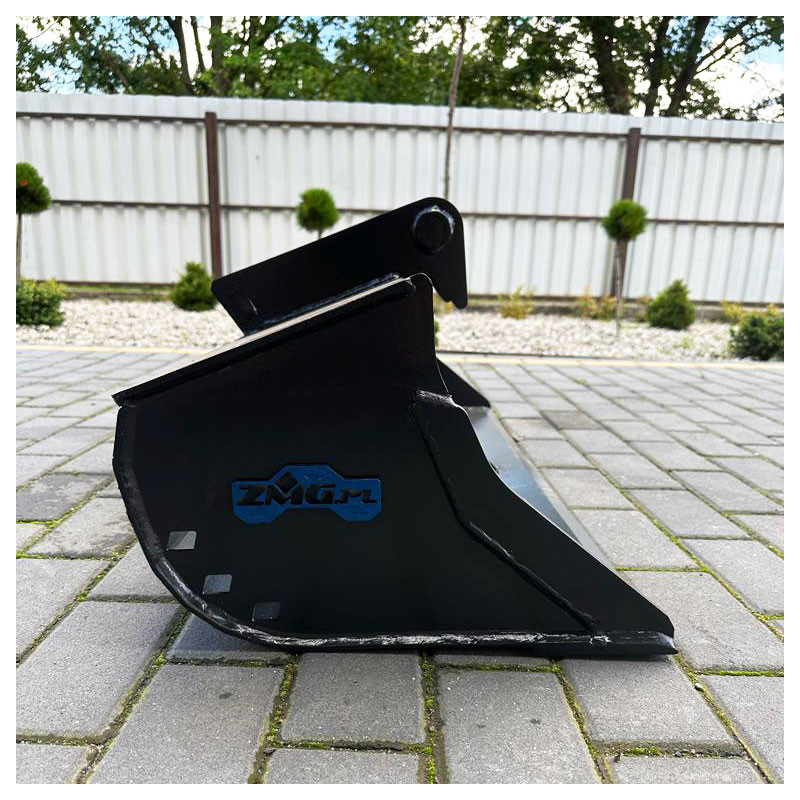

The LSS-ZMG1-800-CW05 ditch cleaning bucket with a working width of 800 mm is a precision tool designed for mini and compact excavators up to 2 t. It is excellent for slope profiling, cleaning drainage ditches, and shaping terrain along roads and waterways. The Verachtert CW05 quick coupler system guarantees a solid and safe machine connection, providing flexibility in attachment selection. S355 steel construction and reinforced working edges ensure durability and geometric precision throughout the bucket's service life.

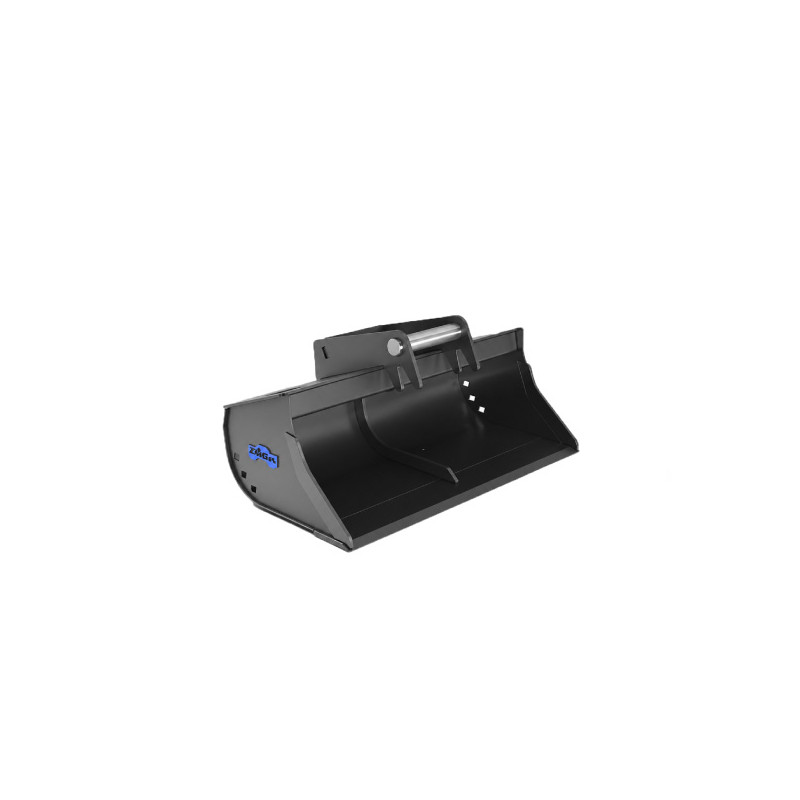

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
