Ditch cleaning bucket 1200mm MS03SY class 3-4t
2,874.51 zł
Tax included

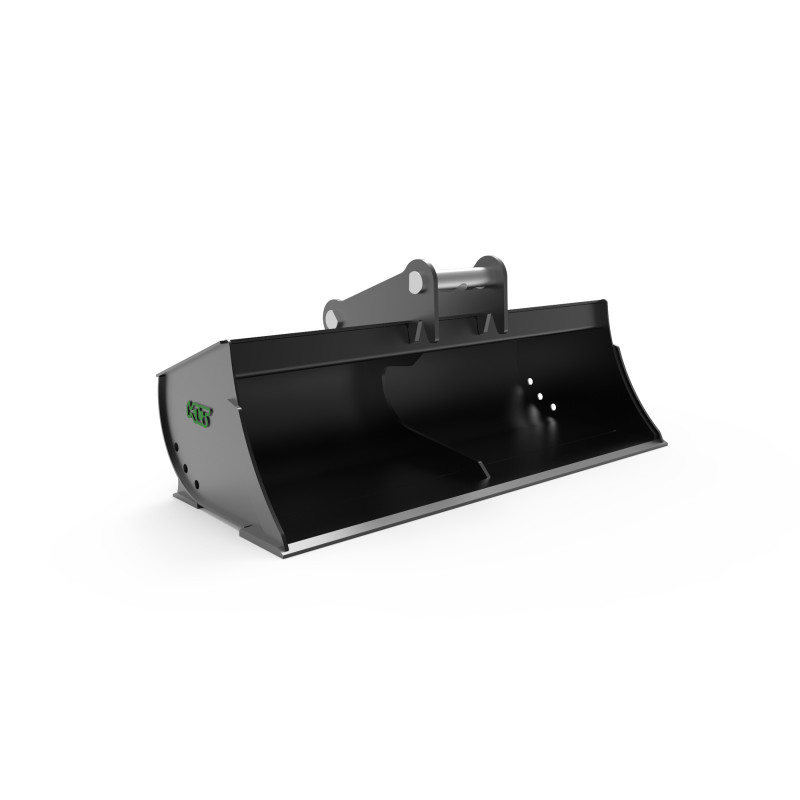

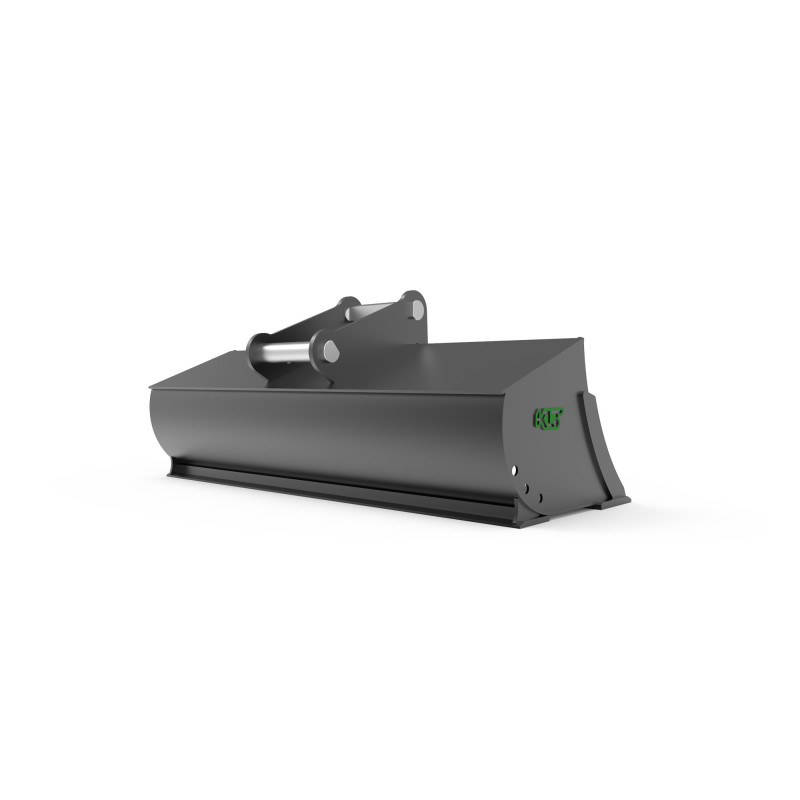

The TBS-S3-V1-1200-MS03SY-RB model is a robust grading bucket designed for excavators weighing between 3 and 4 tons. It is ideal for precise slope shaping, ground leveling, backfilling trenches and cleaning ditches or roadside areas—anywhere accuracy and a clean finish are essential. Manufactured from durable, wear-resistant steel, the TBS-S3 combines strength with optimized weight, ensuring smooth and stable operation even during intensive use.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 109 | 162 |
| 1400 | 125 | 191,3 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S3-V1-1200-MS03SY-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- MS03SY
- Width
- 1200mm
- Weight without adapter
- 109kg
- Capacity
- 162 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 6mm S355
- Bend plate
- 6mm S355
