- Class: 4-6 T
- Width: 1600
- Adapter: with pins
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 95 | 140 |
| 1100 | 102 | 155 |
| 1200 | 110 | 170 |
| 1300 | 117 | 185 |
| 1400 | 124 | 200 |
| 1500 | 132 | 215 |
| 1600 | 139 | 230 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
Model LSS-ZMG3-1600-ZSW is a 1600 mm ditch cleaning bucket designed for medium-class excavators of 4–6 t. It enables precise slope profiling, roadside levelling, ditch cleaning, and terrain shaping to required gradients. Pin mounting provides a traditional, proven and robust connection between the attachment and the excavator arm, independent of any quick coupler system. High-quality S355 steel construction ensures the ditch cleaning bucket maintains accurate working profile geometry over an extended service life.

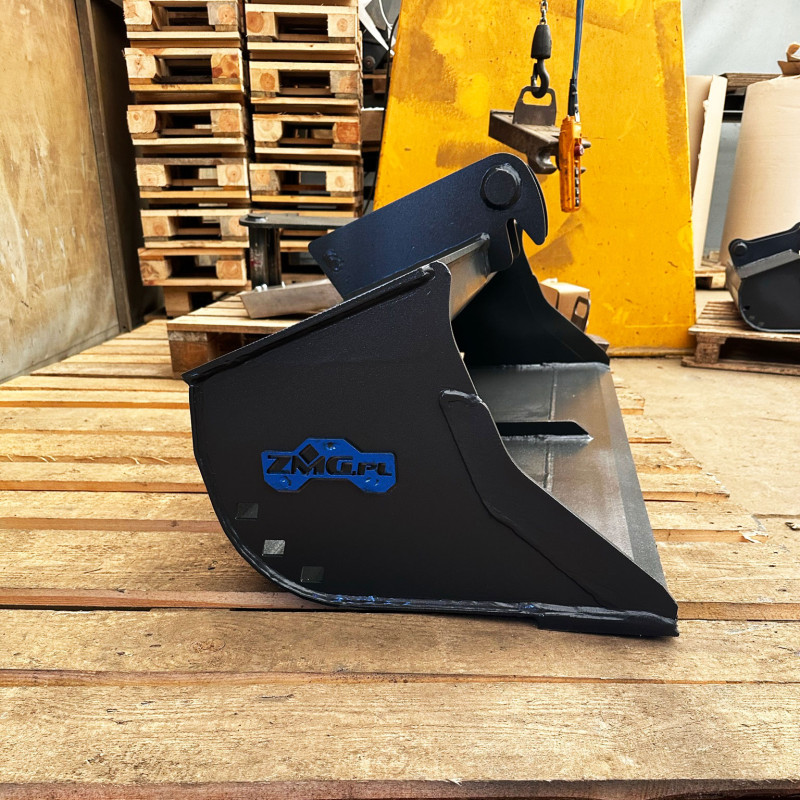

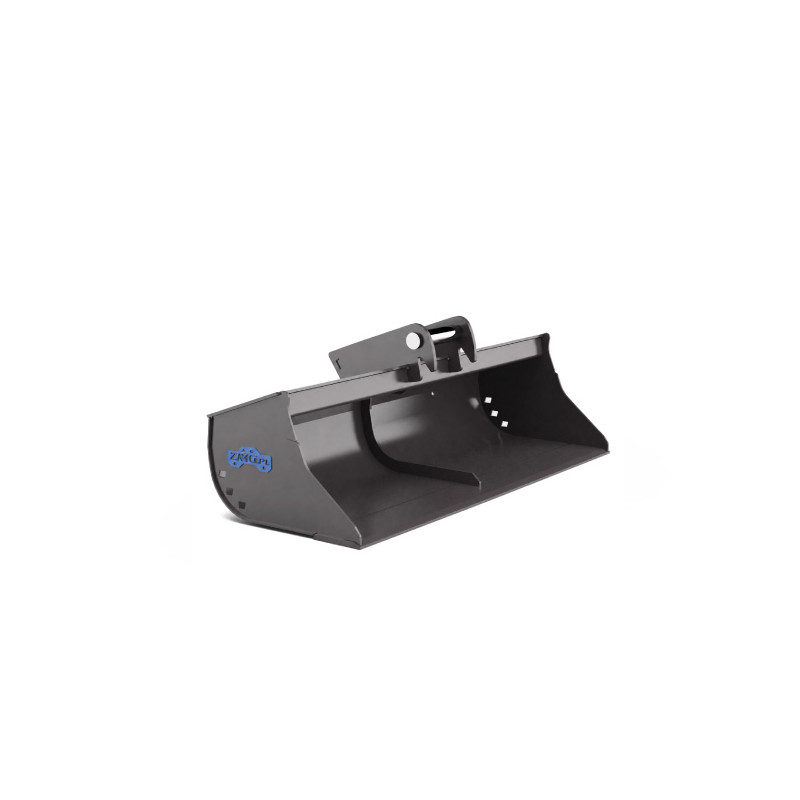

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
