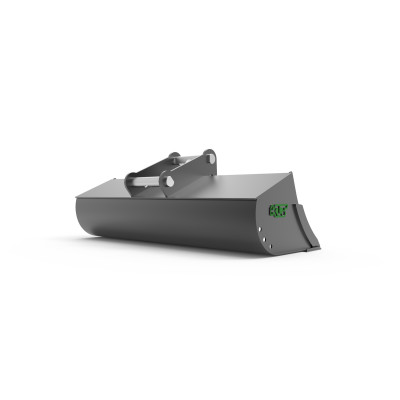

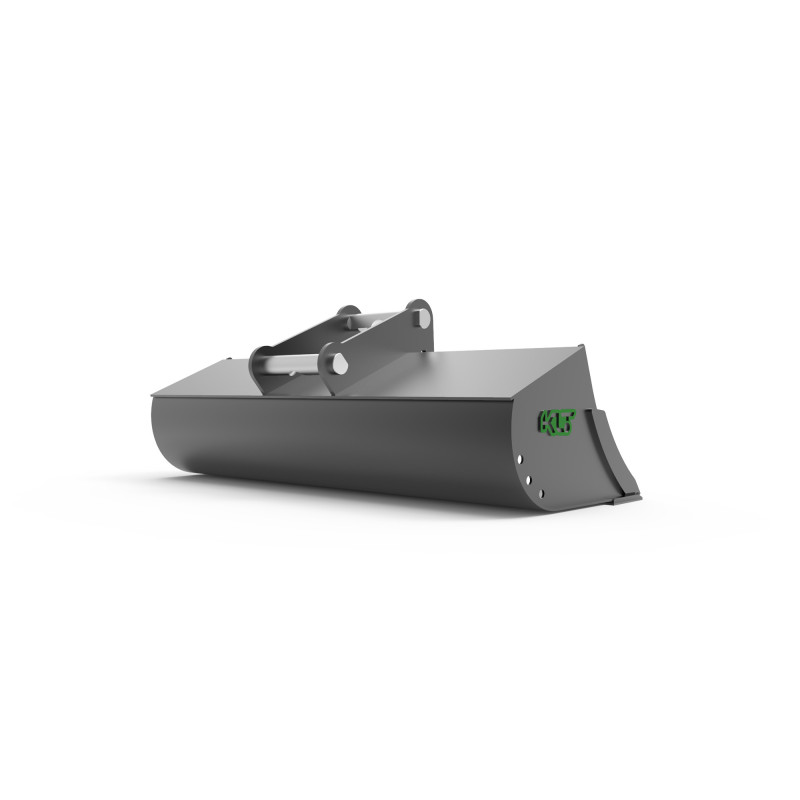

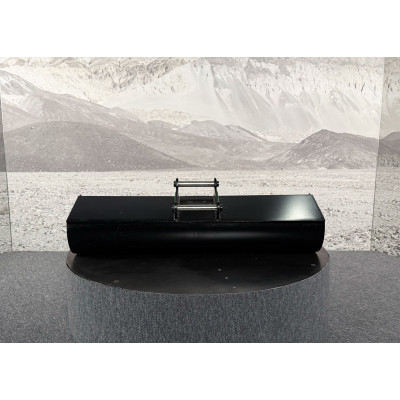

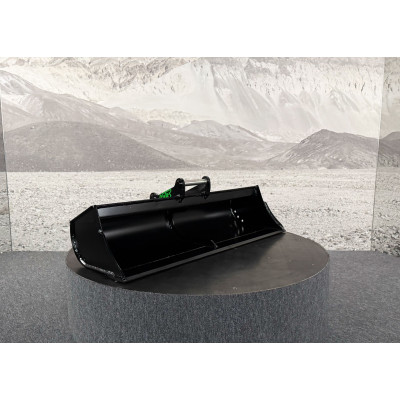

Ditch cleaning bucket 1200mm MS01SY class 0-2t
1,692.48 zł
Tax included
The TBS-S1-V1-1200-MS01SY bucket is designed for operators requiring maximum efficiency in terrain profiling with 0–2-ton mini excavators. Its large working width ensures fast leveling of bigger areas, effective ditch maintenance and efficient slope shaping. A sturdy, abrasion-resistant steel structure guarantees long-term reliability, while the lightweight design ensures precise control of the machine — ideal for tasks that demand both speed and a high-quality finish.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 41 | 68,5 |
| 1000 | 50 | 86,5 |
| 1200 | 57 | 104,5 |
* The given bucket weight does not include the weight of the adapter.

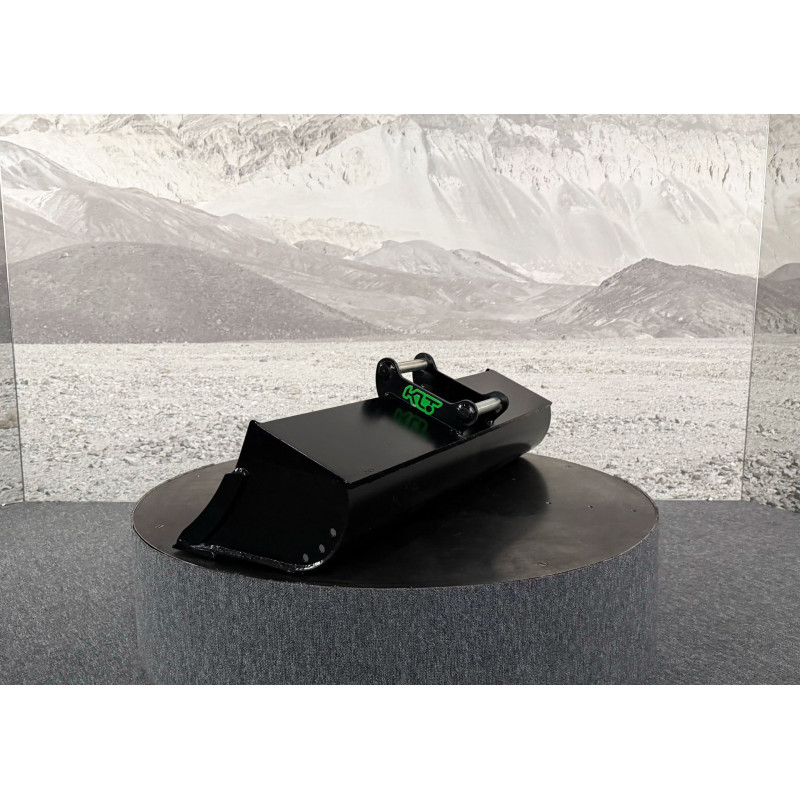

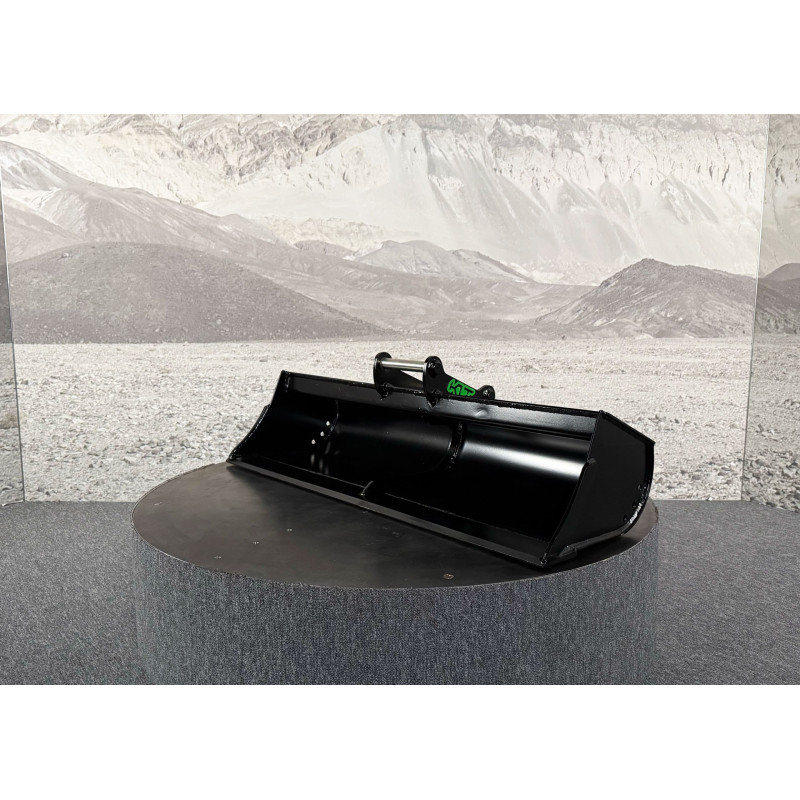

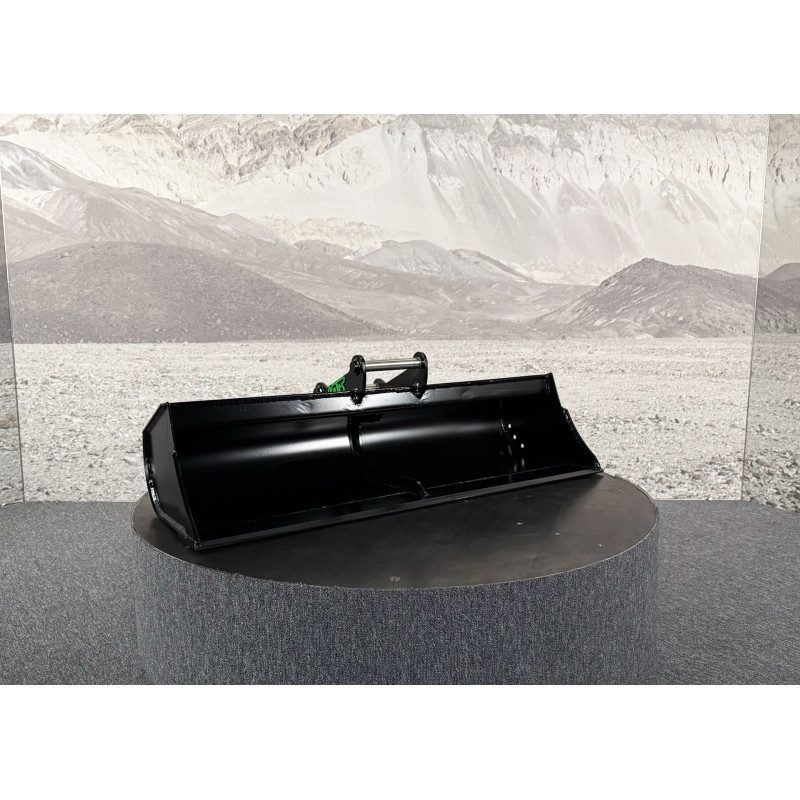

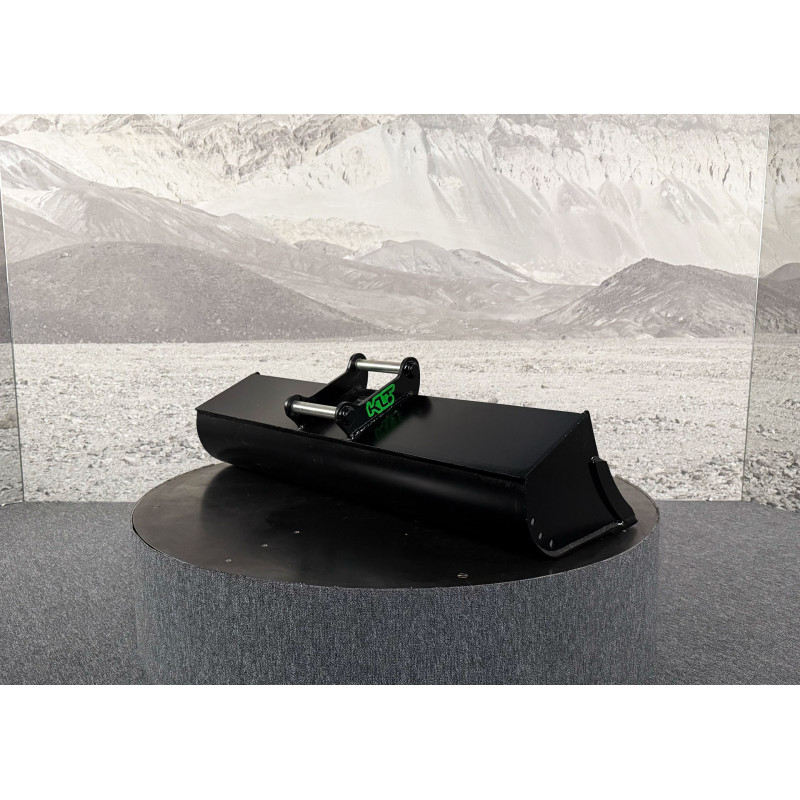

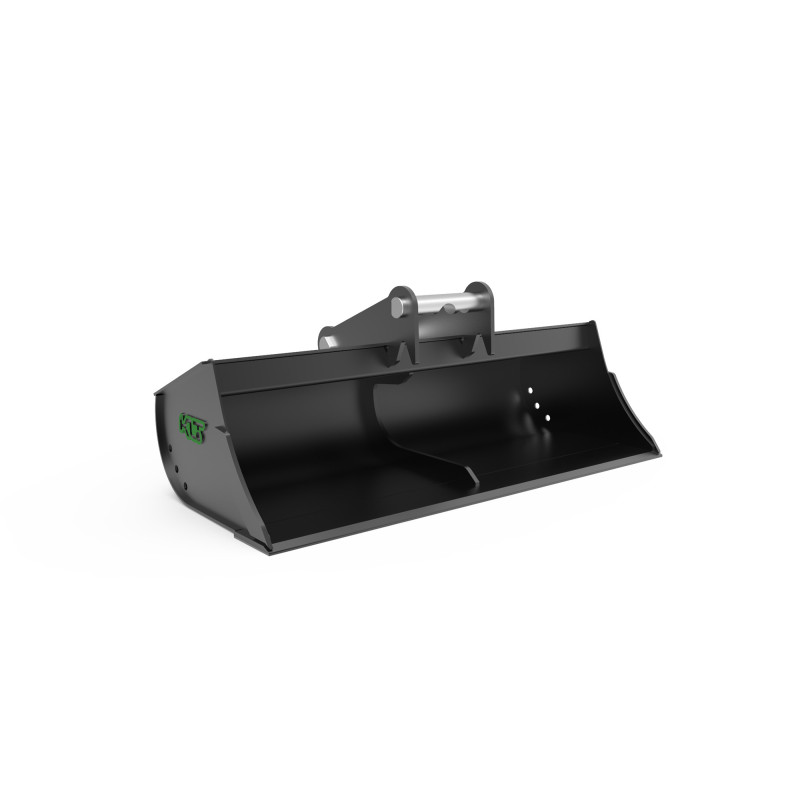

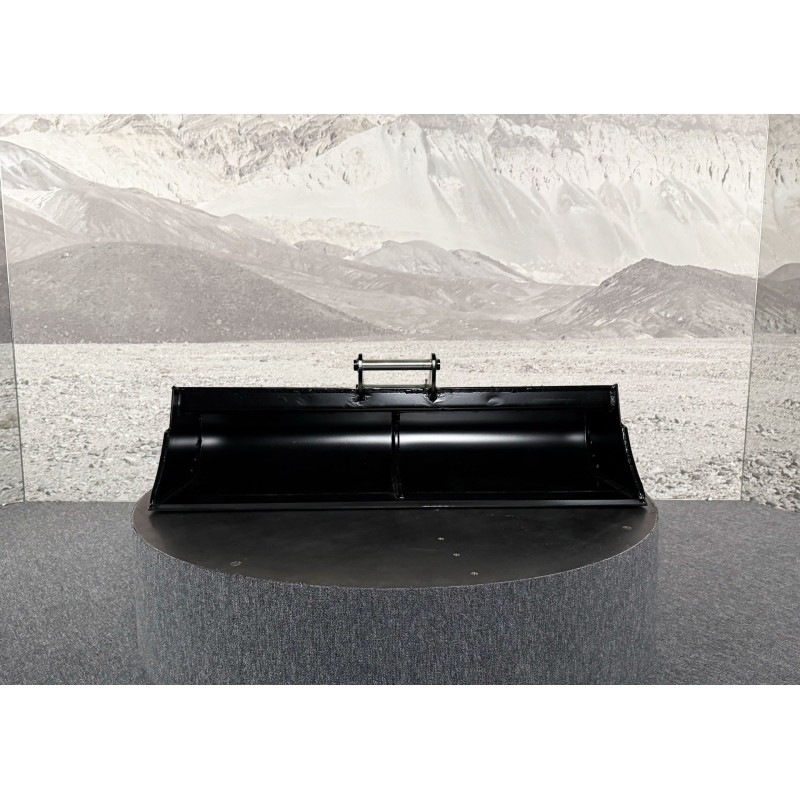

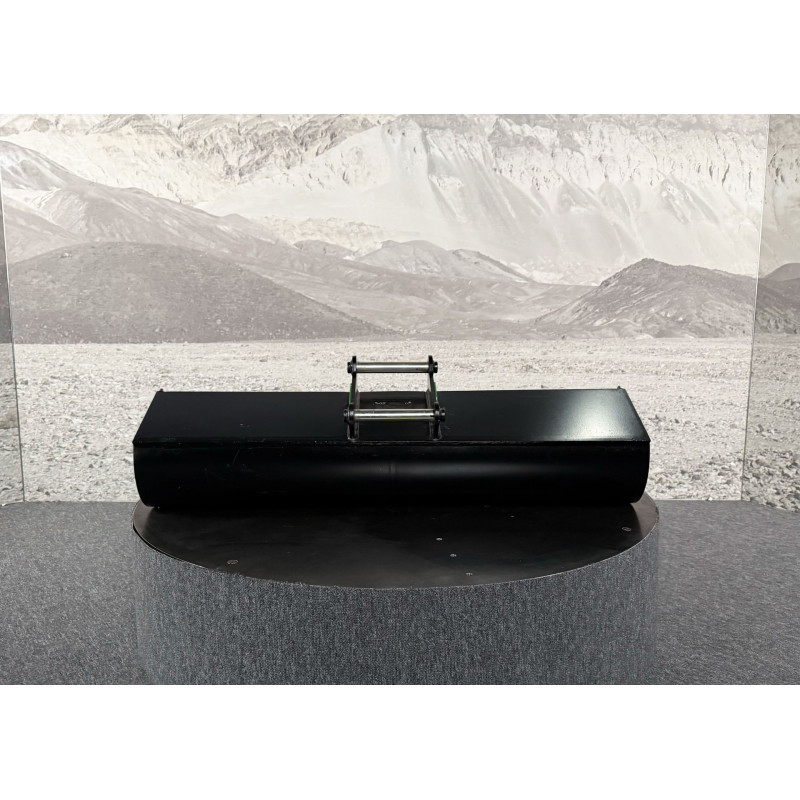

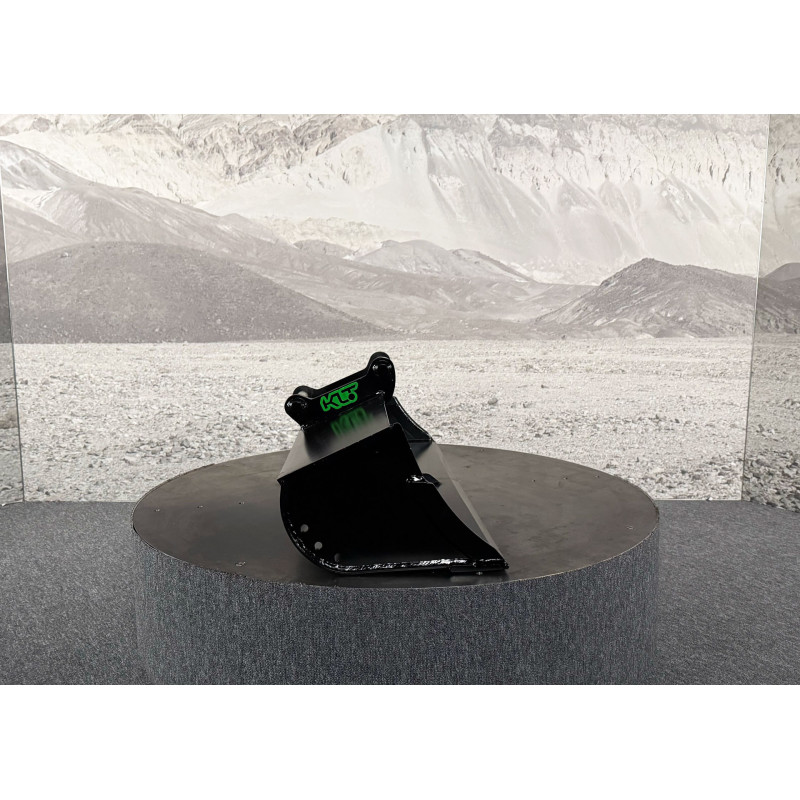

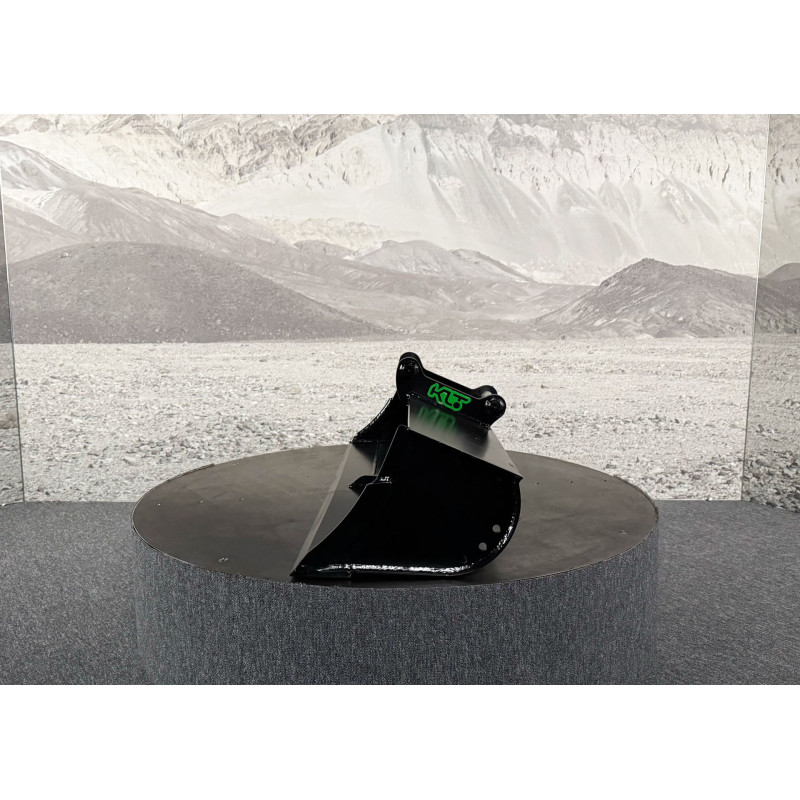

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 x 110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S1-V1-1200-MS01SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- MS01SY
- Width
- 1200mm
- Weight without adapter
- 57kg
- Capacity
- 104,5 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 4mm S355
- Cutting edge
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
