Class: 0-2 T
Width: 900
Adapter: CW05

Ditch cleaning bucket 900mm CW05 class 0-2t

Ditch cleaning bucket 900mm CW05 class 0-2t

Name: Ditch cleaning bucket 900mm CW05 class 0-2t
Brand: ZMG
SKU: LSS-ZMG1-900-CW05
Price: 1549.80 PLN
Availability: InStock

1,549.80 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Verachtert system- CW05-without base plate

Reference: AD-WOP-CW05

The AD-WOP-CW05 model, designed in line with the Verachtert CW05 system standards, offers high functionality without the use of a base plate. It is lightweight yet very durable, allowing quick tool connection and ensuring reliable machine performance in everyday tasks.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 0-1, 1-2, 2-3, 3-4
Adapter: CW05
Side plate: 20 S355
Pin diameter: 40
Inner width: 180
Pin spacing: 200
Weight: 9

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
CW05	40	180	200
CW10	50	320	300
CW20/30/40	60	560	475

Parameters

The main components are made of the following materials and thicknesses:

	CW05		CW10		CW20/30/40
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	35mm	HB400

Specification

Width [mm]	Weight* [kg]	Capacity [l]
800	46	59
900	50	70
1000	55	75
1100	59	83
1200	64	91

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	12 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

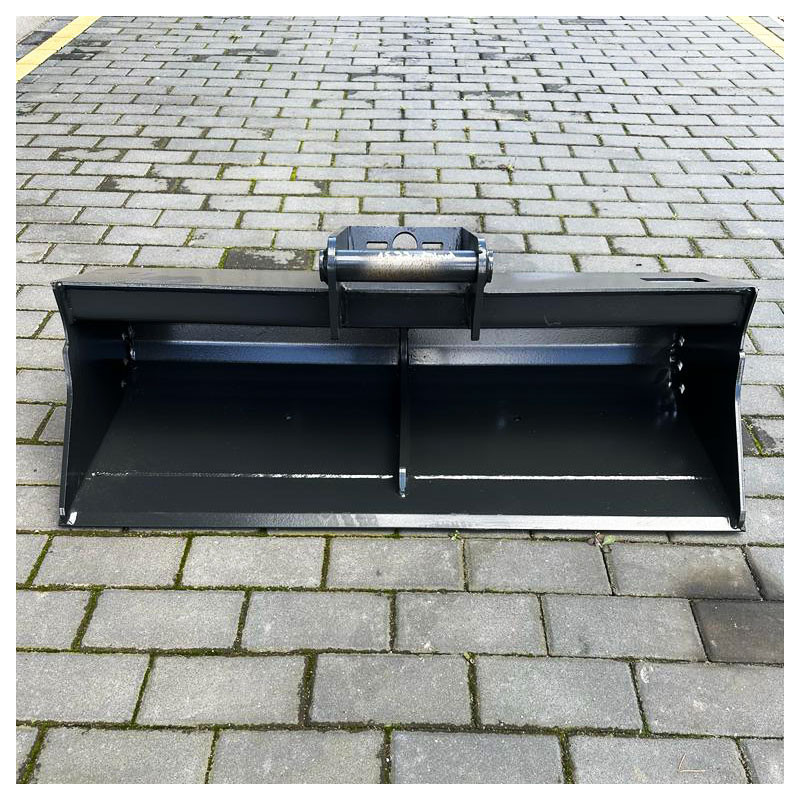

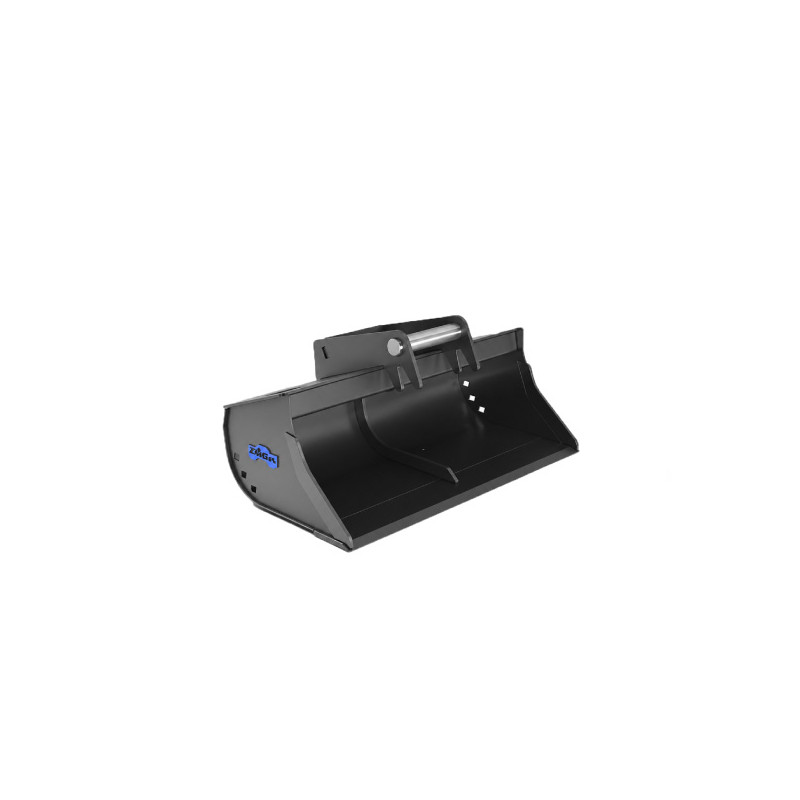

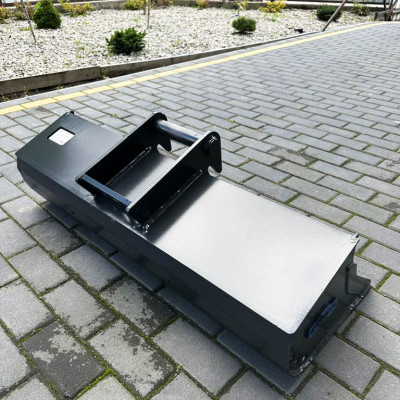

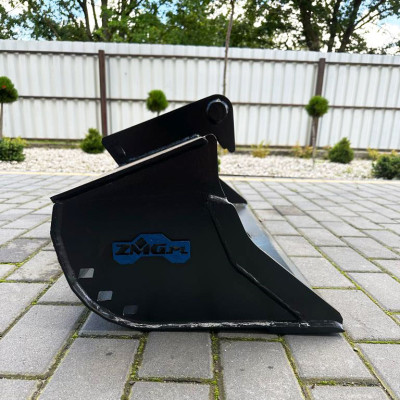

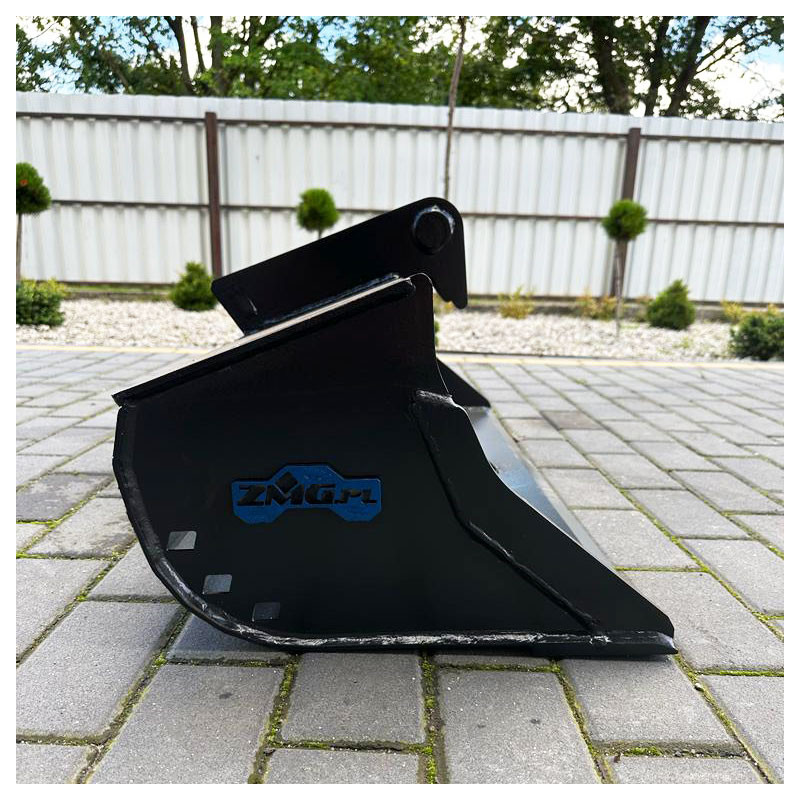

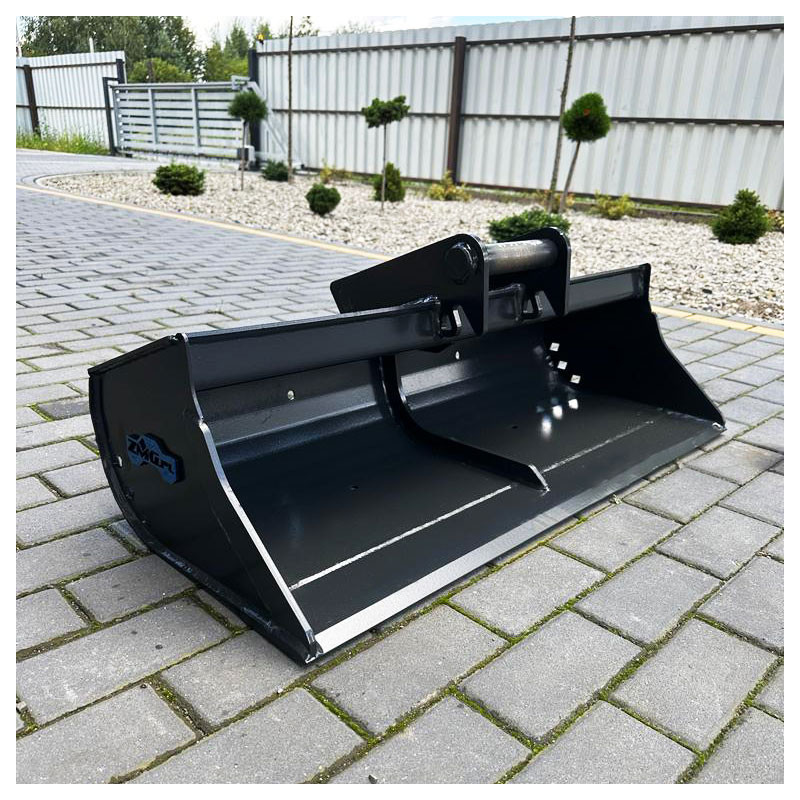

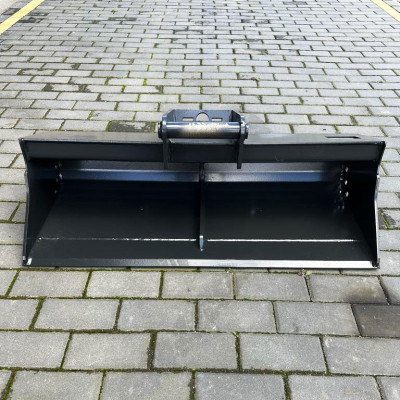

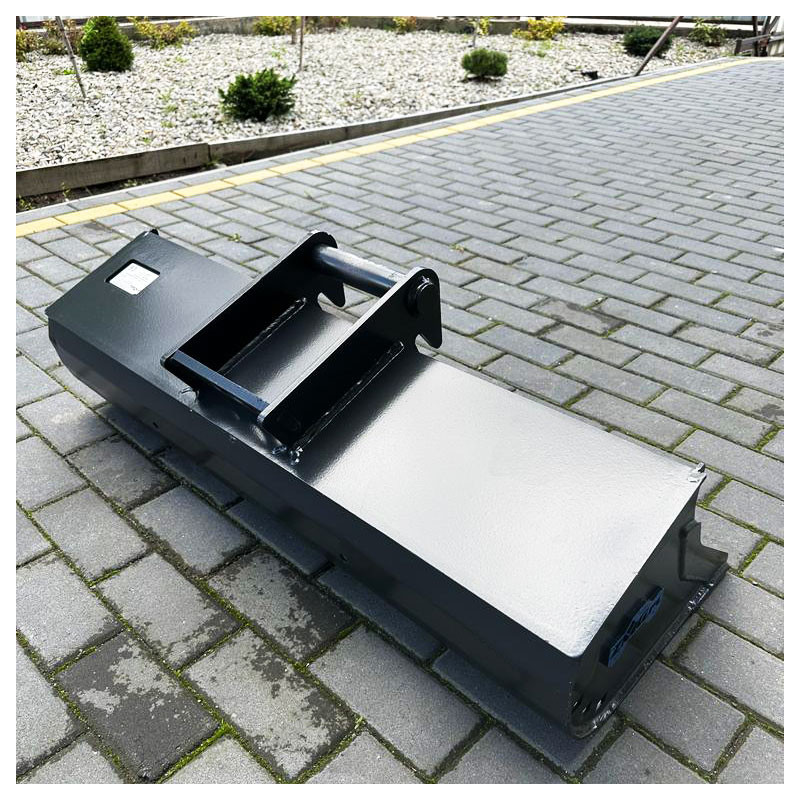

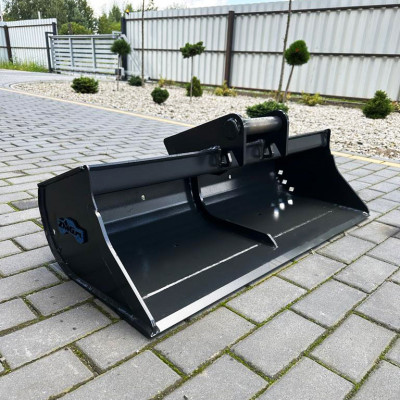

The LSS-ZMG1-900-CW05 ditch cleaning bucket with a working width of 900 mm is a precision tool designed for mini and compact excavators up to 2 t. It is excellent for slope profiling, cleaning drainage ditches, and shaping terrain along roads and waterways. The Verachtert CW05 quick coupler system guarantees a solid and safe machine connection, providing flexibility in attachment selection. S355 steel construction and reinforced working edges ensure durability and geometric precision throughout the bucket's service life.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LSS-ZMG1

Reference LSS-ZMG1-900-CW05

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: CW05
Width: 900
Weight without adapter: 50
Capacity: 70
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 12 HB500
Top plate: 5 S355
Bend plate: 5 S355
