Class: 3-4 T
Width: 1000
Adapter: MS03

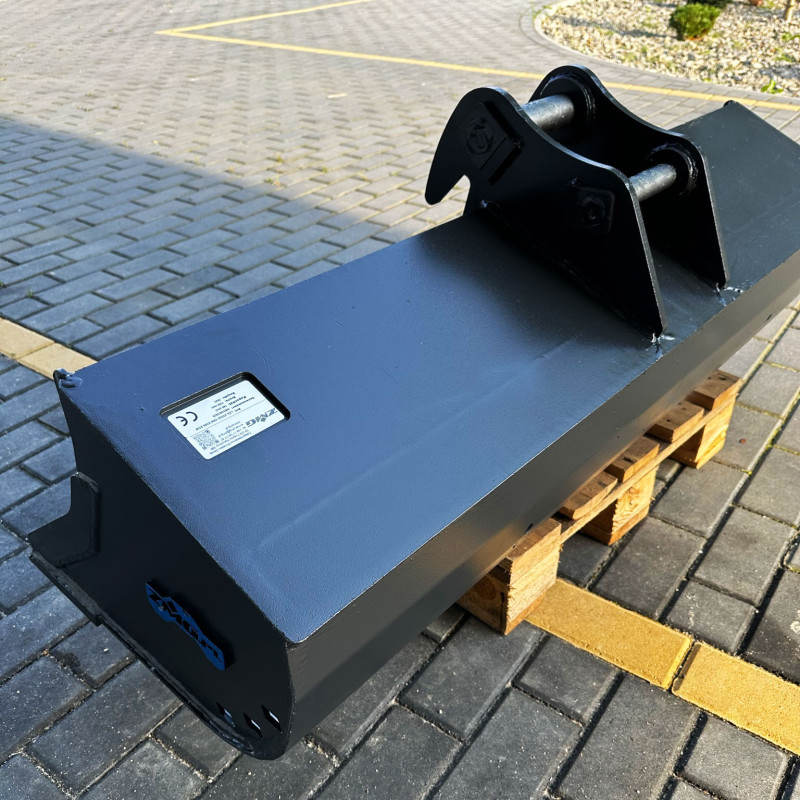

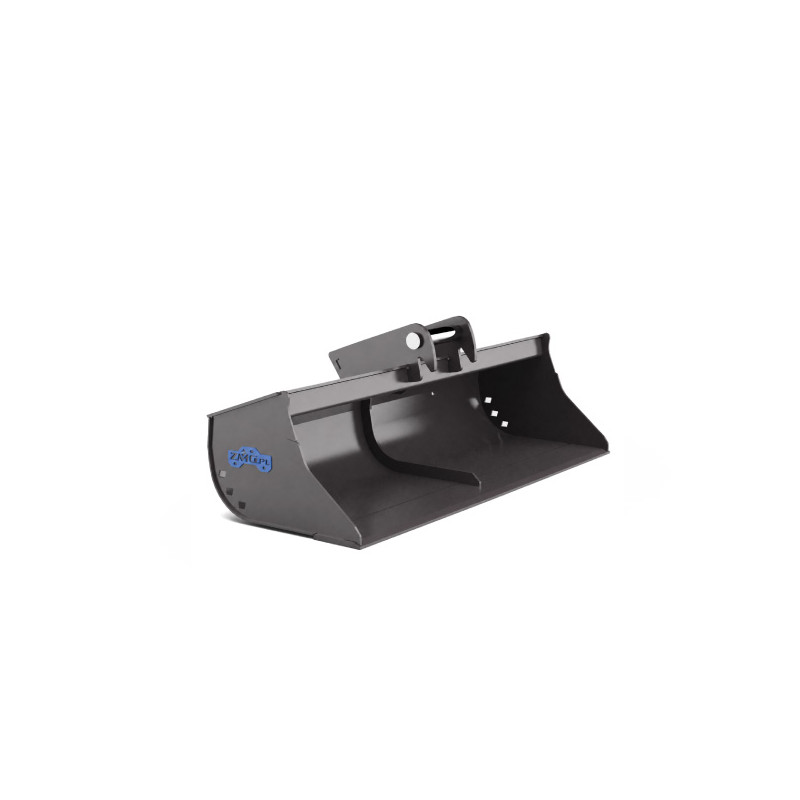

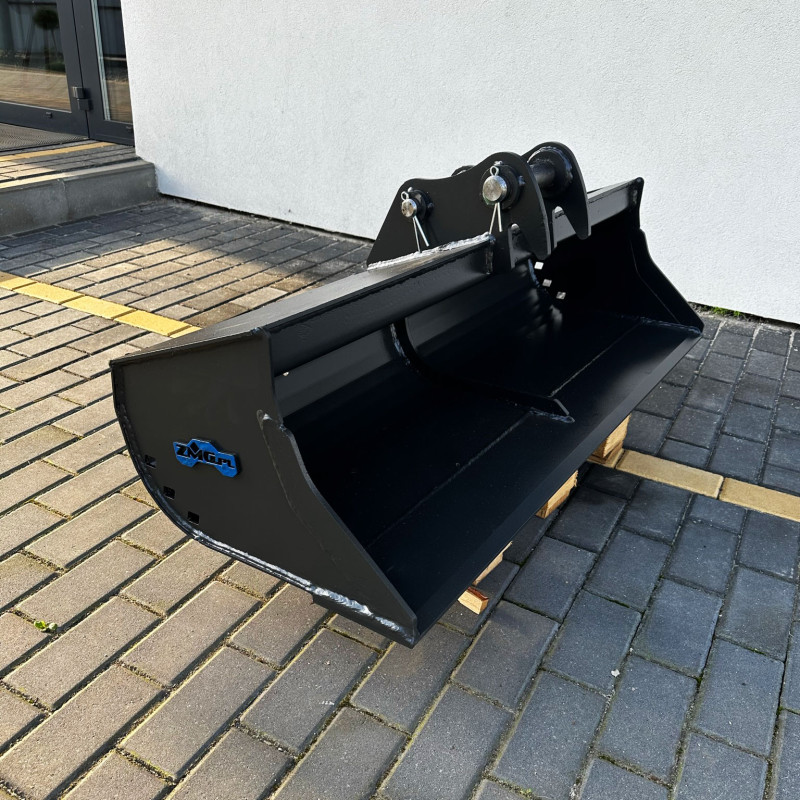

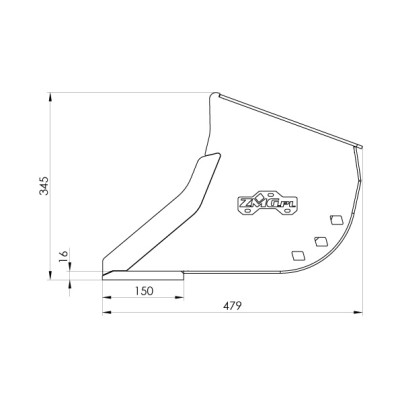

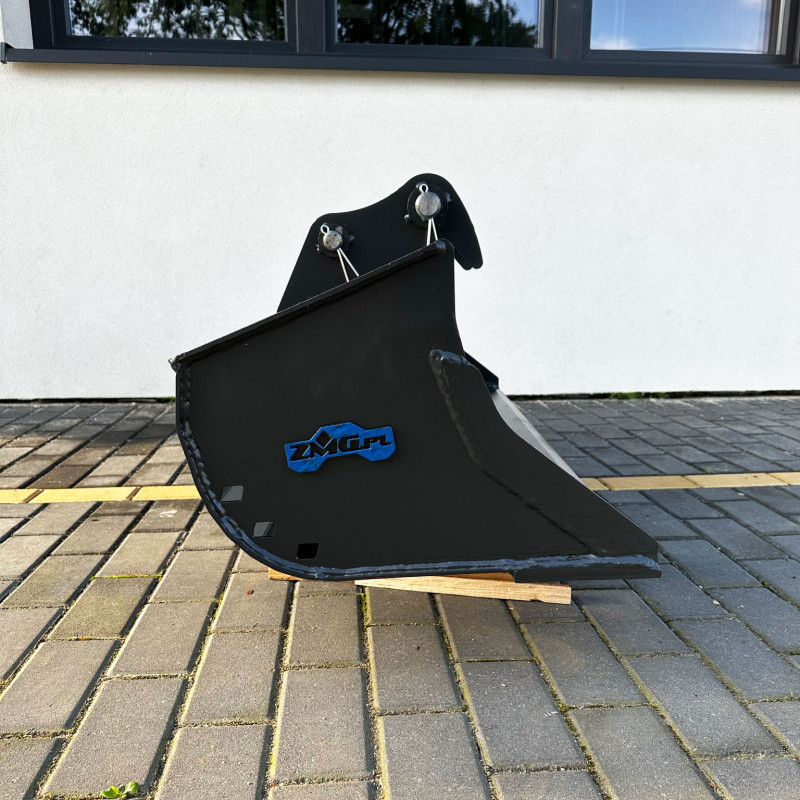

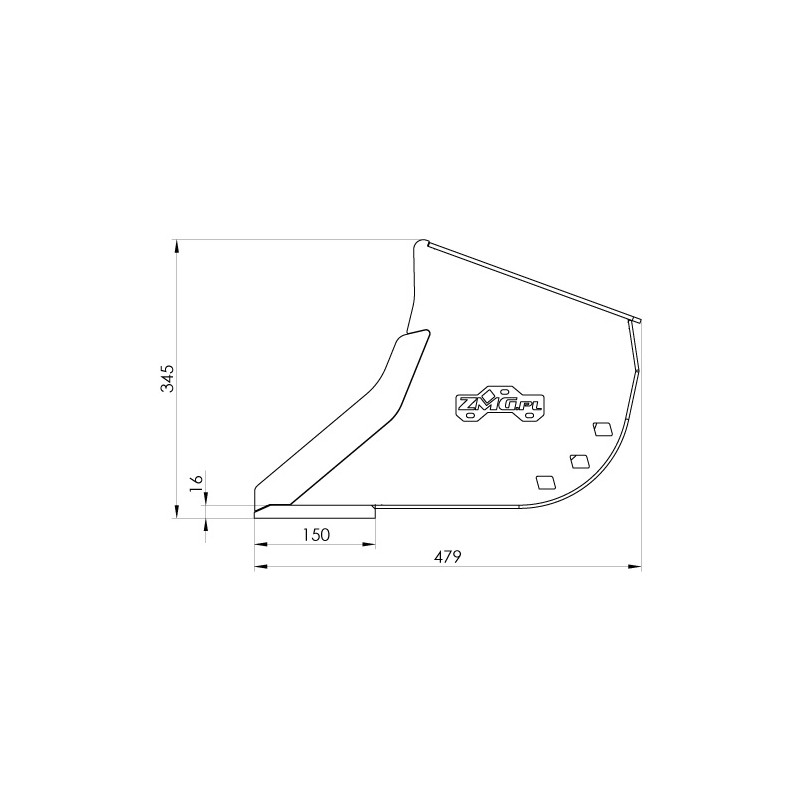

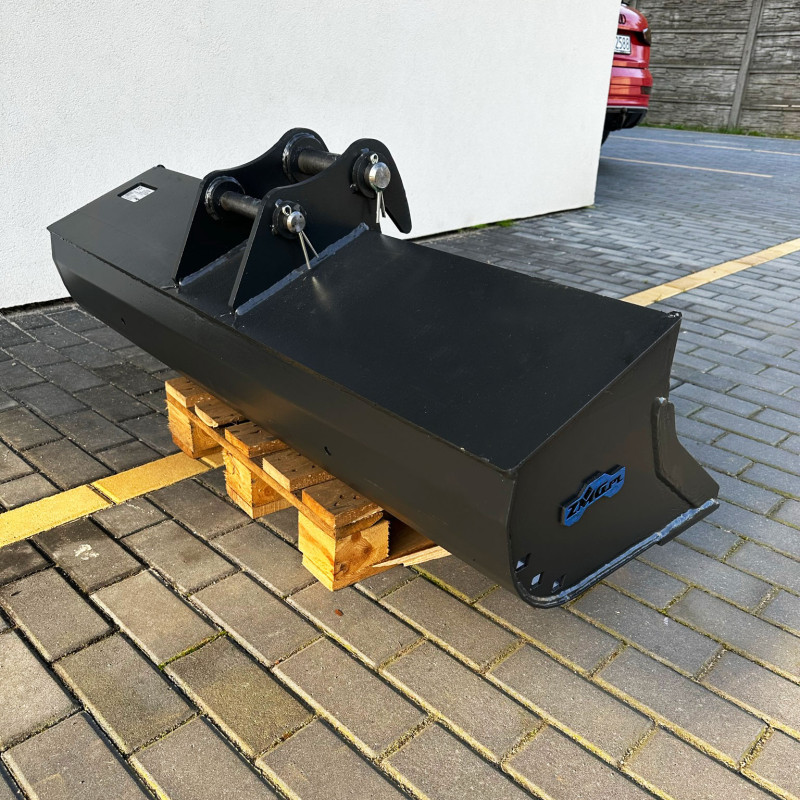

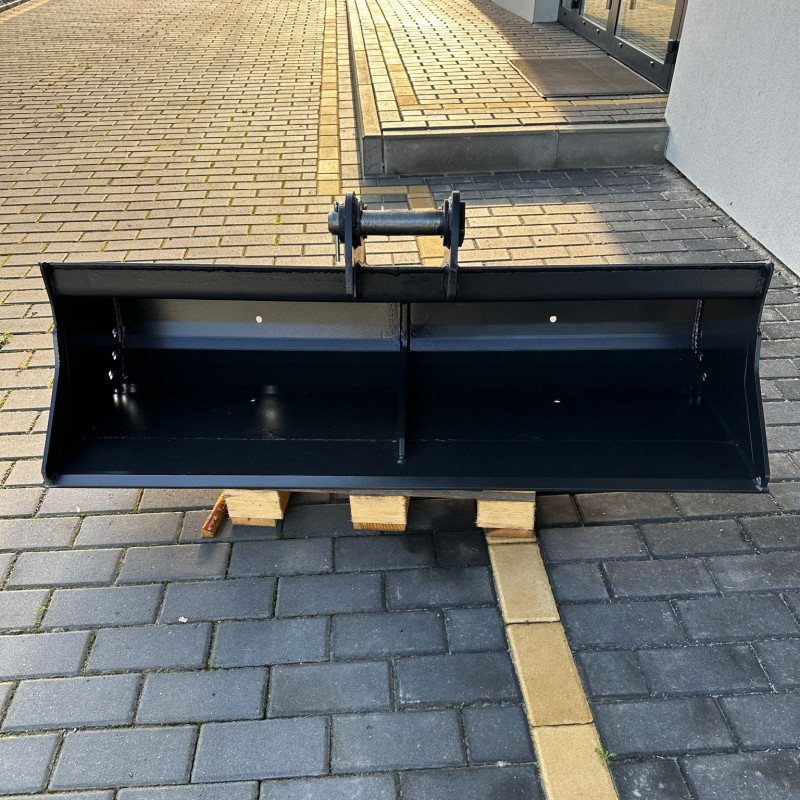

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

Ditch cleaning bucket 1000mm MS03 class 2-4t

1,862.22 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]
1000	67	111
1100	72	123
1200	78	135
1300	83	146
1400	89	158

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

The LSS-ZMG2-1000-MS03 series is a 1000 mm ditch cleaning bucket designed for excavators in the 2–4 t class. The tool enables efficient slope forming, ditch cross-section shaping, gradient levelling, and any work requiring a flat, even profile. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. Thick steel plate and precisely executed welds guarantee the tool's resistance to deformation and abrasion when working in various soil types.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

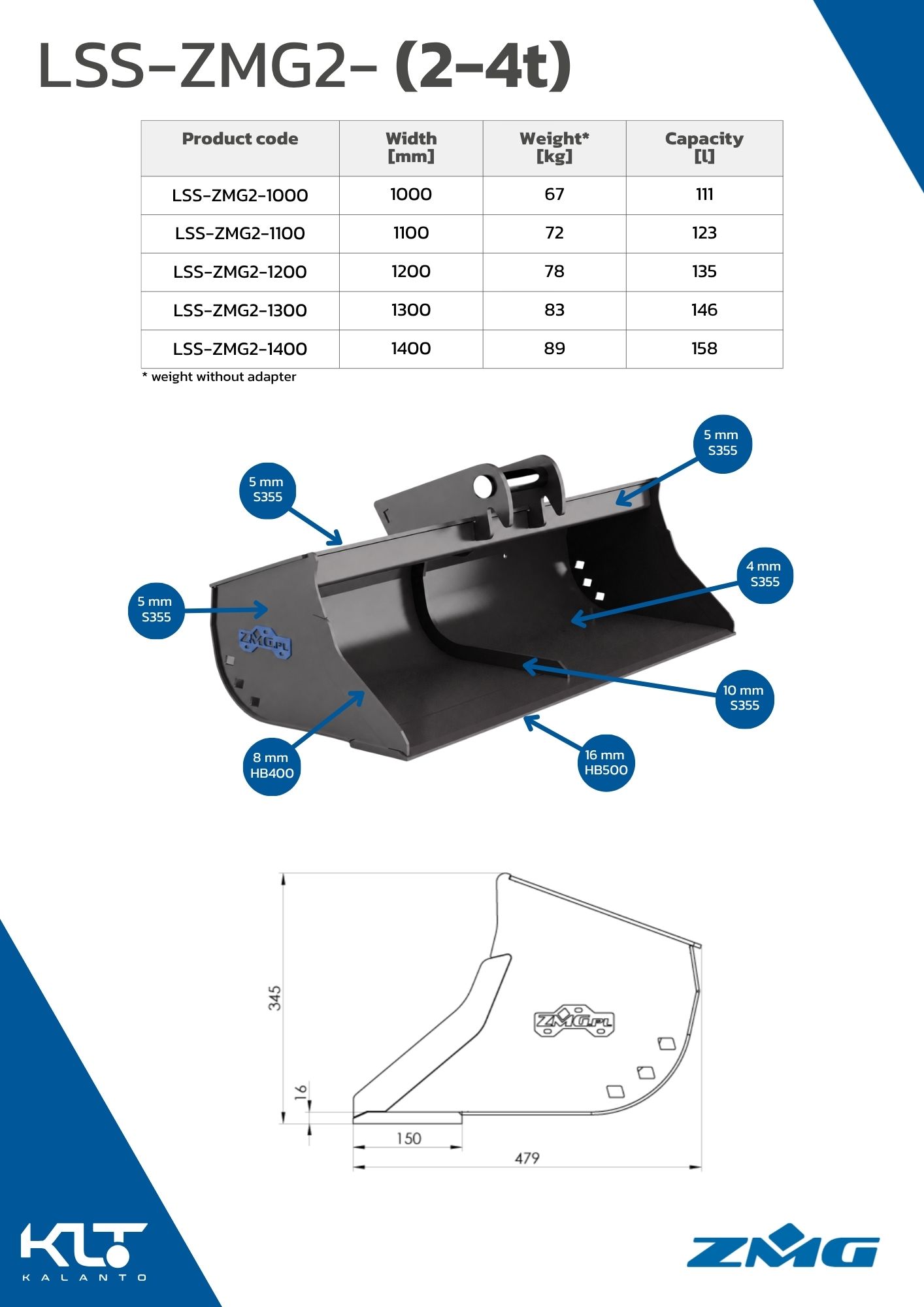

LSS-ZMG2

Reference LSS-ZMG2-1000-MS03

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
3-4
Adapter: MS03
Width: 1000
Weight without adapter: 67
Capacity: 111
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
