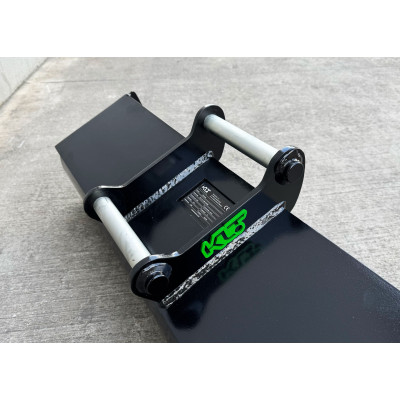

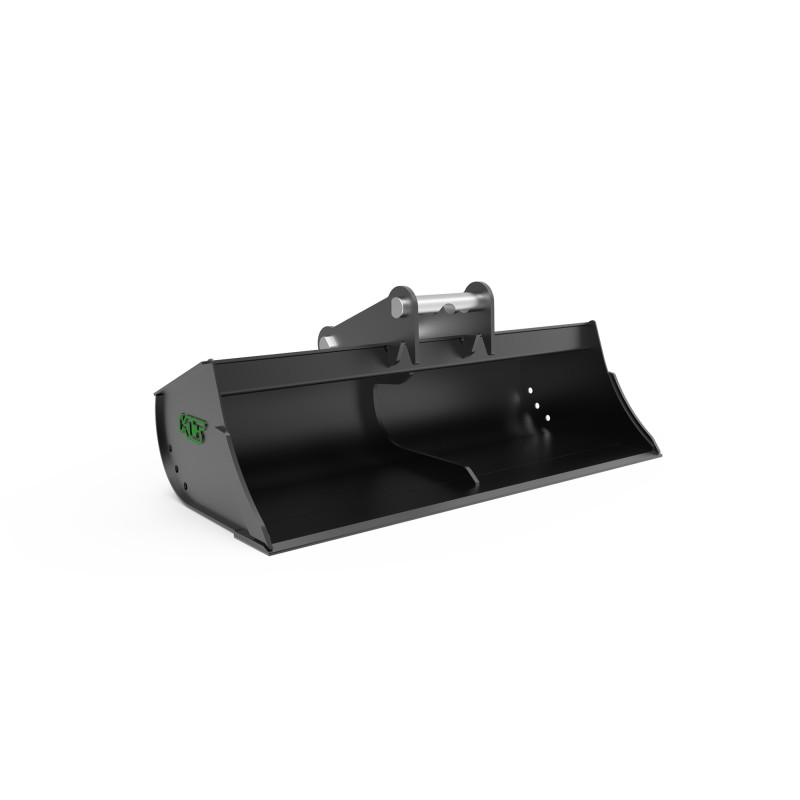

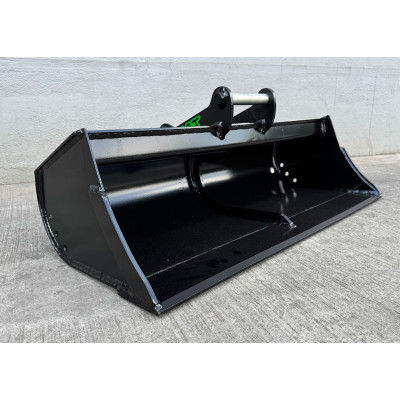

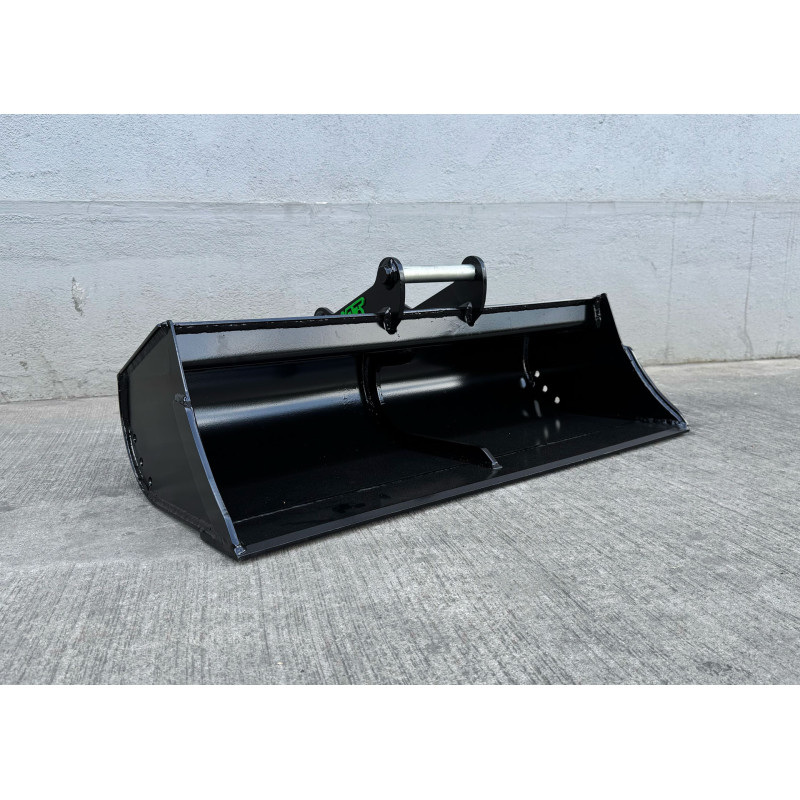

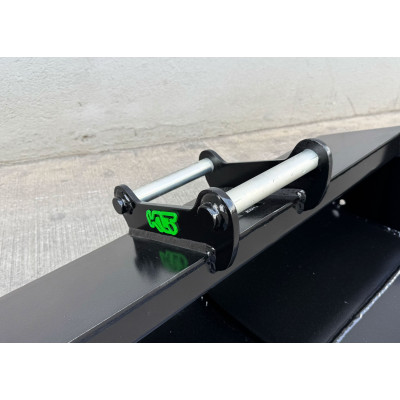

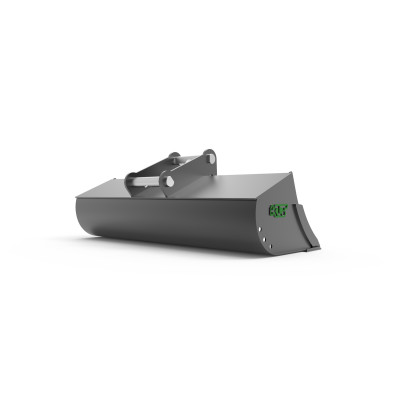

Ditch cleaning bucket 1000mm S30/180 class 0-2t
1,494.45 zł
Tax included
The TBS-S1-V1-1000-S30/180 is a robust ditch-cleaning bucket suited for 0–2-ton mini excavators, ideal for detailed shaping and finishing work. Its wide, precisely contoured shell allows smooth surface leveling, slope profiling and removal of excess soil or material. The use of high-resistance steel ensures excellent durability in demanding applications, while its low weight and refined geometry guarantee smooth and stable machine operation.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 41 | 68,5 |
| 1000 | 50 | 86,5 |
| 1200 | 57 | 104,5 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 x 110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S1-V1-1000-S30/180
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- S30/180
- Width
- 1000mm
- Weight without adapter
- 50kg
- Capacity
- 86,5 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 4mm S355
- Cutting edge
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
