- Class: 6-10 T
- Width: 1400
- Adapter: S50
Product catalogues
View and download →
Product catalogues
View and download →
Reference: AD-WOP-S50
AD-WOP-S50 is fully compatible with the Volvo S50 system and allows quick attachment of tools without a base plate. Strong and overload-resistant, it supports efficient machine retooling in varying terrain conditions.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| S30/150 | 30 | 152 | 200,5 |
| S30/180 | 30 | 182 | 230,5 |
| S40 | 40 | 202 | 300,5 |
| S45 | 45 | 292 | 430,5 |
| S50 | 50 | 272 | 430,5 |
| S60 | 60 | 342 | 480,5 |
| S70 | 70 | 452 | 600,5 |
The main components are made of the following materials and thicknesses:
| S30/150 | S30/180 | S40 | S45 | S50 | S60 | S70 | ||||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 20mm | S355 | 32mm | S355 | 32mm | S355 | 40mm | S355 | 50mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 121 | 215 |
| 1300 | 129 | 235 |
| 1400 | 137 | 254 |
| 1500 | 145 | 273 |
| 1600 | 153 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |

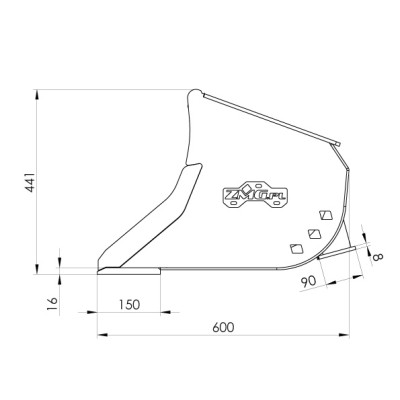

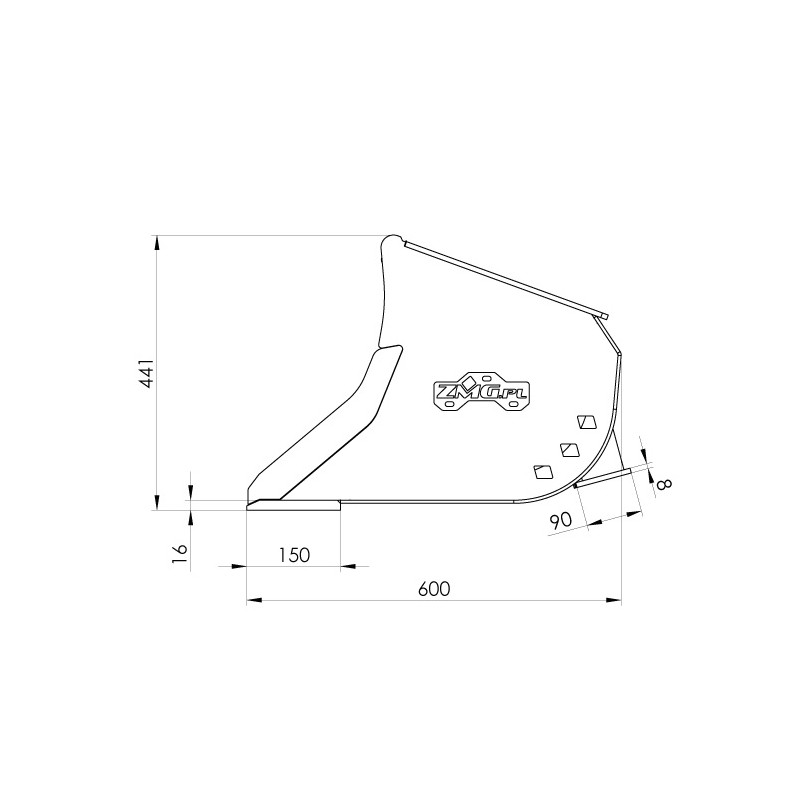

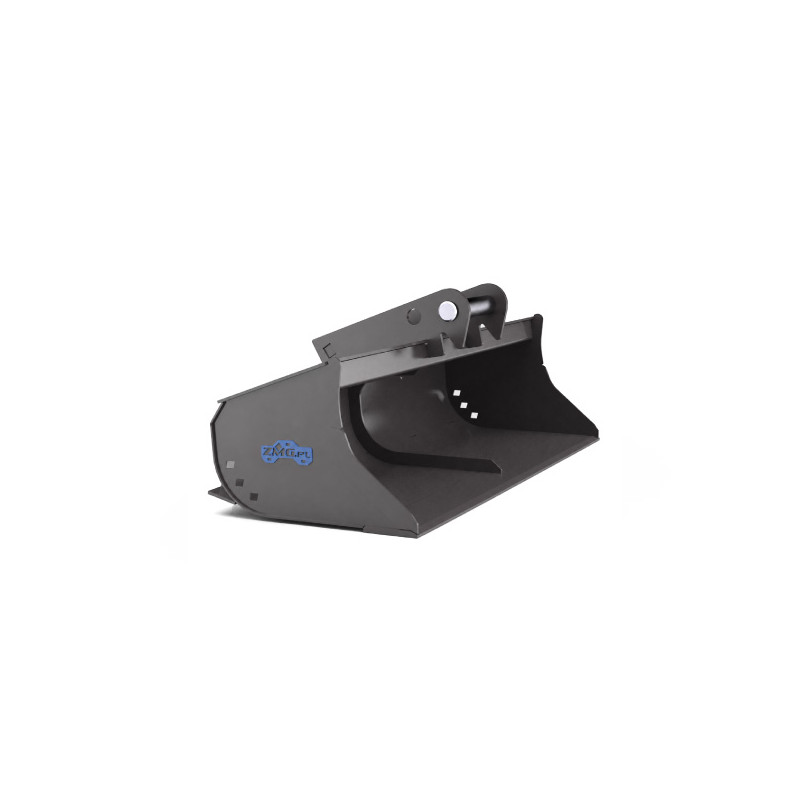

The LSS-ZMG4-1400-S50 ditch cleaning bucket with a working width of 1400 mm is a precision tool designed for excavators in the 6–10 t class. It is excellent for slope profiling, cleaning drainage ditches, and shaping terrain along roads and waterways. The S50 adapter is designed for the largest construction-class machines, providing stable and safe mounting of heavy working attachments. Thick steel plate and precisely executed welds guarantee the tool's resistance to deformation and abrasion when working in various soil types.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
