Ditch cleaning bucket 1800mm MS08SY class 6-9t
5,346.81 zł
Tax included
The TBS-S5-V1-1800-MS08SY-RB bucket is engineered for professionals working on extensive terrain, where both high productivity and precision are required. Its widened bucket shell enables fast material spreading and efficient ground leveling while maintaining excellent control. Made from high-grade steel with reinforced structural points, it guarantees long service life even under intense, continuous use. It is an excellent choice for land-reclamation work, cleanup tasks and advanced landscaping projects.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1600 | 182 | 315,1 |
| 1800 | 201 | 357 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S5-V1-1800-MS08SY-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- MS08SY
- Width
- 1800mm
- Weight without adapter
- 201kg
- Capacity
- 357 l
- Side/rear plate
- 6mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355

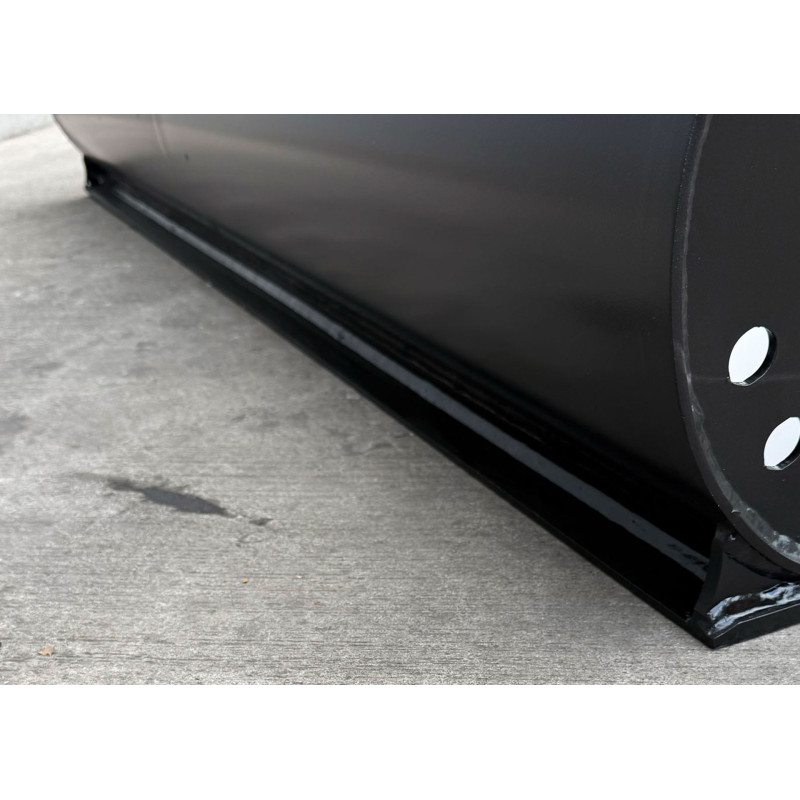

- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 8mm S355
- Bend plate
- 8mm S355
