Class: 6-9 T
Width: 1800
Adapter: M10

Ditch cleaning bucket 1800mm M10 class 6-9t

Ditch cleaning bucket 1800mm M10 class 6-9t

Name: Ditch cleaning bucket 1800mm M10 class 6-9t
Brand: Kalanto
SKU: TBS-S5-V1-1800-M10-RB
Price: 5346.81 PLN
Availability: InStock

5,346.81 zł Tax included

In stock Lead time up to 7 business days

Other models:

Width

Adapter

Adapter parameters

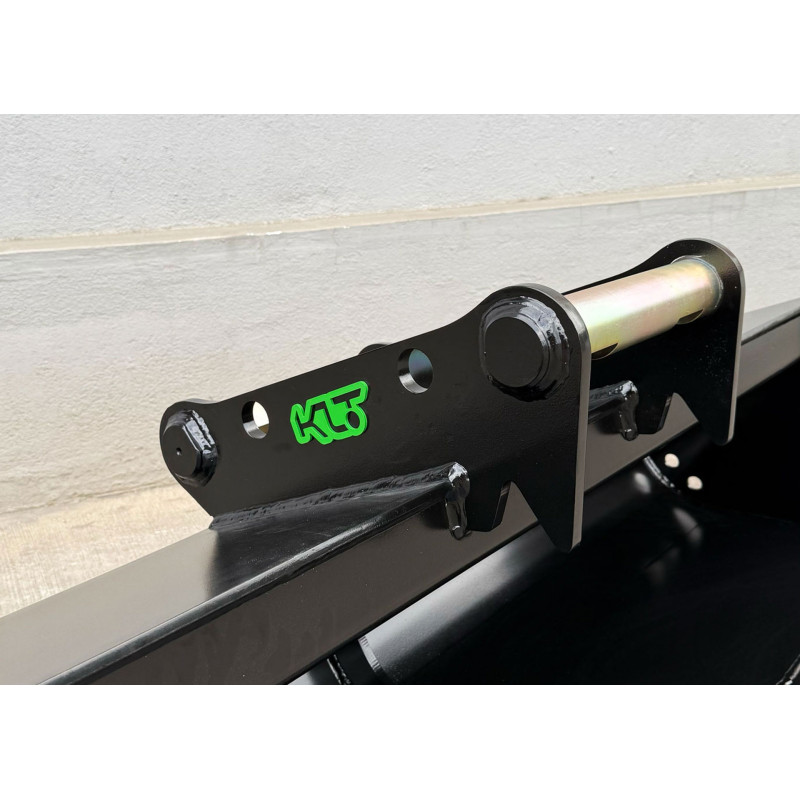

Adapter compatible with the Martin system- M10 with base plate

Reference: AD-WP-M10

The AD-WP-M10 is a heavy-duty adapter designed according to the Martin M10 standard and equipped with a reinforced base plate. Suitable for larger excavators, it provides stable attachment, efficient force transfer, and reliable performance during demanding tasks.

Lead time: up to 48 hours
For the machine: 4-5, 5-6, 6-7, 7-8, 8-9, 9-10
Adapter: M10
Side plate: 16 S355
Base plate: 20 S355
Pin diameter: 50
Inner width: 232
Pin spacing: 292
Weight: 41

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
M02	30	161	170
M03	35	184	180
M10	50	232	292

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	M02		M03		M10
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	12mm	S355	16mm	S355
Base plate:	16mm	S355	16mm	S355	20mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]
1600	182	315,1
1800	201	357

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400
Rear blade:	12x110 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	8 mm	S355
Internal reinforcement:	10 mm	S355

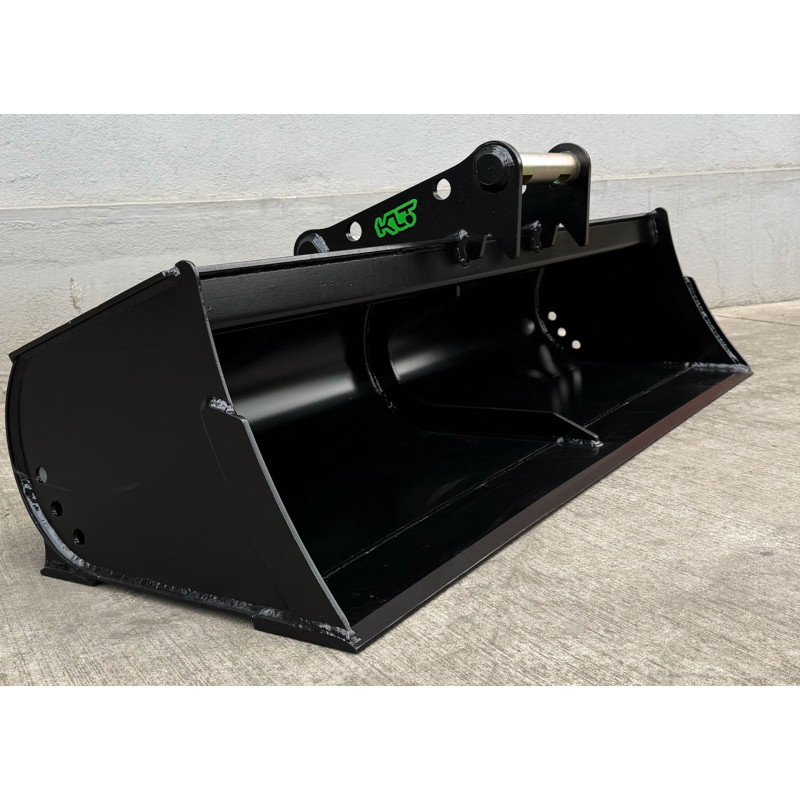

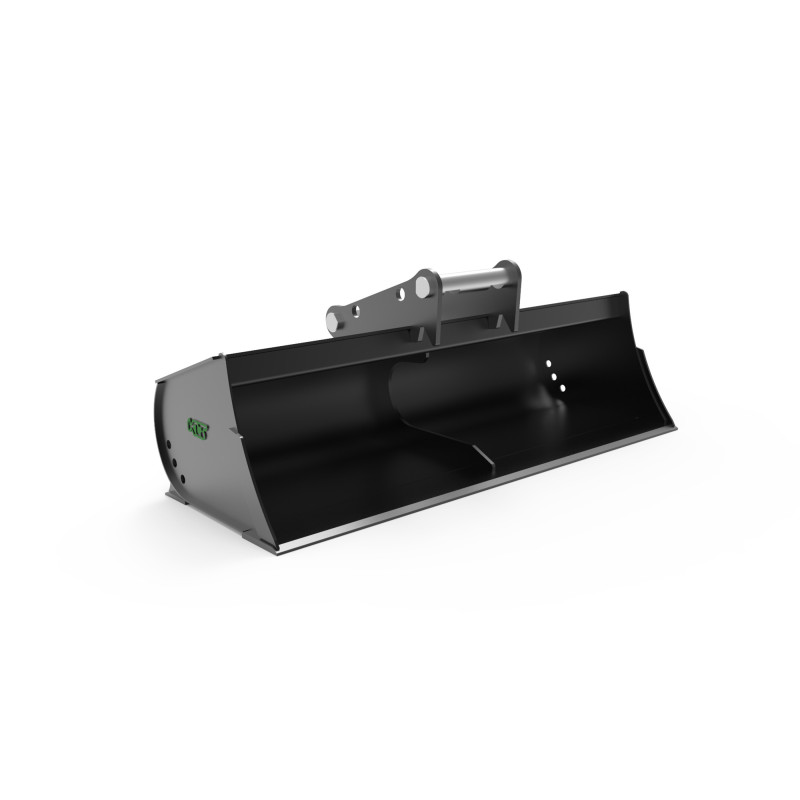

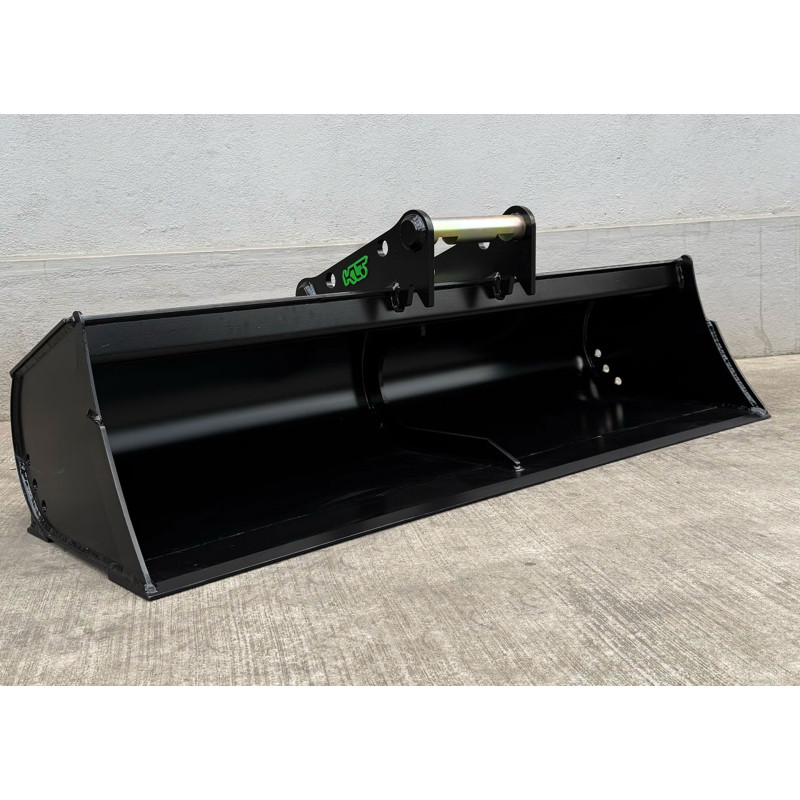

The TBS-S5-V1-1800-M10-RB is a professional wide ditch-cleaning bucket designed for 6–9-ton excavators, ideal for projects requiring high output and precise shaping. It performs exceptionally in slope creation, large-area profiling, ditch cleaning and general site maintenance. Its deep, wide and ergonomically curved shell ensures even material distribution and leaves a smooth, clean finish. The robust, reinforced steel construction provides excellent durability and reliability, making it suitable for the most demanding applications.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference TBS-S5-V1-1800-M10-RB

Data sheet

Lead time: up to 7 business days
For the machine: 6-7
7-8
8-9
Adapter: M10
Width: 1800
Weight without adapter: 201
Capacity: 357
Side/rear plate: 6 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16x150 HB400
Rear blade: 12x110 HB400
Internal reinforcement: 10 S355
Top plate: 8 S355
Bend plate: 8 S355
