Class: 6-9 T
Width: 1800
Adapter: S50

Ditch cleaning bucket 1800mm S50 class 6-9t

Ditch cleaning bucket 1800mm S50 class 6-9t

Name: Ditch cleaning bucket 1800mm S50 class 6-9t
Brand: Kalanto
SKU: TBS-S5-V1-1800-S50-RB
Price: 5346.81 PLN
Availability: InStock

5,346.81 zł Tax included

In stock Lead time up to 7 business days

Other models:

Width

Adapter

Adapter parameters

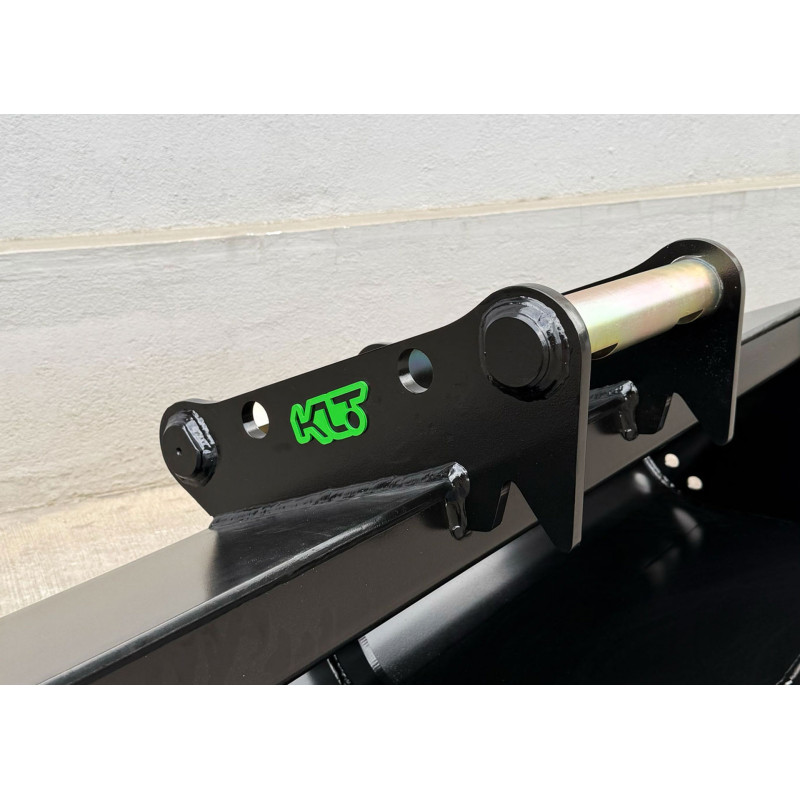

Adapter compatible with the Volvo system- S50 without base plate

Reference: AD-WOP-S50

AD-WOP-S50 is fully compatible with the Volvo S50 system and allows quick attachment of tools without a base plate. Strong and overload-resistant, it supports efficient machine retooling in varying terrain conditions.

Lead time: up to 48 hours
For the machine: 5-6, 6-7, 7-8, 8-9, 9-10, 10-11, 11-12
Adapter: S50
Side plate: 32 S355
Pin diameter: 50
Inner width: 272
Pin spacing: 430,5
Weight: 21

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]
1600	182	315,1
1800	201	357

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400
Rear blade:	12x110 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	8 mm	S355
Internal reinforcement:	10 mm	S355

The TBS-S5-V1-1800-S50-RB is a professional wide ditch-cleaning bucket designed for 6–9-ton excavators, ideal for projects requiring high output and precise shaping. It performs exceptionally in slope creation, large-area profiling, ditch cleaning and general site maintenance. Its deep, wide and ergonomically curved shell ensures even material distribution and leaves a smooth, clean finish. The robust, reinforced steel construction provides excellent durability and reliability, making it suitable for the most demanding applications.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference TBS-S5-V1-1800-S50-RB

Data sheet

Lead time: up to 7 business days
For the machine: 6-7
7-8
8-9
Adapter: S50
Width: 1800
Weight without adapter: 201
Capacity: 357
Side/rear plate: 6 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16x150 HB400
Rear blade: 12x110 HB400
Internal reinforcement: 10 S355
Top plate: 8 S355
Bend plate: 8 S355
