- Class: 6-9 T
- Width: 1600
- Adapter: MS08SY
Reference: AD-WOP-MS08SY

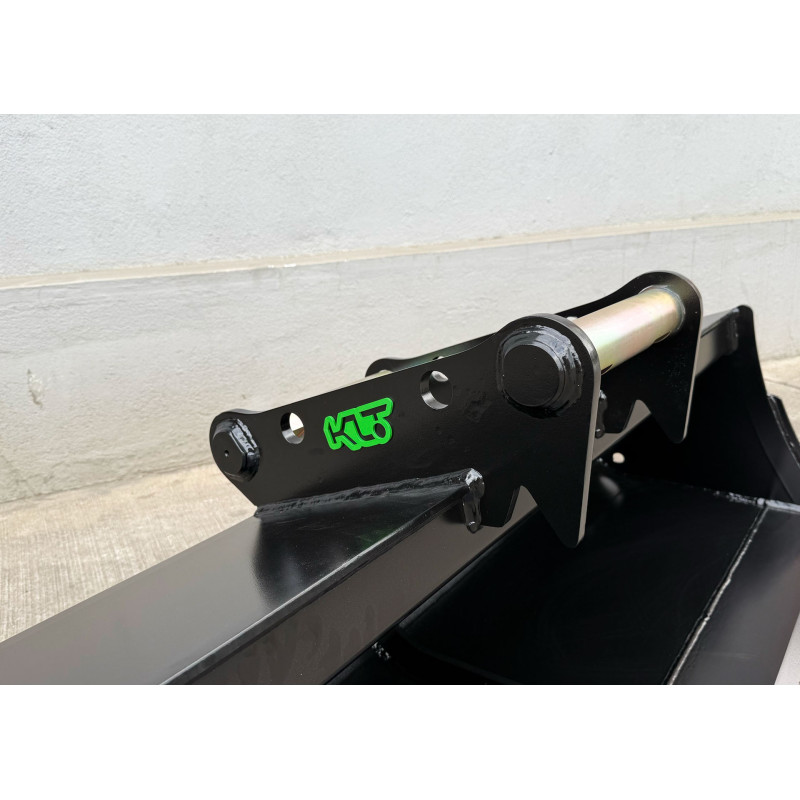

Built for the MS08SY system, the AD-WOP-MS08SY is a durable base-plate-free adapter. It provides high precision during attachment and enables rapid tool coupling, significantly reducing retooling time.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1600 | 182 | 315,1 |
| 1800 | 201 | 357 |
*The given bucket weight does not include the weight of the adapter.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |

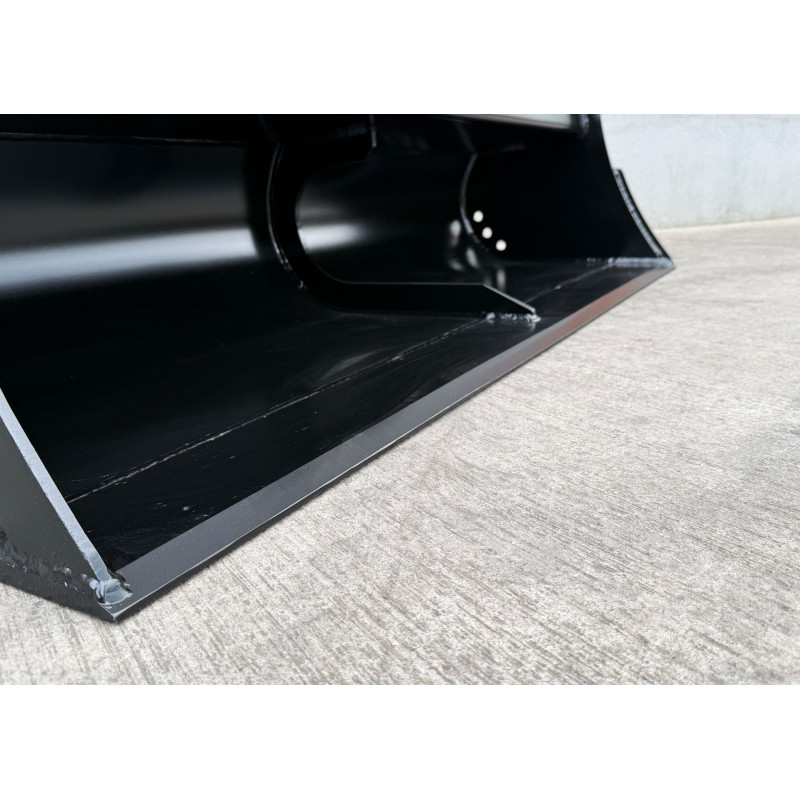

| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |

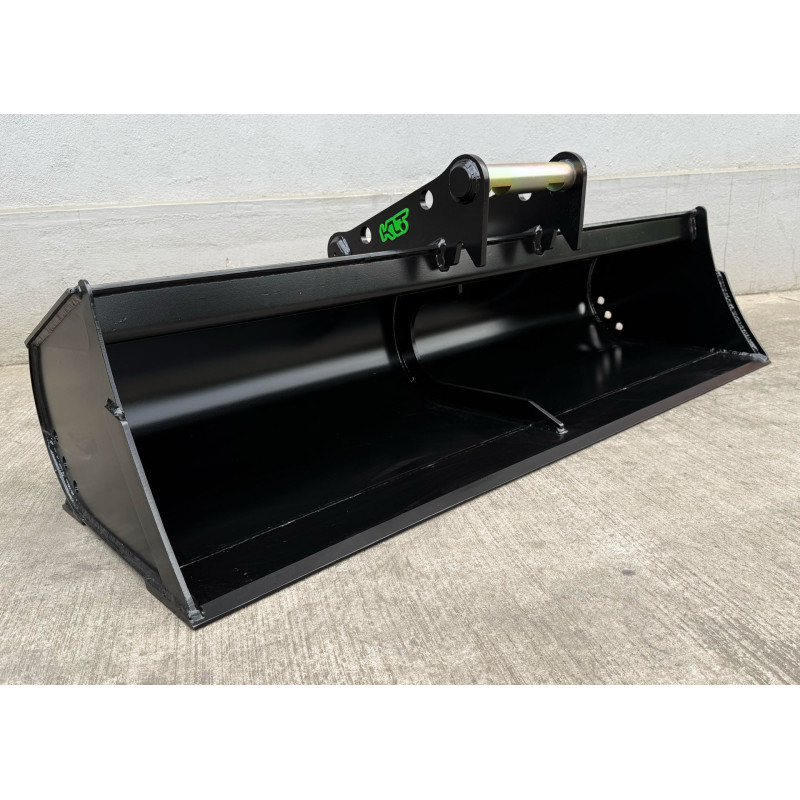

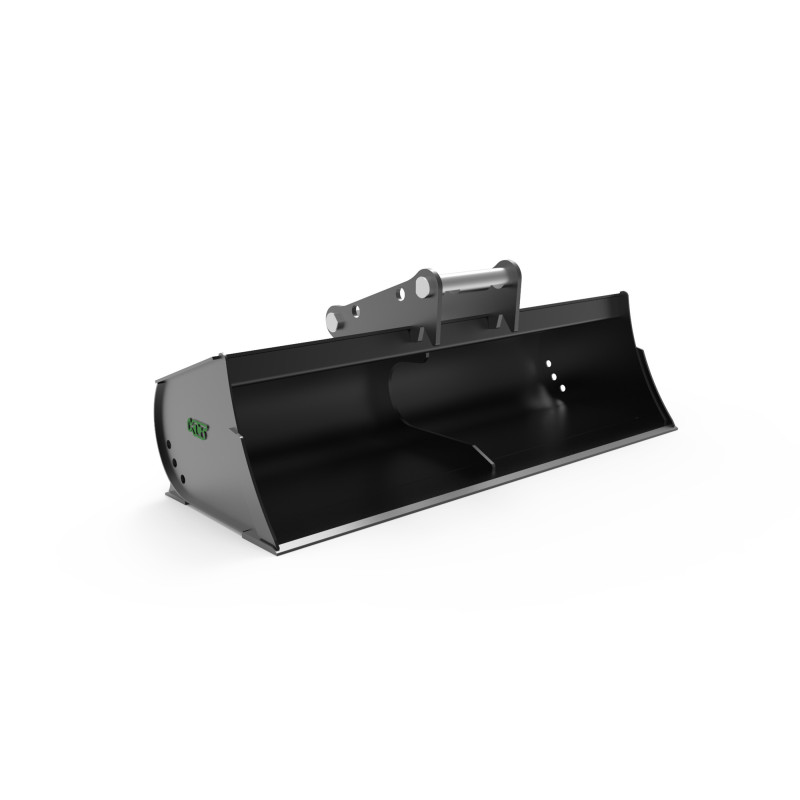

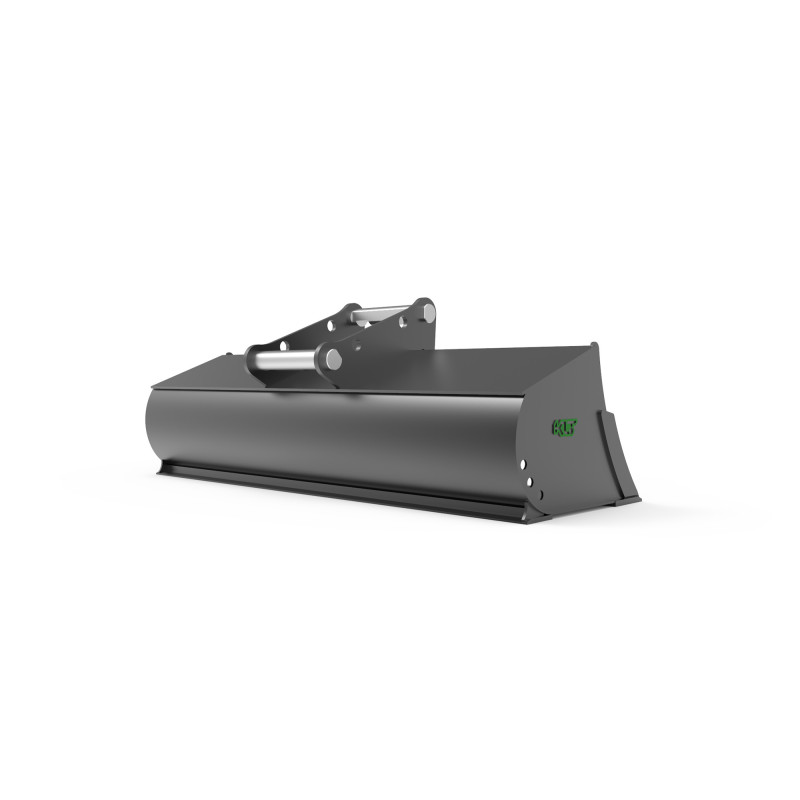

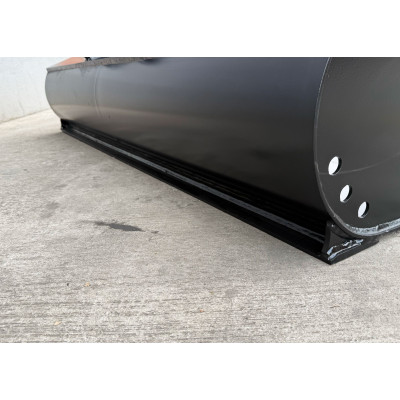

The TBS-S5-V1-1600-MS08SY-RB is a ditch-cleaning bucket designed for excavators weighing between 6 and 9 tons. Built for intensive work over large areas, it excels at precise slope shaping, ground leveling, roadside and ditch cleaning, as well as general maintenance and land reclamation tasks. The TBS-S5 combines high capacity with precise control, offering the operator excellent handling and working comfort. It is a reliable tool for professionals performing advanced earthmoving operations where durability.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
