Ditch cleaning bucket 1400mm MS03SY class 3-4t
3,252.12 zł
Tax included
The TBS-S3-V1-1400-MS03SY-RB bucket is a versatile attachment for 3–4-ton excavators, ideal for tasks that require a larger working width and high precision. Its wider shell makes it highly effective for profiling large areas, backfilling wide trenches and cleaning longer ditch or roadside sections. Reinforced high-strength steel construction and an optimized bucket geometry ensure durability, rigidity and smooth performance under demanding conditions. The gently curved shell improves material flow and helps achieve perfectly even, high-quality surfaces.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 109 | 162 |
| 1400 | 125 | 191,3 |
* The given bucket weight does not include the weight of the adapter.

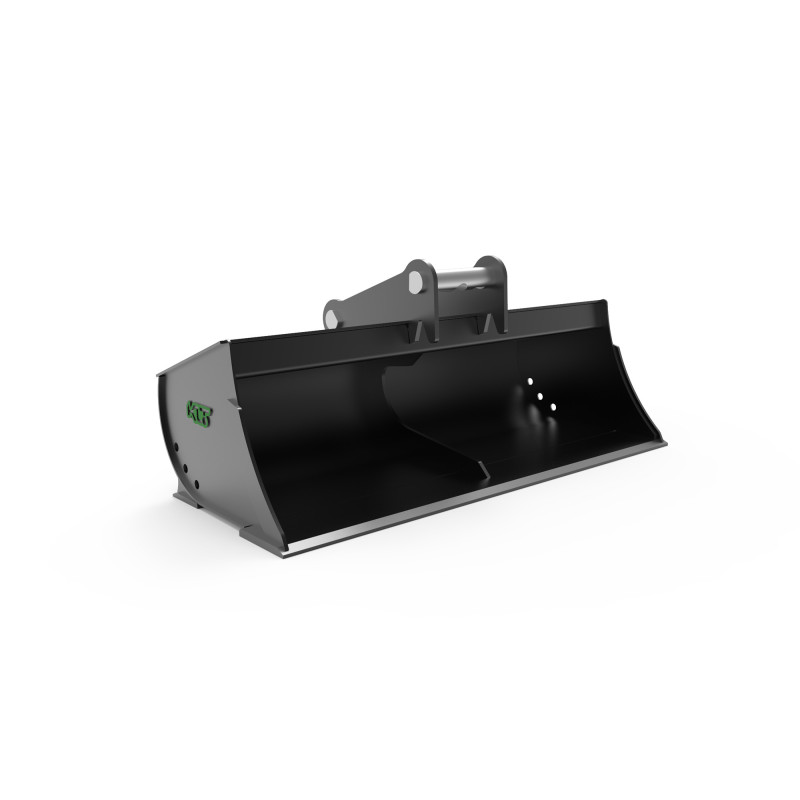

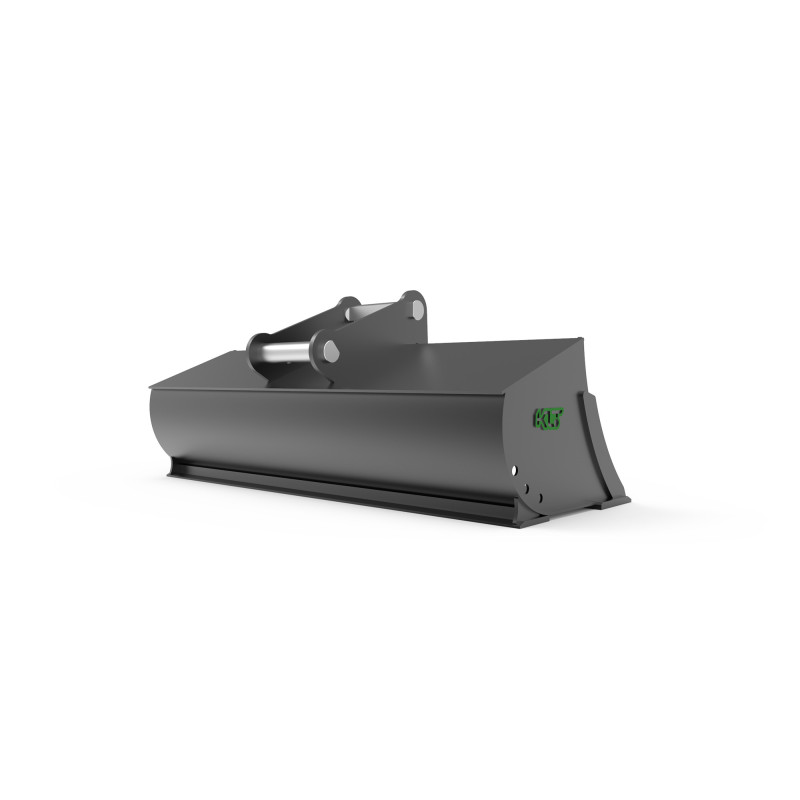

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S3-V1-1400-MS03SY-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- MS03SY
- Width
- 1400mm
- Weight without adapter
- 125kg
- Capacity
- 191,3 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 6mm S355
- Bend plate
- 6mm S355
