- Class: 3-4 T
- Width: 1000
- Adapter: Without adapter
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 67 | 111 |
| 1100 | 72 | 123 |
| 1200 | 78 | 135 |
| 1300 | 83 | 146 |
| 1400 | 89 | 158 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |

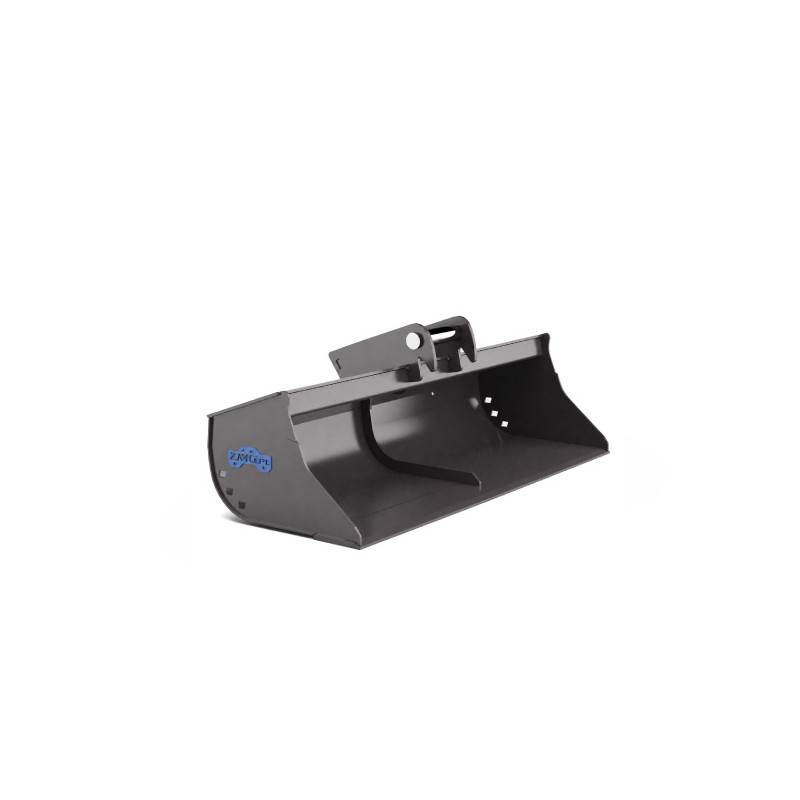

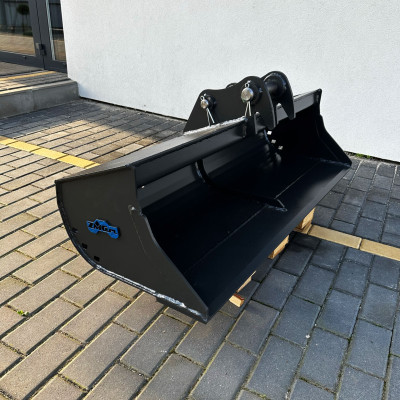

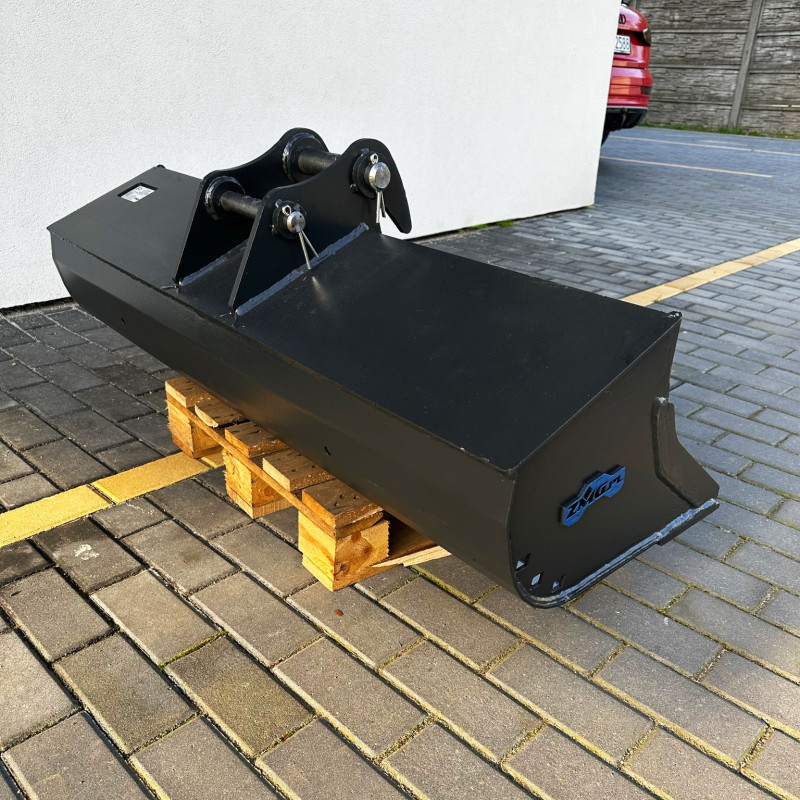

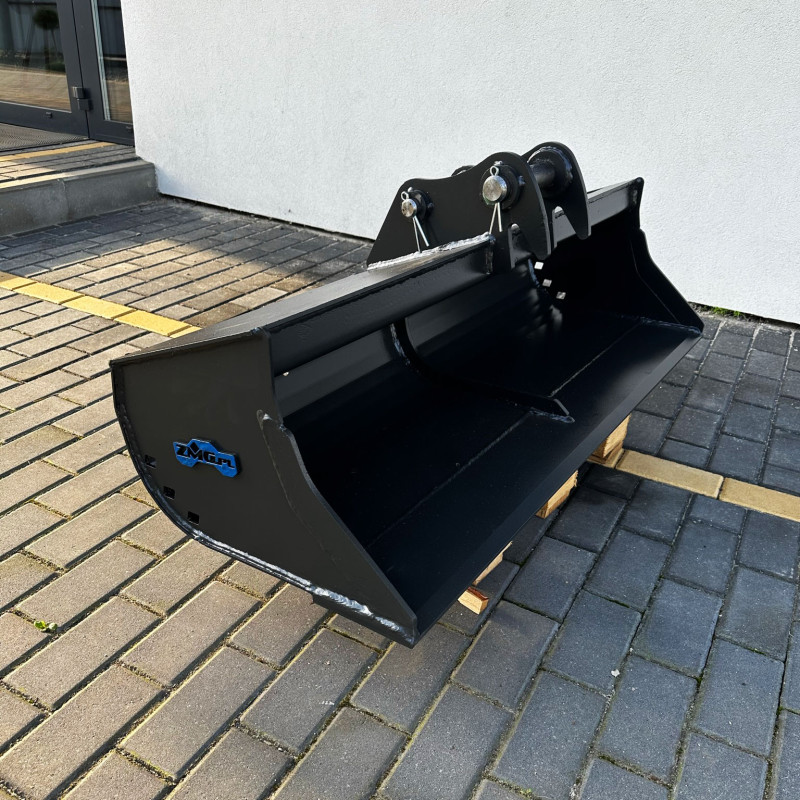

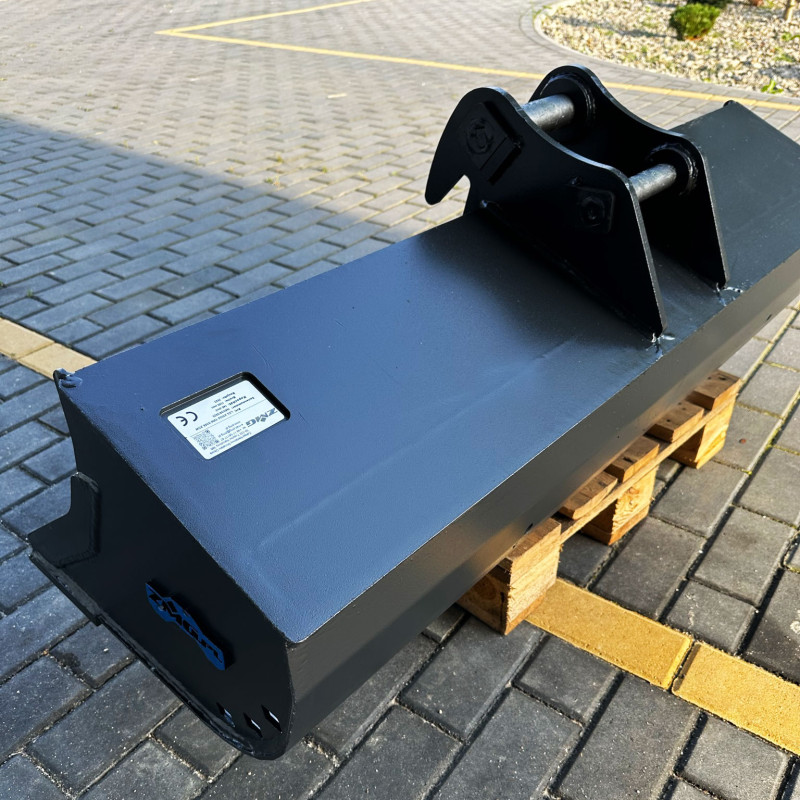

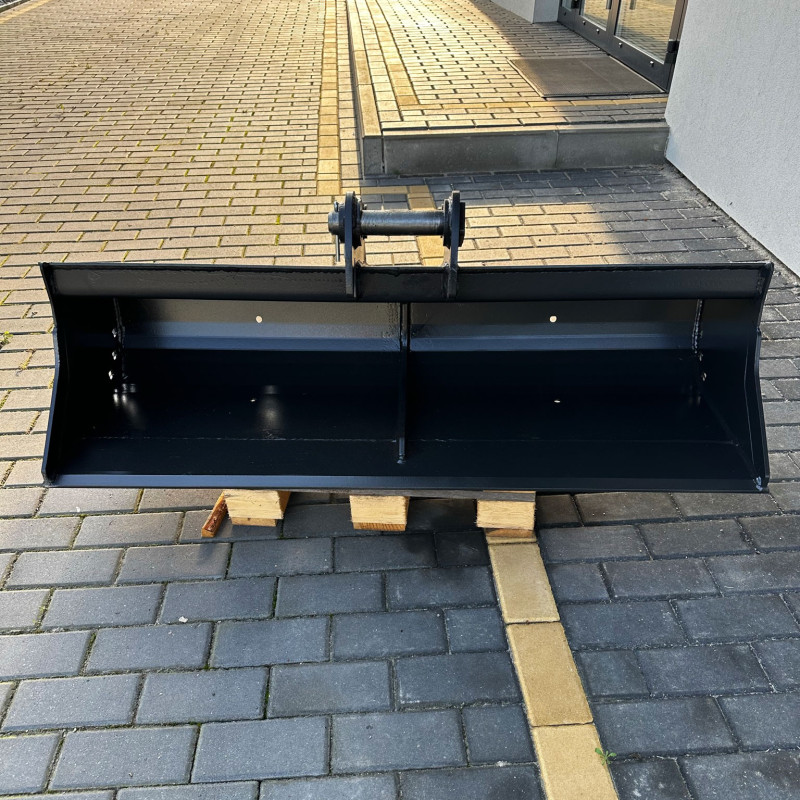

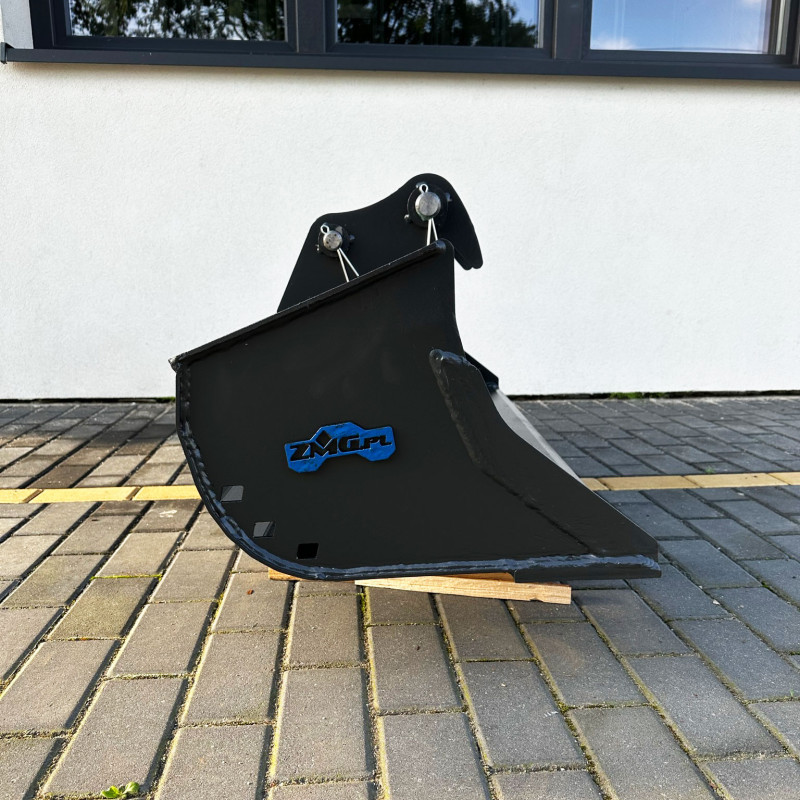

The LSS-ZMG2-1000-WOA series is a 1000 mm ditch cleaning bucket designed for excavators in the 2–4 t class. The tool enables efficient slope forming, ditch cross-section shaping, gradient levelling, and any work requiring a flat, even profile. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. S355 steel construction and reinforced working edges ensure durability and geometric precision throughout the bucket's service life.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
