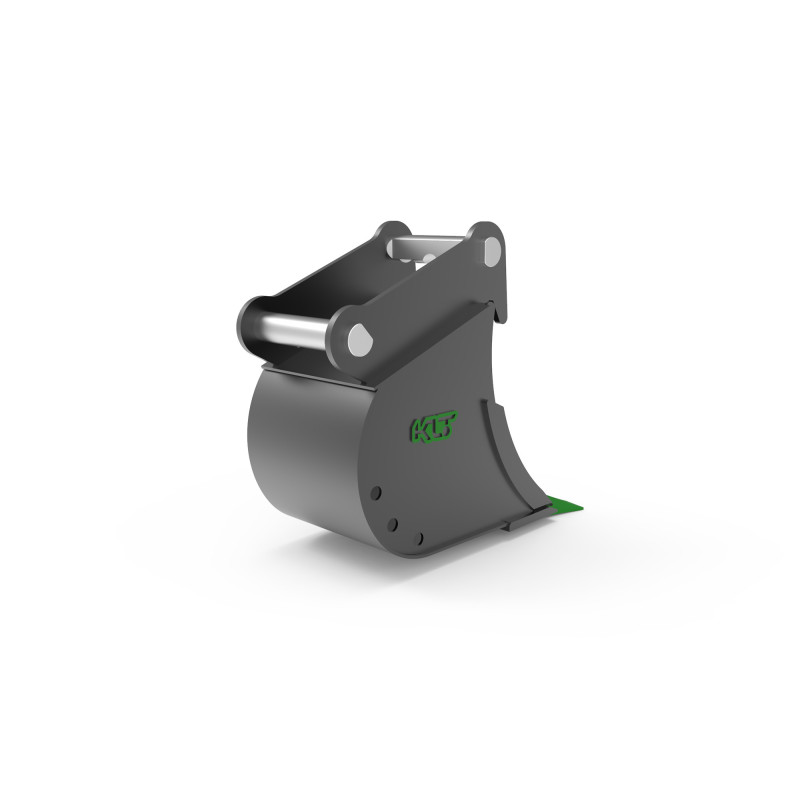

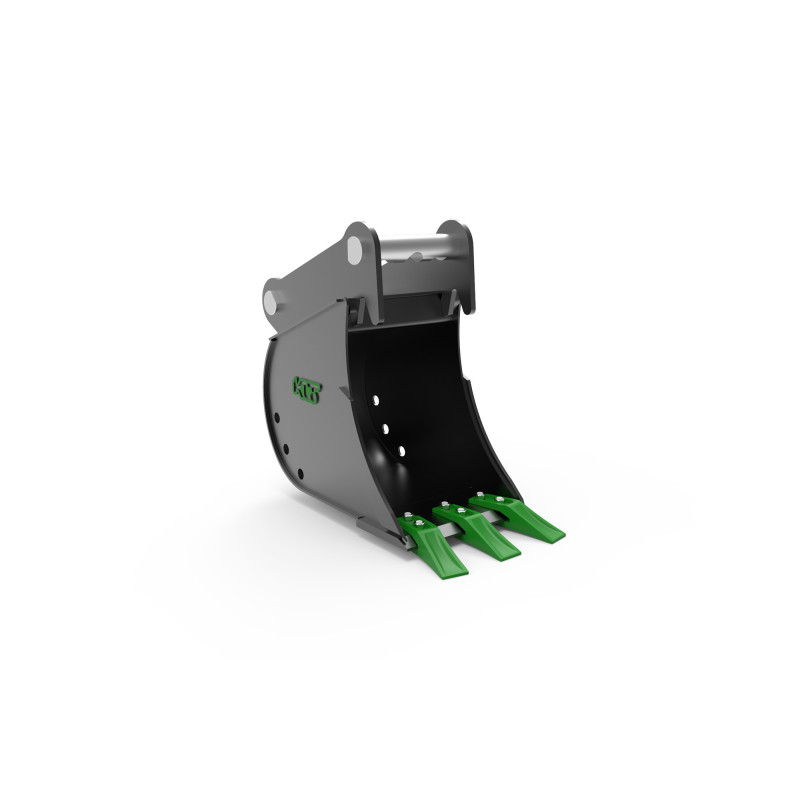

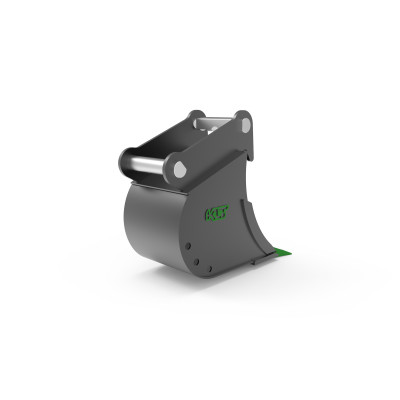

Digging bucket 800mm S30/180 class 2-3t
2,206.62 zł
Tax included
DBS-S2-V1-800-S30/180 offers a robust and practical solution for mini excavators performing trenching, foundation excavation and terrain preparation.
The bucket's optimized geometry ensures precision, performance and high operator comfort.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 300 | 33 | 39 | 3 |
| 400 | 39 | 56 | 3 |
| 500 | 46 | 73 | 4 |
| 600 | 53 | 91 | 4 |
| 800 | 67 | 125 | 5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S2-V1-800-S30/180
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- S30/180
- Width
- 800mm
- Weight without adapter
- 67kg
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E11.4
