Class: 4-6 T
Width: 350
Adapter: MS03

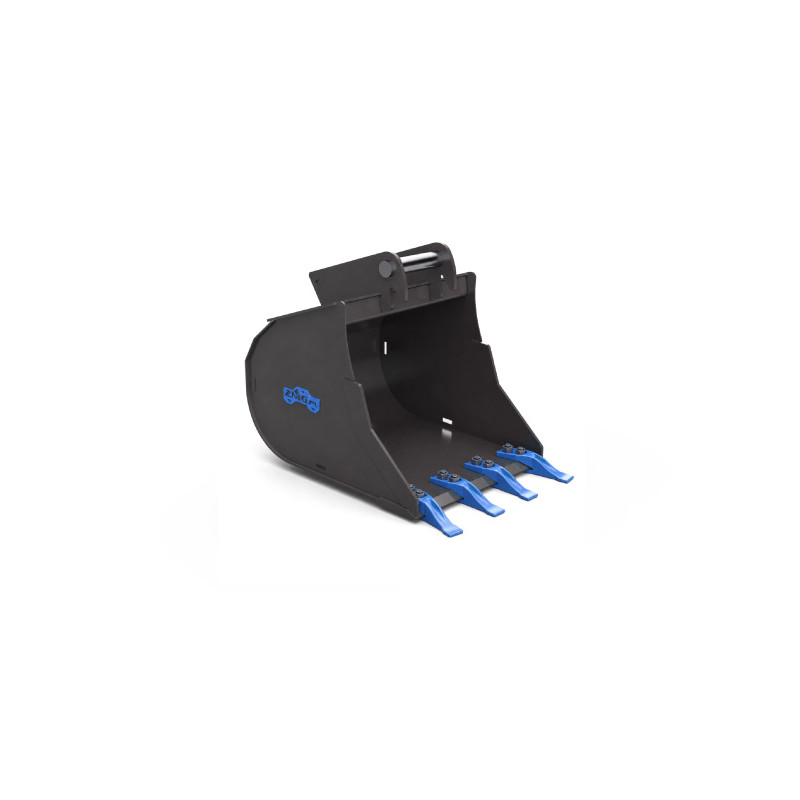

Digging bucket 350mm MS03 class 4-6t

Name: Digging bucket 350mm MS03 class 4-6t
Brand: ZMG
SKU: LK-ZMG3-350-MS03
Price: 2174.64 PLN
Availability: InStock

2,174.64 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS03-without base plate

Reference: AD-WOP-MS03

Based on the Lehnhoff MS03 standard, the AD-WOP-MS03 is a base-plate-free design offering high durability and quick tool coupling. It guarantees smooth operation even in demanding working conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 2-3, 3-4, 4-5
Adapter: MS03
Side plate: 12 S355
Pin diameter: 50
Inner width: 205
Pin spacing: 283,6
Weight: 14

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
300	64	65	3
350	69	80	3
400	74	94	3
450	80	110	4
500	85	125	4
600	96	157	4
700	107	189	5
800	118	221	5
900	129	253	5
1000	139	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	5 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

Model LK-ZMG3-350-MS03 is a professional 350 mm digging bucket intended for medium-class excavators of 4–6 t. It excels in excavation work, soil removal, trenching, and all types of civil engineering operations on construction sites. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG3

Reference LK-ZMG3-350-MS03

Data sheet

Lead time: up to 3 business weeks
For the machine: 4-5
5-6
Adapter: MS03
Width: 350
Weight without adapter: 69
Capacity: 80
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 5 S355
Number of teeth: 3
Type of teeth: JCB
