Class: 0-2 T
Width: 600
Adapter: MS01SY

HIT

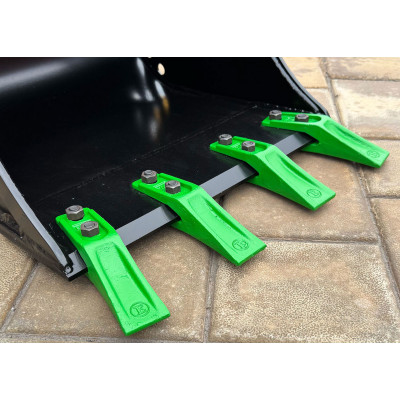

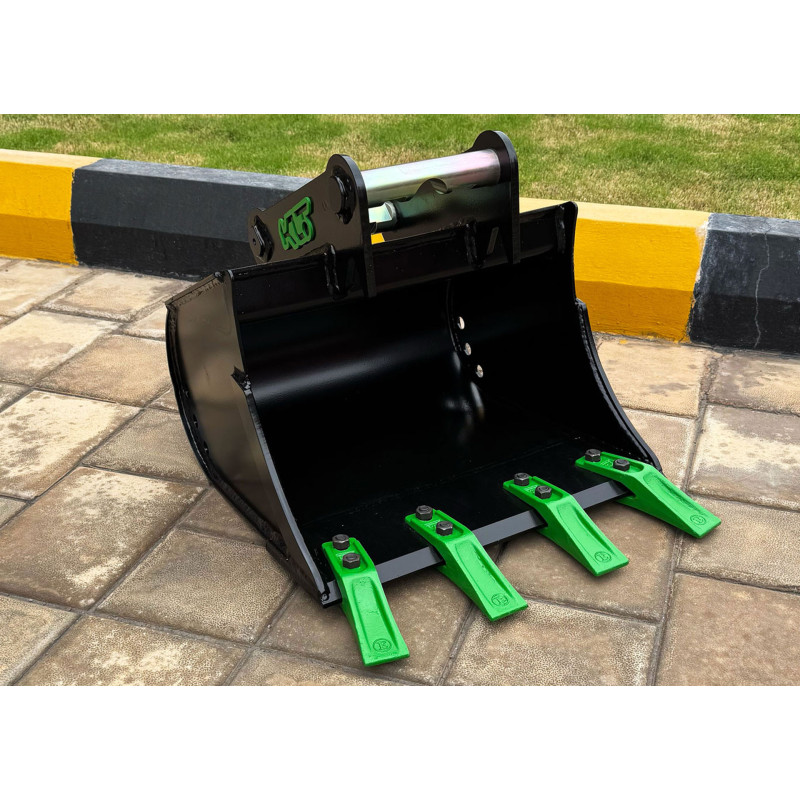

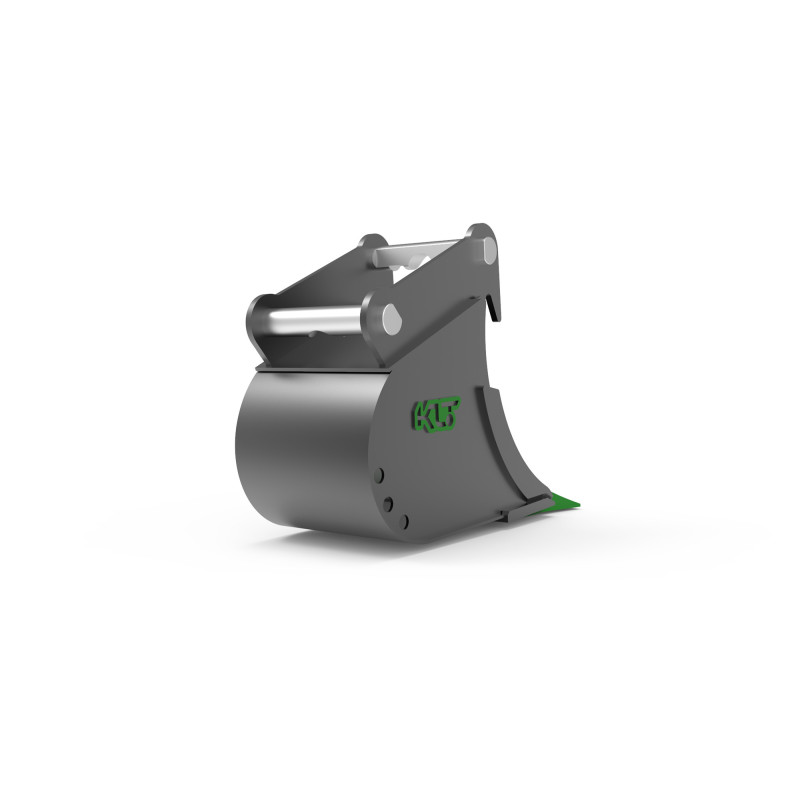

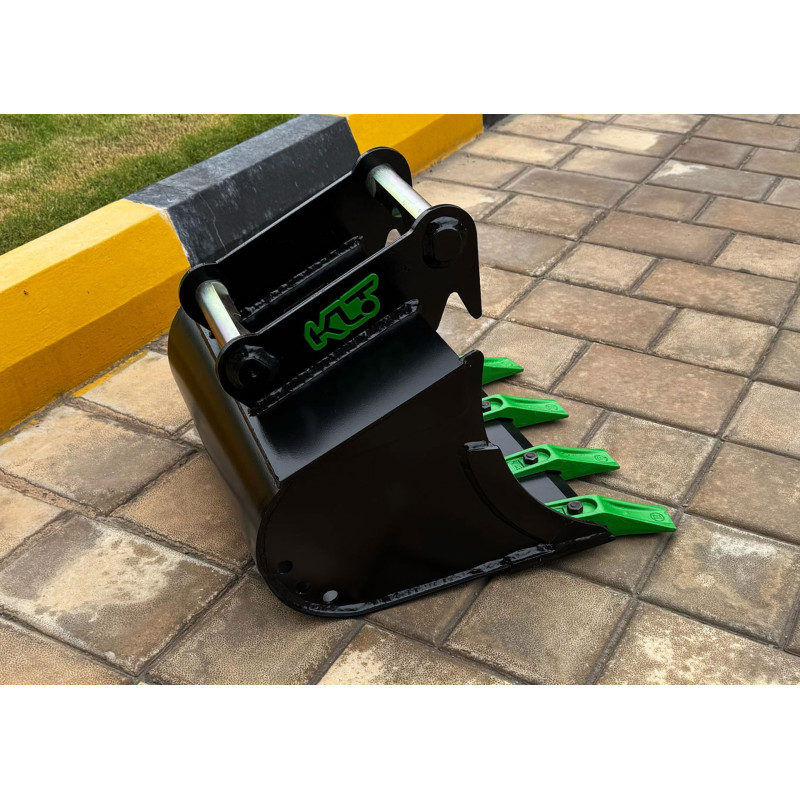

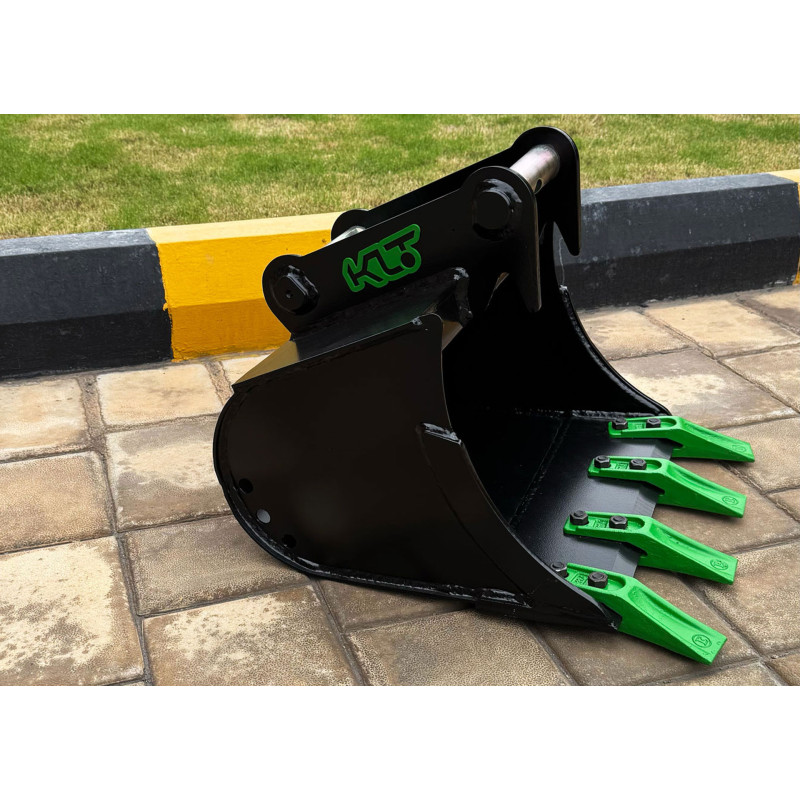

Digging bucket 600mm MS01SY class 0-2t

Name: Digging bucket 600mm MS01SY class 0-2t
Brand: Kalanto
SKU: DBS-S1-V1-600-MS01SY
Price: 1346.85 PLN
Availability: InStock

1,346.85 zł Tax included

In stock Lead time up to 48 hours

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS01SY-without base plate

Reference: AD-WOP-MS01SY

The AD-WOP-MS01SY adapter, compliant with the MS01SY system, allows fast tool switching without the need for a base plate. It is an ideal option for users seeking maximum functionality, minimal weight, and high versatility.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 0-1, 1-2
Adapter: MS01SY
Side plate: 10 S355
Pin diameter: 40
Inner width: 185
Pin spacing: 255
Weight: 8

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	21	25	2
300	25	31	3
400	30	43	3
450	34	49	4
500	37	55	4
600	42	67	4
800	53	91	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
	Type
Teeth:	E11.4

Watch video (2)

Alternative products with a different lead time:

DBS-S1-V1-600-MS01SY is a durable small-scale digging bucket created for mini excavators ranging between 0 and 2 tons. It is perfect for precise earthmoving in cramped areas, including trenching, installation jobs, and landscaping work.

The reinforced steel structure ensures outstanding strength and longevity. Thanks to the optimized bucket shape, material loading and release are greatly improved, boosting efficiency in tough soil conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S1-V1-600-MS01SY

Data sheet

Lead time: up to 48 hours
For the machine: 0-1
1-2
Adapter: MS01SY
Width: 600
Weight without adapter: 42
Capacity: 67
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: E11.4

Specific References

EAN13: 5908159220643

Watch the videos
