Class: 4-6 T
Width: 300
Adapter: with pins

Digging bucket 300mm with pins class 4-6t

Digging bucket 300mm with pins class 4-6t

Name: Digging bucket 300mm with pins class 4-6t
Brand: ZMG
SKU: LK-ZMG3-300-ZSW
Price: 2248.44 PLN
Availability: InStock

2,248.44 zł

Tax included

In stock Lead time: up to 3 business weeks

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
300	64	65	3
350	69	80	3
400	74	94	3
450	80	110	4
500	85	125	4
600	96	157	4
700	107	189	5
800	118	221	5
900	129	253	5
1000	139	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	5 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

The LK-ZMG3-300-ZSW is a 300 mm digging bucket created to meet the demands of medium-class excavators of 4–6 t. It performs well in earthmoving, excavation, grading, and breaking through soils of varying hardness. Pin mounting provides a traditional, proven and robust connection between the attachment and the excavator arm, independent of any quick coupler system. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

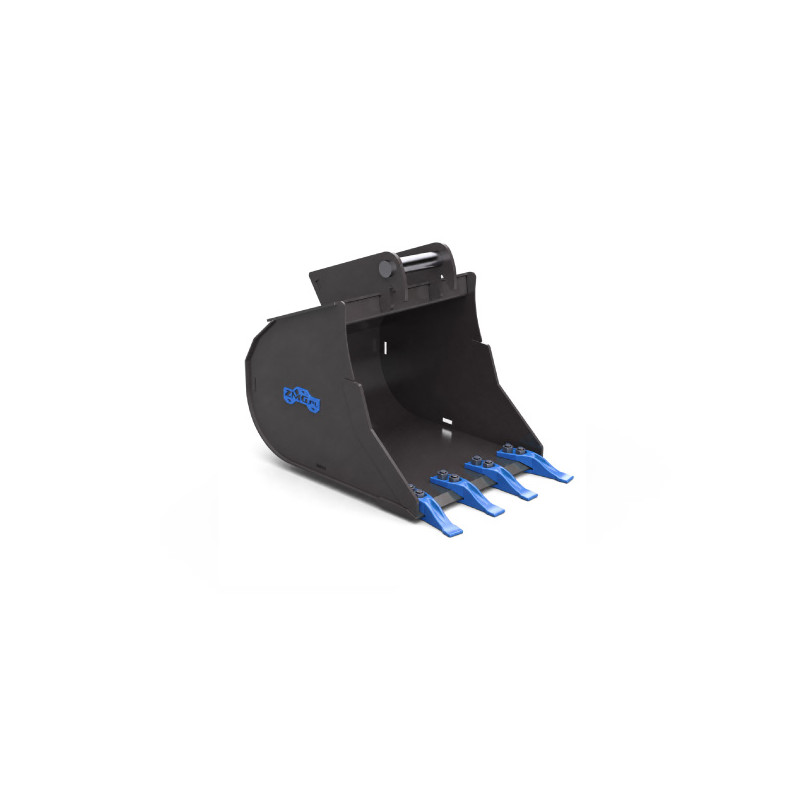

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG3

Reference LK-ZMG3-300-ZSW

Data sheet

Lead time: up to 3 business weeks
For the machine: 4-5
5-6
Adapter: with pins
Width: 300
Weight without adapter: 64
Capacity: 65
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 5 S355
Number of teeth: 3
Type of teeth: JCB
