Class: 3-4 T
Width: 600
Adapter: CW05

Digging bucket 600mm CW05 class 3-4t

Name: Digging bucket 600mm CW05 class 3-4t
Brand: ZMG
SKU: LK-ZMG2-5-600-CW05
Price: 2480.91 PLN
Availability: InStock

2,480.91 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Verachtert system- CW05-without base plate

Reference: AD-WOP-CW05

The AD-WOP-CW05 model, designed in line with the Verachtert CW05 system standards, offers high functionality without the use of a base plate. It is lightweight yet very durable, allowing quick tool connection and ensuring reliable machine performance in everyday tasks.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 0-1, 1-2, 2-3, 3-4
Adapter: CW05
Side plate: 20 S355
Pin diameter: 40
Inner width: 180
Pin spacing: 200
Weight: 9

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
CW05	40	180	200
CW10	50	320	300
CW20/30/40	60	560	475

Parameters

The main components are made of the following materials and thicknesses:

	CW05		CW10		CW20/30/40
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	35mm	HB400

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	42	44	2
300	47	55	3
350	52	66	3
400	57	78	3
450	62	90	4
500	67	102	4
600	79	125	4
700	89	150	5
800	100	174	5
900	110	211	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	6 mm	S355
Bend plate:	5 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

Alternative products with a different lead time:

up to 6 business weeks Class: 3-4 T Solid Hitch 5,548.16 zł

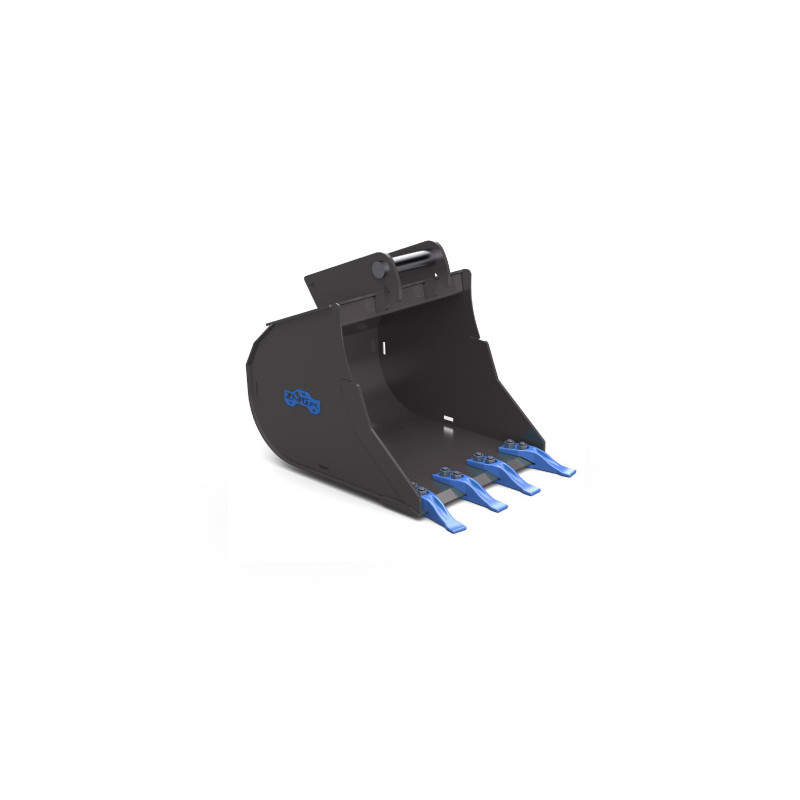

Model LK-ZMG2-5-600-CW05 is a professional 600 mm digging bucket intended for excavators in the 3–4 t class. It excels in excavation work, soil removal, trenching, and all types of civil engineering operations on construction sites. The Verachtert CW05 quick coupler system guarantees a solid and safe machine connection, providing flexibility in attachment selection. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG2-5

Reference LK-ZMG2-5-600-CW05

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
Adapter: CW05
Width: 600
Weight without adapter: 79
Capacity: 125
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 6 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB
