Class: 3-4 T
Width: 700
Adapter: MS03SY

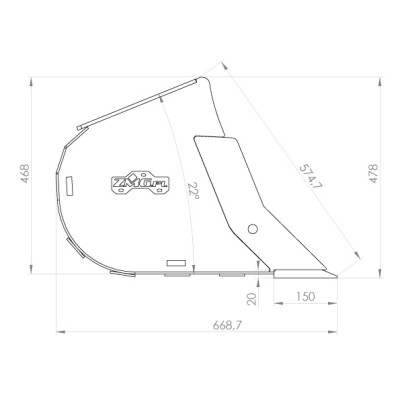

Digging bucket 700mm MS03SY class 3-4t

Name: Digging bucket 700mm MS03SY class 3-4t
Brand: ZMG
SKU: LK-ZMG2-5-700-MS03SY
Price: 2961.84 PLN
Availability: InStock

2,961.84 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS03SY-without base plate

Reference: AD-WOP-MS03SY

The AD-WOP-MS03SY is a lightweight yet strong adapter built for the Lehnhoff MS03SY system. It offers fast tool connection without a base plate, making it a perfect choice for operators who value versatility and efficiency.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 2-3, 3-4, 4-5
Adapter: MS03SY
Side plate: 12 S355
Pin diameter: 50
Inner width: 205
Pin spacing: 322
Weight: 15

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	42	44	2
300	47	55	3
350	52	66	3
400	57	78	3
450	62	90	4
500	67	102	4
600	79	125	4
700	89	150	5
800	100	174	5
900	110	211	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	6 mm	S355
Bend plate:	5 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

Alternative products with a different lead time:

up to 6 business weeks Class: 3-4 T Solid Hitch 6,188.13 zł

Model LK-ZMG2-5-700-MS03SY is a professional 700 mm digging bucket intended for excavators in the 3–4 t class. It excels in excavation work, soil removal, trenching, and all types of civil engineering operations on construction sites. The hydraulic Lehnhoff MS03SY quick coupler lets the operator change attachments without leaving the cab, increasing productivity and safety. Thick S355 steel plate and HB400 steel cutting edges guarantee abrasion resistance and reliability in all terrain conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG2-5

Reference LK-ZMG2-5-700-MS03SY

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
Adapter: MS03SY
Width: 700
Weight without adapter: 89
Capacity: 150
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 6 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: JCB
