Class: 0-2 T
Width: 250
Adapter: MS01

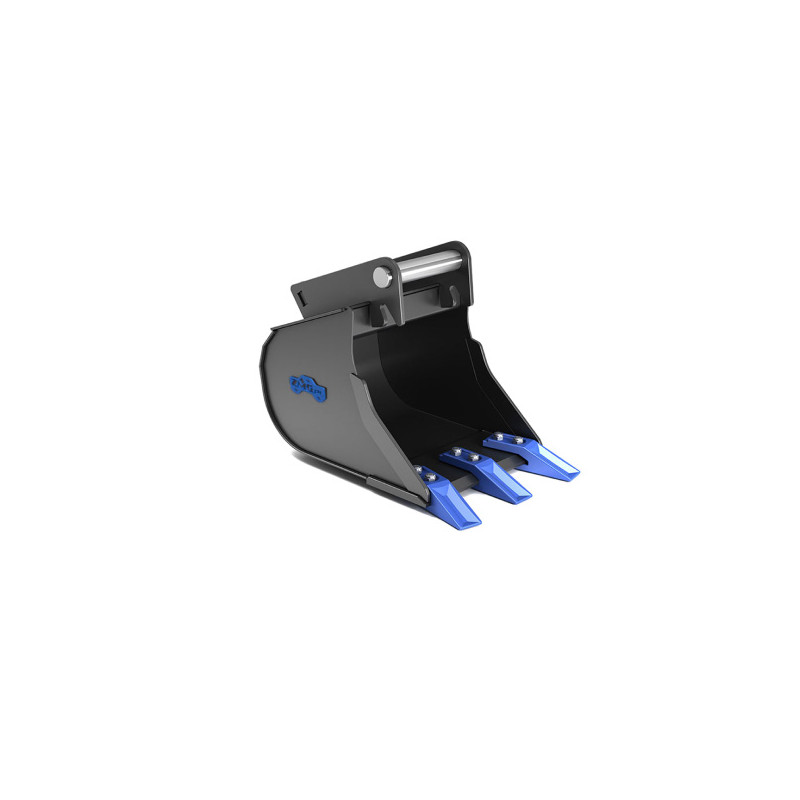

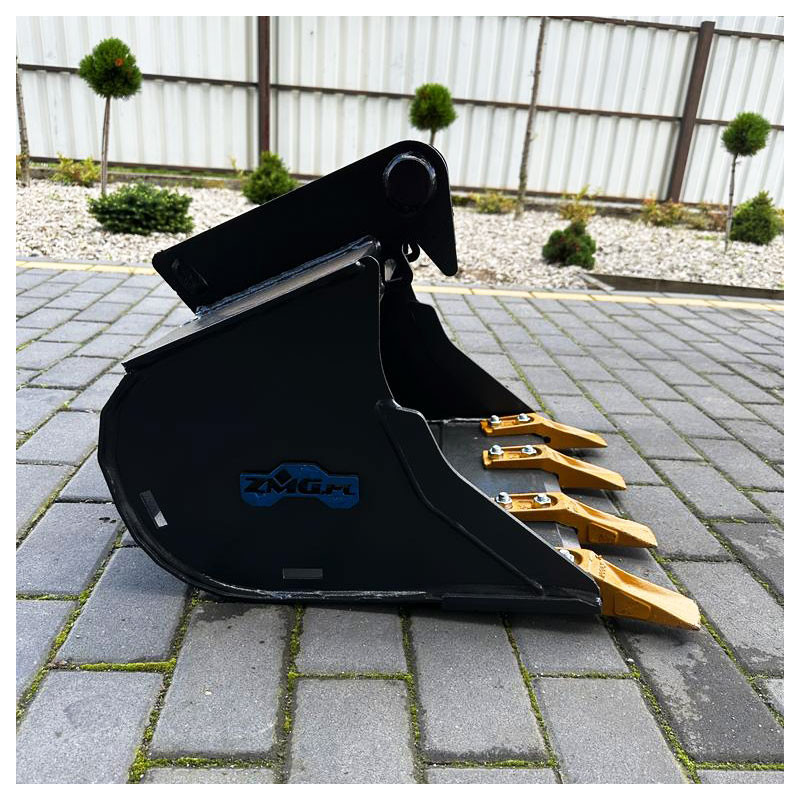

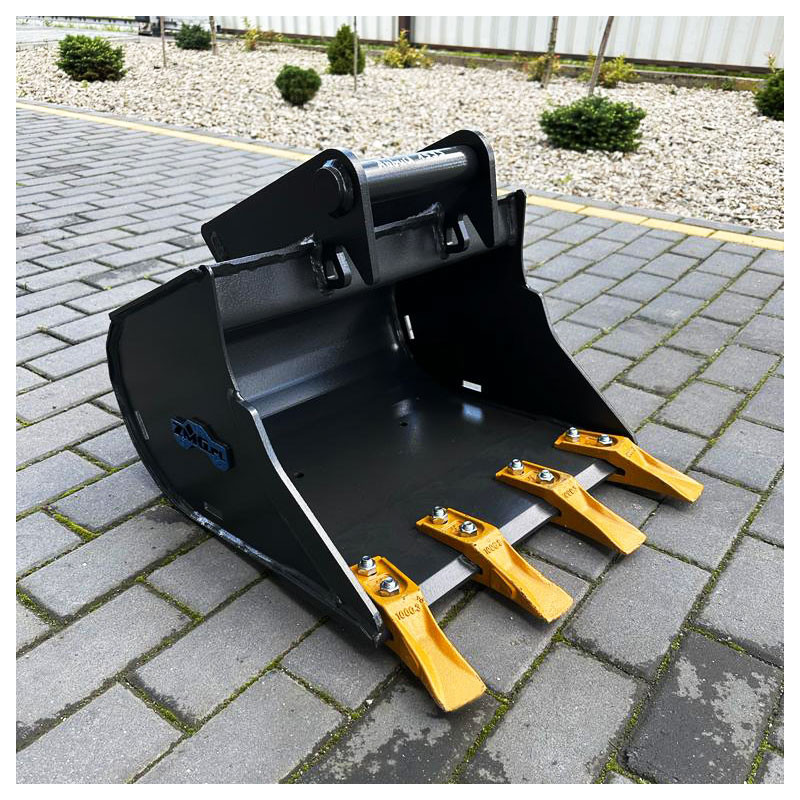

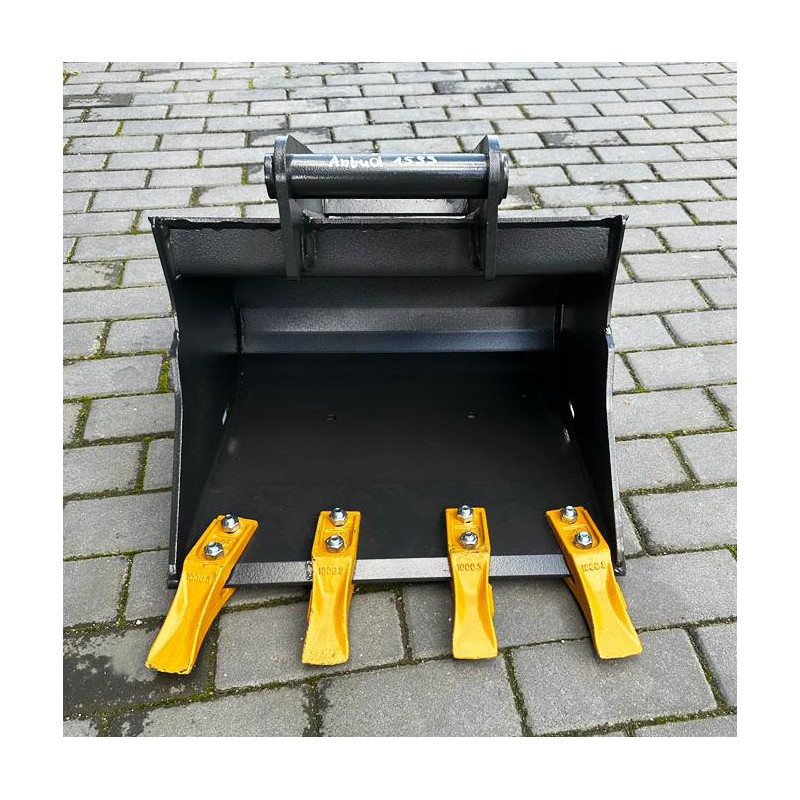

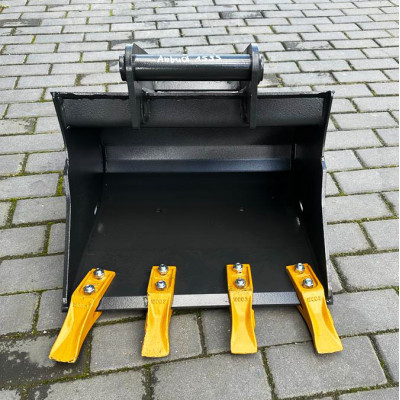

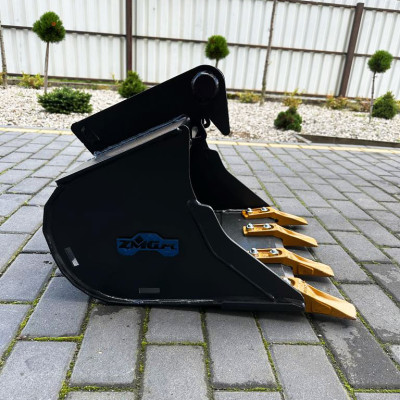

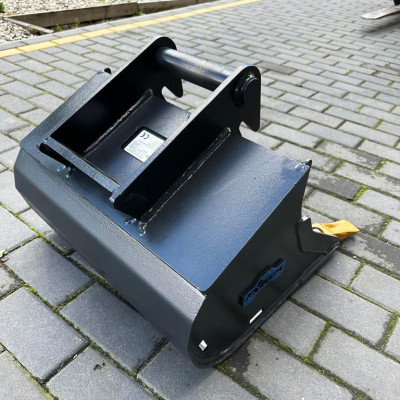

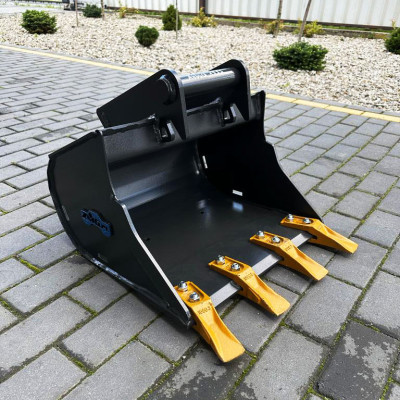

Digging bucket 250mm MS01 class 0-2t

Name: Digging bucket 250mm MS01 class 0-2t
Brand: ZMG
SKU: LK-ZMG1-250-MS01
Price: 836.40 PLN
Availability: InStock

836.40 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS01 with base plate

Reference: AD-WP-MS01

The AD-WP-MS01 adapter is a durable solution built according to the Lehnhoff MS01 standard and equipped with a solid base plate. It enables fast and stable attachment of tools to compact machines, ensuring smooth operation and maximum efficiency on the job site.

** The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 0-1, 1-2
Adapter: MS01
Side plate: 10 S355
Base plate: 16 S355
Pin diameter: 40
Inner width: 185
Pin spacing: 225
Weight: 13

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434
MS10	70	405	511,3
MS21/25	80	510	529,5

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY		MS10		MS21/25
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355	20mm	S355	30mm	S355
Base plate:	16mm	S355	16mm	S355	16mm	S355	16mm	S355	20mm	S355	20mm	S355	16mm	S355	20mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
200	21	16	2
250	23	21	2
300	25	27	3
350	28	32	3
400	31	37	3
450	34	42	4
500	37	48	4
550	40	57	4
600	43	61	4
700	46	69	4
800	49	79	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

	Type
Teeth:	JCB Mini

Alternative products with a different lead time:

The LK-ZMG1-250-MS01 is a 250 mm digging bucket created to meet the demands of mini and compact excavators up to 2 t. It performs well in earthmoving, excavation, grading, and breaking through soils of varying hardness. The Lehnhoff MS01 quick coupler allows fast and safe attachment changes, minimising downtime on site. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG1

Reference LK-ZMG1-250-MS01

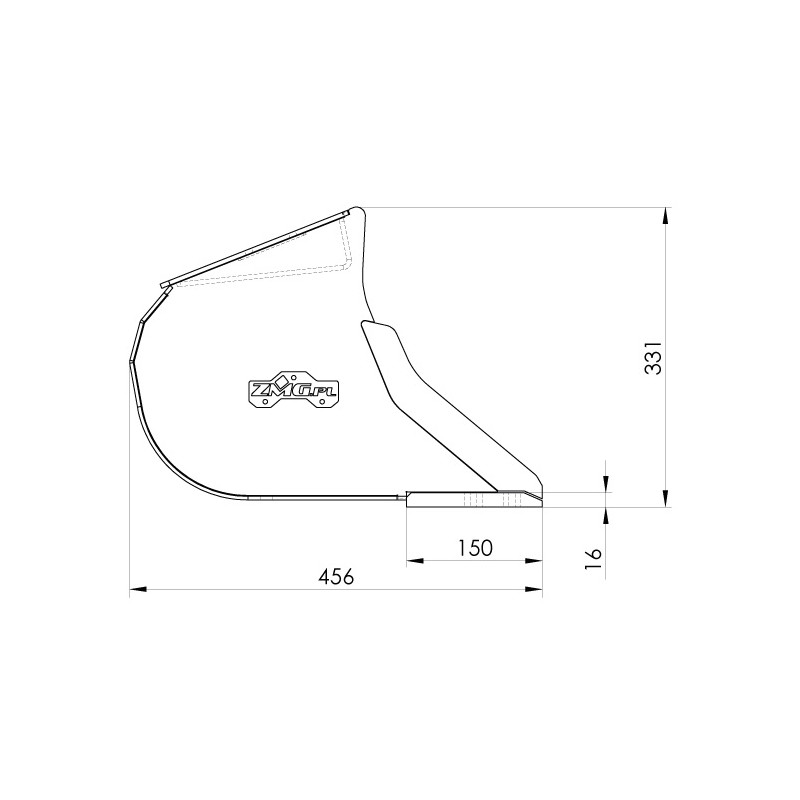

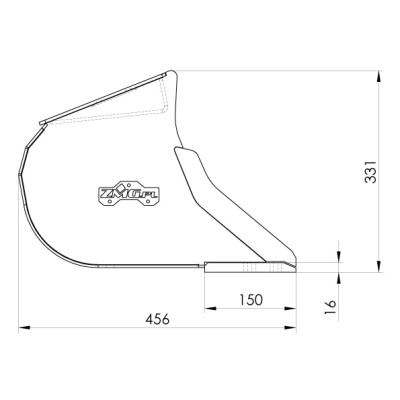

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: MS01
Width: 250
Weight without adapter: 23
Capacity: 21
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 2
Type of teeth: JCB Mini
