Class: 6-9 T
Width: 800
Adapter: S45

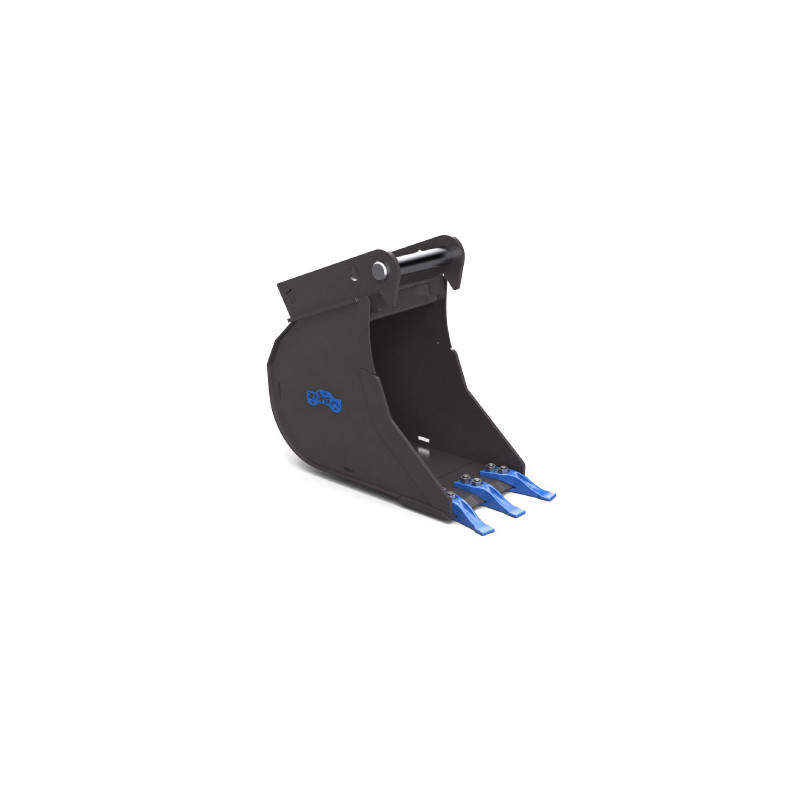

Digging bucket 800mm S45 class 6-8t

Name: Digging bucket 800mm S45 class 6-8t
Brand: ZMG
SKU: LK-ZMG4-800-S45
Price: 4030.71 PLN
Availability: InStock

4,030.71 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

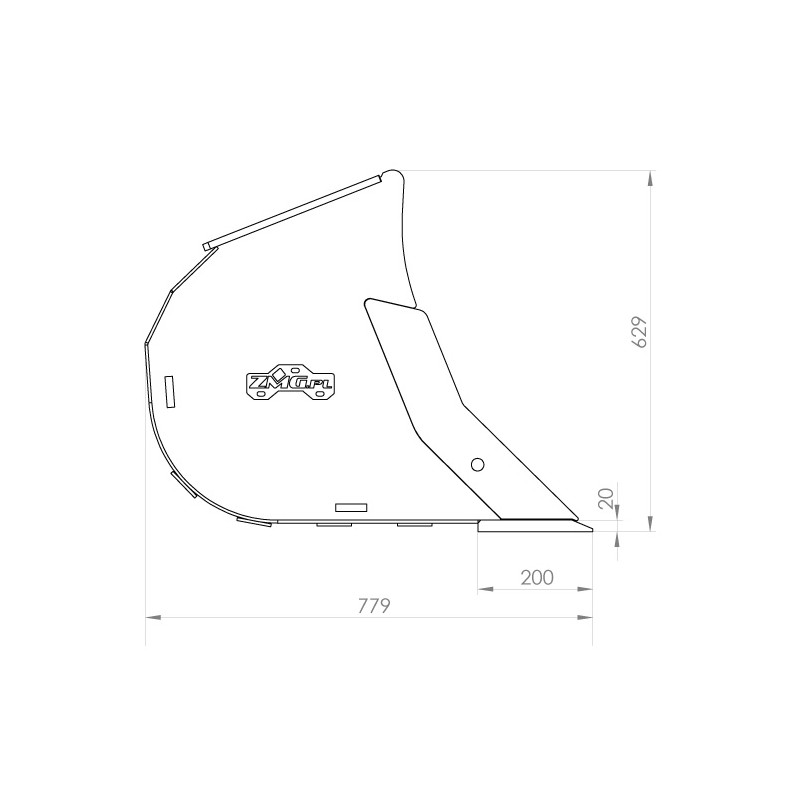

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
350	76	100	3
400	82	118	3
450	89	136	4
500	95	155	4
600	108	193	4
700	121	231	5
800	134	269	5
900	147	307	5
1000	160	345	6
1100	173	384	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

The LK-ZMG4-800-S45 series is a 800 mm digging bucket dedicated to excavators in the 6–8 t class. Its optimal working width enables efficient foundation work, linear trenching, road construction, and general site operations. The S45 adapter is designed for large machines with the S45 standard, providing secure and durable mounting of heavy attachments. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG4

Reference LK-ZMG4-800-S45

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: S45
Width: 800
Weight without adapter: 134
Capacity: 269
Side/rear plate: 6 S355
Side cutters: 12 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: JCB
