Class: 4-6 T
Width: 1000
Adapter: MS03SY

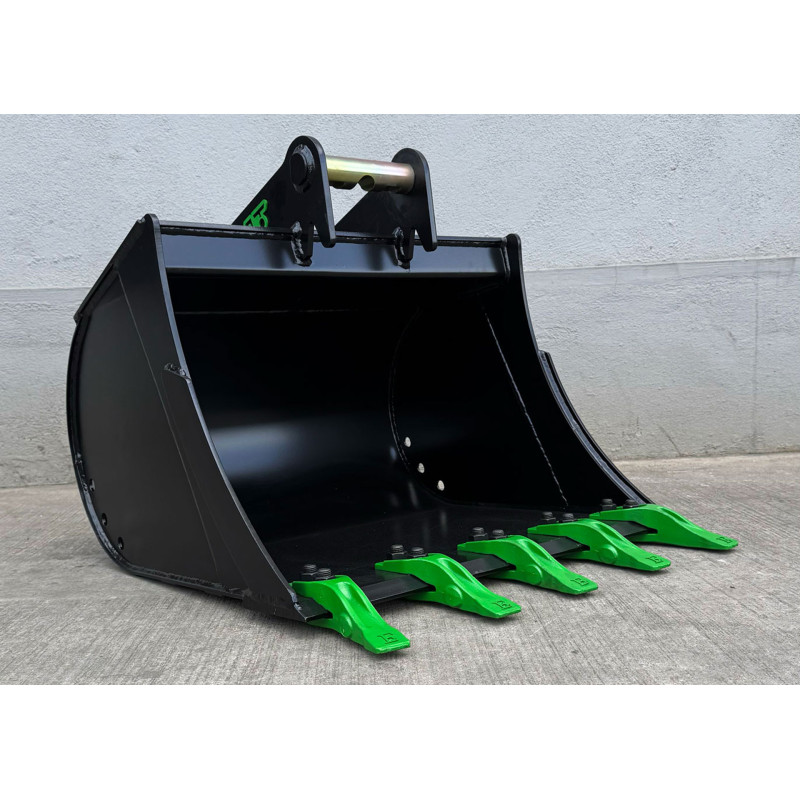

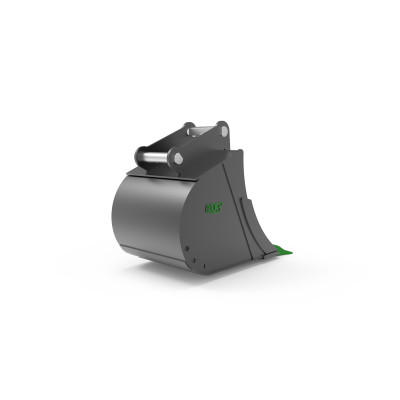

Digging bucket 1000mm MS03SY class 4-6t

Name: Digging bucket 1000mm MS03SY class 4-6t
Brand: Kalanto
SKU: DBS-S4-V1-1000-MS03SY
Price: 3916.32 PLN
Availability: InStock

3,916.32 zł Tax included

In stock Lead time up to 48 hours

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS03SY-without base plate

Reference: AD-WOP-MS03SY

The AD-WOP-MS03SY is a lightweight yet strong adapter built for the Lehnhoff MS03SY system. It offers fast tool connection without a base plate, making it a perfect choice for operators who value versatility and efficiency.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 2-3, 3-4, 4-5
Adapter: MS03SY
Side plate: 12 S355
Pin diameter: 50
Inner width: 205
Pin spacing: 322
Weight: 15

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	10mm	S355
Rear side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	5 mm	S355
Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

Watch video (2)

Alternative products with a different lead time:

up to 3 business weeks Class: 4-6 T ZMG 4,062.69 zł

The DBS-S4-V1-1000-MS03SY model is engineered for professional construction applications. With a strengthened structure, it performs reliably in roadworks, installation projects, earthmoving tasks and foundation excavation carried out by 4–6 ton excavators. The combination of increased capacity and precise bucket geometry boosts productivity without sacrificing accuracy.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S4-V1-1000-MS03SY

Data sheet

Lead time: up to 48 hours
For the machine: 4-5
5-6
Adapter: MS03SY
Width: 1000
Weight without adapter: 141
Capacity: 300
Side/rear plate: 5 S355
Front side plate: 10 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 HB400
Cutting edge: 20x150 HB400
Top plate: 8 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: E25

Specific References

EAN13: 5908159221091

Watch the videos
