Class: 6-9 T
Width: 800
Adapter: Without adapter

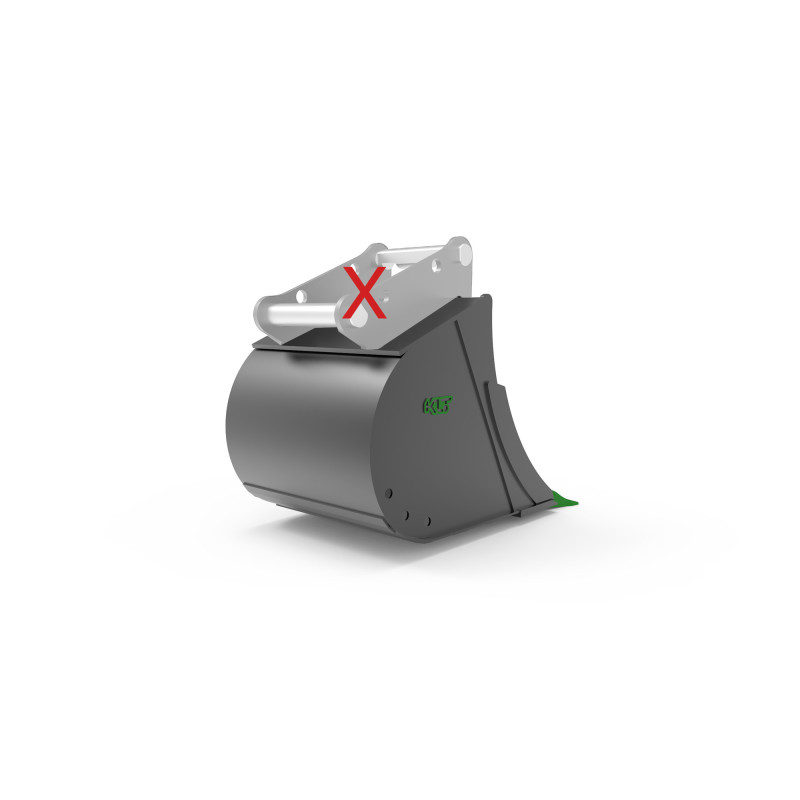

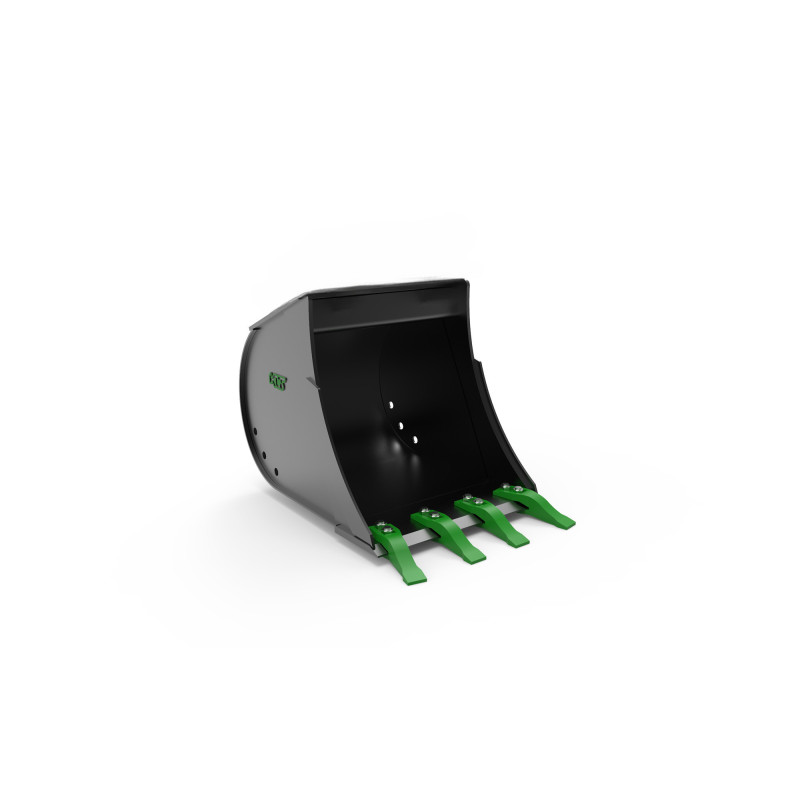

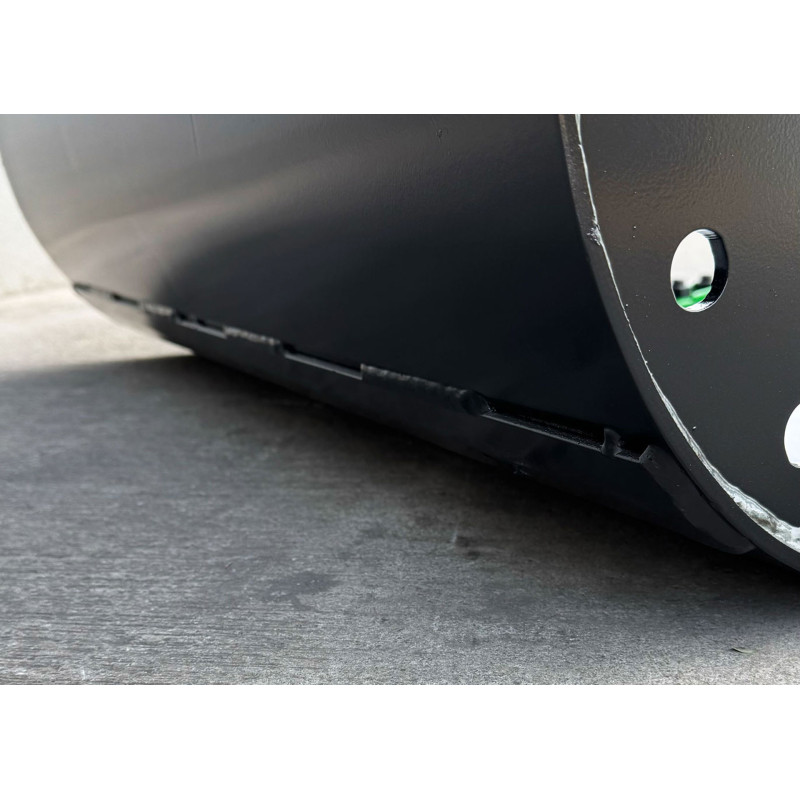

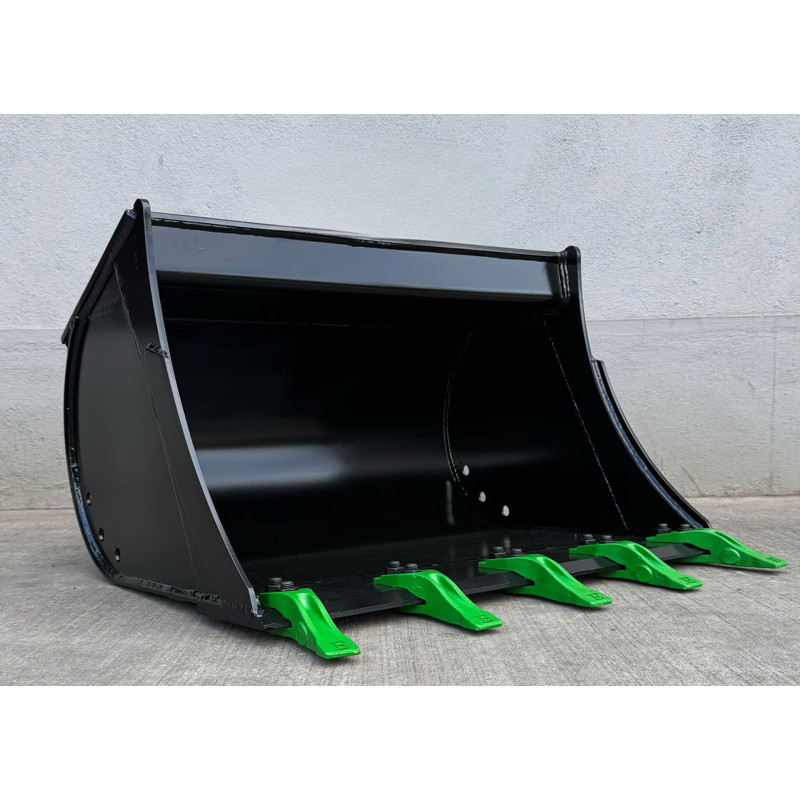

Digging bucket 800mm without adapter class 6-9t

Digging bucket 800mm without adapter class 6-9t

Name: Digging bucket 800mm without adapter class 6-9t
Brand: Kalanto
SKU: DBS-S5-V1-800-WOA
Price: 3948.30 PLN
Availability: InStock

3,948.30 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12mm	S355
Rear side plate:	6 mm	S355
Roll sheet:	6 mm	S355
Cutting edge:	20 x 200 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	12 mm	S355
Bend plate:	10 mm	S355
Rear wear strips:	5 mm	HB400
	Type

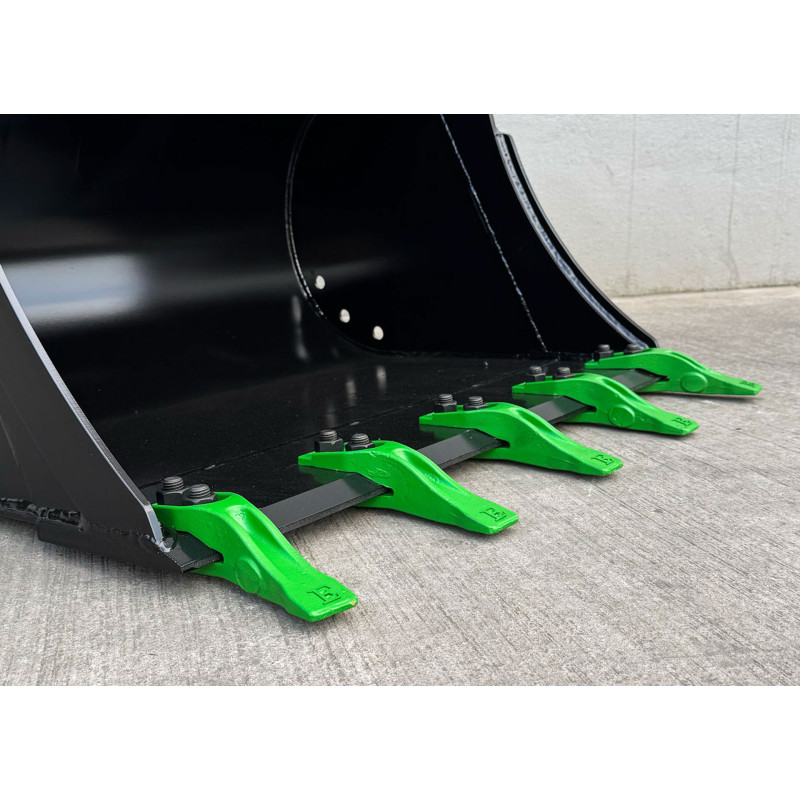

Teeth:	E25

Strong and practical, the DBS-S5-V1-800-WOA bucket is an ideal tool for heavy earthworks in demanding construction conditions. It supports foundation trenches, linear excavations and tasks related to industrial and road construction. Its precise handling improves safety and operator comfort.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S5-V1-800-WOA

Data sheet

Lead time: up to 48 hours
For the machine: 6-7
7-8
8-9
Adapter: Without adapter
Width: 800
Weight without adapter: 164
Capacity: 274
Side/rear plate: 6 S355
Front side plate: 12 S355
Side cutters: 8 HB400
Roll sheet: 6 S355
Rear wear strips: 5 HB400
Cutting edge: 20x200 HB400
Top plate: 12 S355
Bend plate: 10 S355
Number of teeth: 5
Type of teeth: E25

Specific References

EAN13: 5908159221619
