Class: 0-2 T
Width: 500
Adapter: S30/180

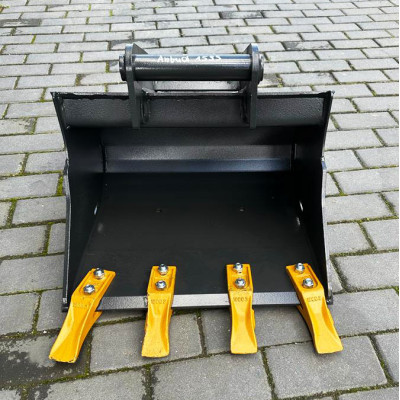

Digging bucket 500mm S30/180 class 0-2t

Name: Digging bucket 500mm S30/180 class 0-2t
Brand: ZMG
SKU: LK-ZMG1-500-S30/180
Price: 1254.60 PLN
Availability: InStock

1,254.60 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Volvo system- S30/180 without base plate

Reference: AD-WOP-S30/180

AD-WOP-S30/180 is a lightweight, base-plate-free adapter fully compatible with the Volvo S30/180 system. Its solid build and fast tool mounting increase flexibility and productivity on the job site.

Lead time: up to 48 hours
For the machine: 0-1, 1-2
Adapter: S30/180
Side plate: 20 S355
Pin diameter: 30
Inner width: 182
Pin spacing: 230,5
Weight: 5

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
200	21	16	2
250	23	21	2
300	25	27	3
350	28	32	3
400	31	37	3
450	34	42	4
500	37	48	4
550	40	57	4
600	43	61	4
700	46	69	4
800	49	79	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

	Type
Teeth:	JCB Mini

Alternative products with a different lead time:

The LK-ZMG1-500-S30/180 digging bucket with a working width of 500 mm is a sturdy tool designed for mini and compact excavators up to 2 t. It is perfectly suited for foundation excavation, earthmoving, and general construction tasks requiring both precision and efficiency. The S30/180 adapter provides S30 standard compatibility with extended pin spacing, allowing mounting on various excavator arm configurations. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG1

Reference LK-ZMG1-500-S30/180

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: S30/180
Width: 500
Weight without adapter: 37
Capacity: 48
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
