Class: 0-2 T
Width: 500
Adapter: S30/180

HIT

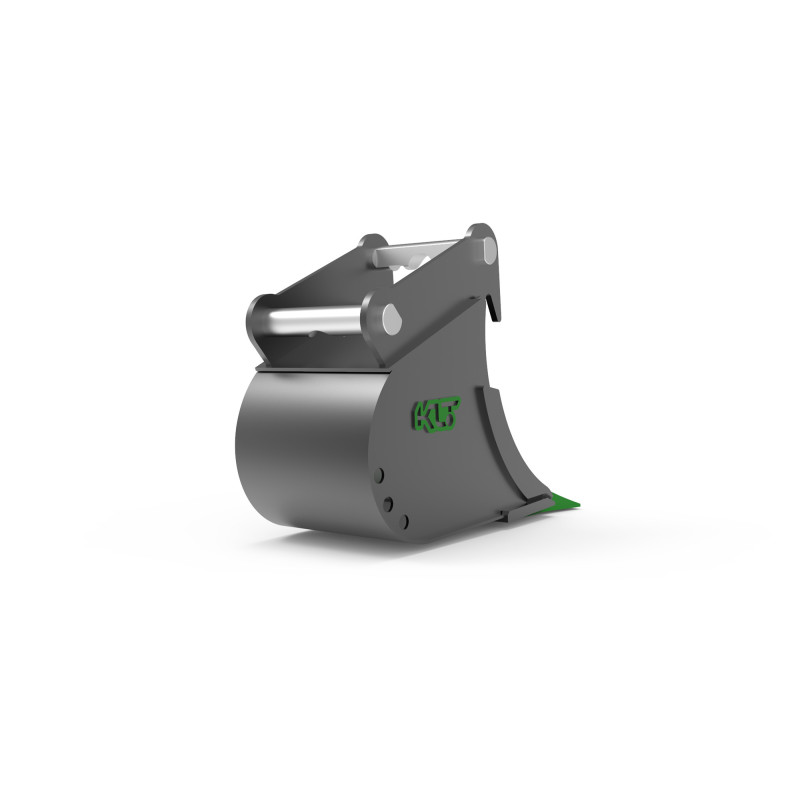

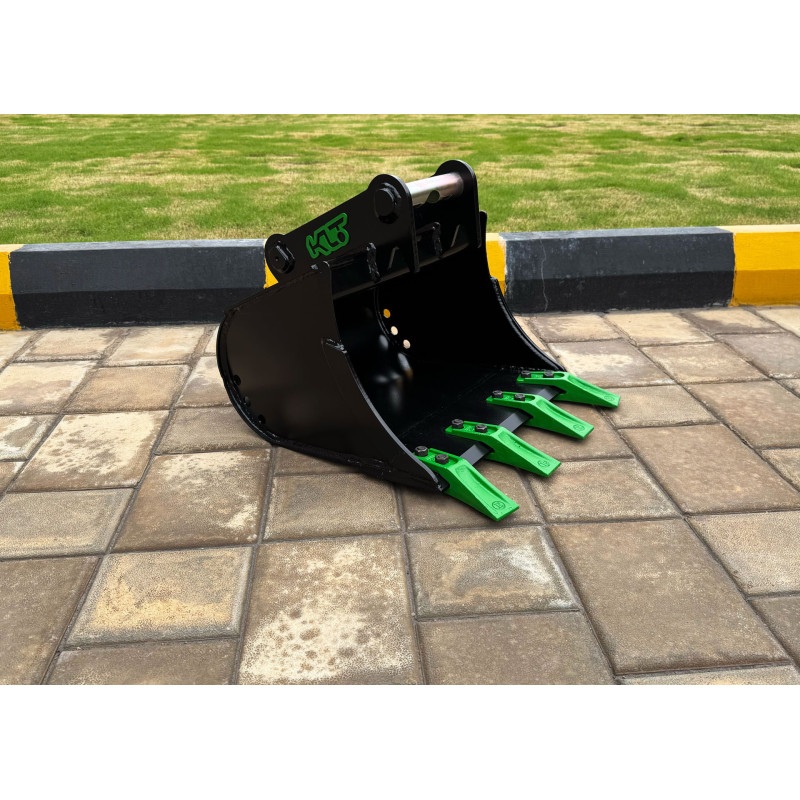

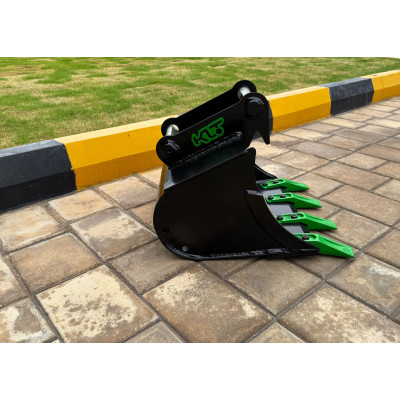

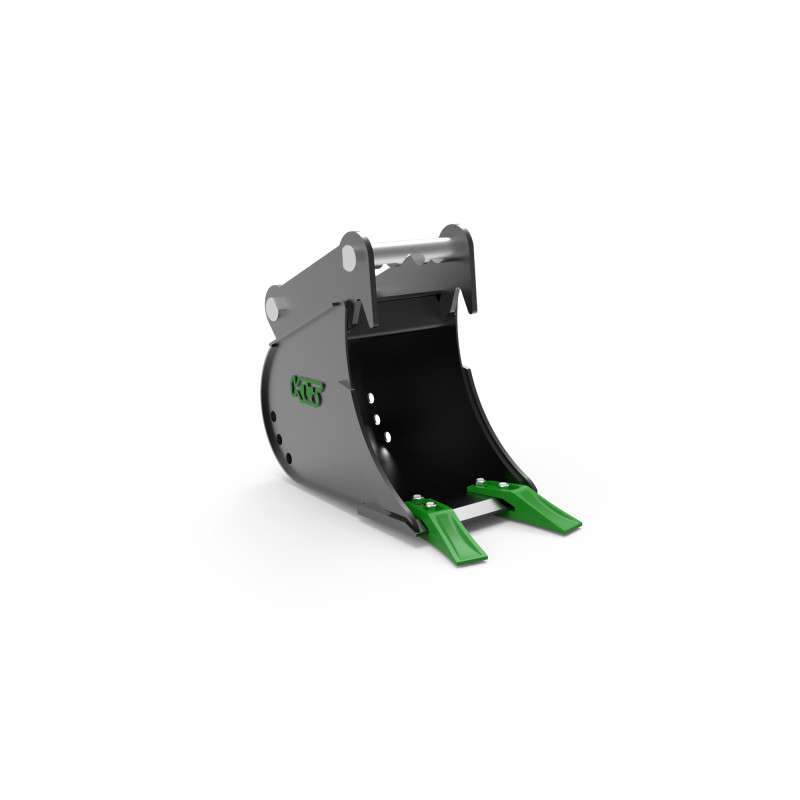

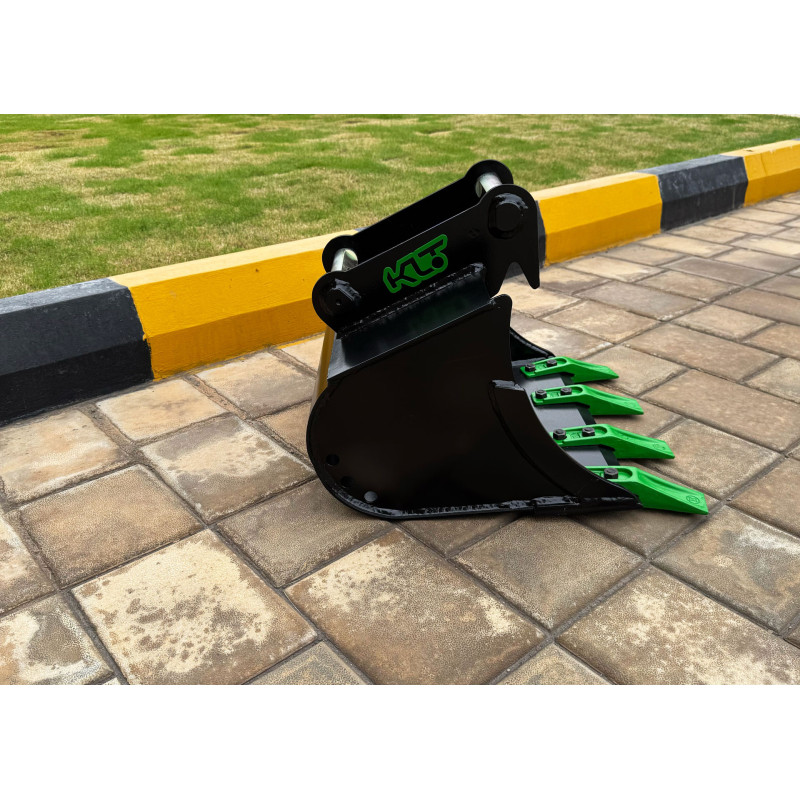

Digging bucket 500mm S30/180 class 0-2t

Name: Digging bucket 500mm S30/180 class 0-2t
Brand: Kalanto
SKU: DBS-S1-V1-500-S30/180
Price: 1215.24 PLN
Availability: InStock

1,215.24 zł Tax included

In stock Lead time up to 48 hours

Other models:

Width

Adapter

Adapter parameters

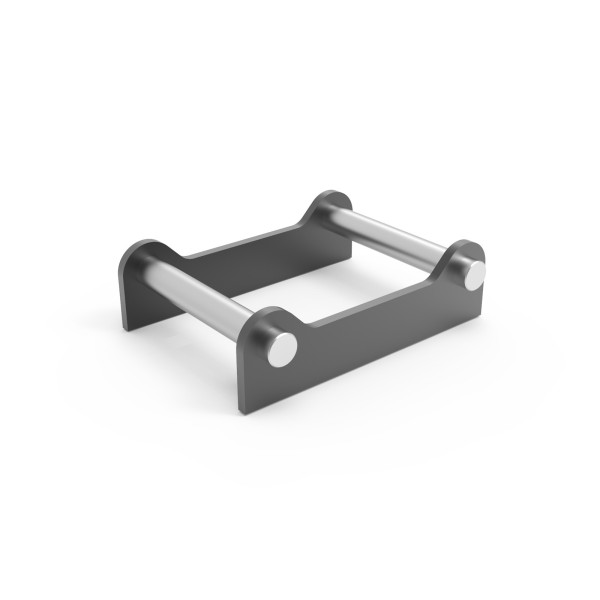

Adapter compatible with the Volvo system- S30/180 without base plate

Reference: AD-WOP-S30/180

AD-WOP-S30/180 is a lightweight, base-plate-free adapter fully compatible with the Volvo S30/180 system. Its solid build and fast tool mounting increase flexibility and productivity on the job site.

Lead time: up to 48 hours
For the machine: 0-1, 1-2
Adapter: S30/180
Side plate: 20 S355
Pin diameter: 30
Inner width: 182
Pin spacing: 230,5
Weight: 5

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	21	25	2
300	25	31	3
400	30	43	3
450	34	49	4
500	37	55	4
600	42	67	4
800	53	91	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355

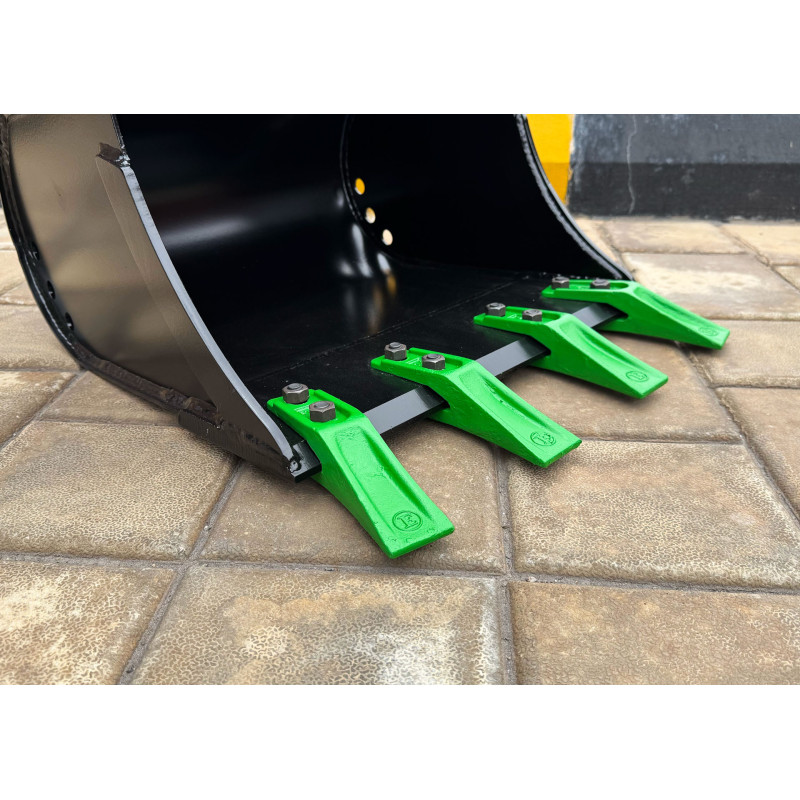

Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
	Type
Teeth:	E11.4

Watch video (2)

Alternative products with a different lead time:

Designed with compact performance in mind, the DBS-S1-V1-500-S30/180 bucket fits mini excavators up to 2 tons. It is perfect for narrow-space excavation, including installation trenches, utility work, and landscape maintenance.

Its solid steel construction and structural reinforcements provide durable performance. The refined bucket geometry enables quick scooping and dumping, boosting overall work efficiency.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S1-V1-500-S30/180

Data sheet

Lead time: up to 48 hours
For the machine: 0-1
1-2
Adapter: S30/180
Width: 500
Weight without adapter: 37
Capacity: 55
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: E11.4

Specific References

EAN13: 5908159220612

Watch the videos

16 other products in the same category:

Class: 6-8 T
Width: 450
Adapter: S50

ZMG

Digging bucket 450mm S50 class 6-8t

3,004.89 zł

In stock

The LK-ZMG4-450-S50 digging bucket with a working width of 450 mm is a sturdy tool designed for excavators in the 6–8 t class. It is perfectly suited for foundation excavation, earthmoving, and...

Class: 2-3 T
Width: 500
Adapter: MS03

ZMG

Digging bucket 500mm MS03 class 2-3t

1,740.45 zł

In stock

The LK-ZMG2-500-MS03 digging bucket with a working width of 500 mm is a sturdy tool designed for small excavators in the 2–3 t class. It is perfectly suited for foundation excavation, earthmoving,...

Class: 0-2 T
Width: 600
Adapter: CW05

ZMG

Digging bucket 600mm CW05 class 0-2t

1,528.89 zł

In stock

The LK-ZMG1-600-CW05 series is a 600 mm digging bucket dedicated to mini and compact excavators up to 2 t. Its optimal working width enables efficient foundation work, linear trenching, road...

Class: 6-8 T
Width: 1000
Adapter: MS08

ZMG

Digging bucket 1000mm MS08 class 6-8t

4,654.32 zł

In stock

The LK-ZMG4-1000-MS08 is a 1000 mm digging bucket created to meet the demands of excavators in the 6–8 t class. It performs well in earthmoving, excavation, grading, and breaking through soils of...

Class: 3-4 T
Width: 250
Adapter: S40

ZMG

Digging bucket 250mm S40 class 3-4t

1,491.99 zł

In stock

The LK-ZMG2-5-250-S40 is a 250 mm digging bucket created to meet the demands of excavators in the 3–4 t class. It performs well in earthmoving, excavation, grading, and breaking through soils of...

Class: 3-4 T
Width: 700
Adapter: M03

ZMG

Digging bucket 700mm M03 class 3-4t

2,793.33 zł

In stock

The LK-ZMG2-5-700-M03 digging bucket, 700 mm wide, was developed specifically for excavators in the 3–4 t class. Its design allows efficient foundation trenching, earthmoving, and underground...

Class: 6-9 T
Width: 900
Adapter: MS08SY

Solid Hitch

Digging bucket 900mm MS08SY class 6-9t

10,096.70 zł

Made to order

Buckets designed for MS08 mounting come with durable CAT J teeth and a HARDOX 500 TUF structure, providing long service life, reduced weight, and high efficiency when used with MS08 quick...

Class: 8-11 T
Width: 800
Adapter: S45

ZMG

Digging bucket 800mm S45 class 8-11t

5,072.52 zł

In stock

The LK-ZMG5-800-S45 digging bucket with a working width of 800 mm is a sturdy tool designed for heavy excavators in the 8–11 t class. It is perfectly suited for foundation excavation, earthmoving,...

Class: 6-9 T
Width: 800
Adapter: MS08SY

Solid Hitch

Digging bucket 800mm MS08SY class 6-9t

10,292.39 zł

Made to order

The MS08 mounting bucket model features CAT J teeth in welded or bolted versions, and its robust HARDOX 500 TUF construction ensures strength, reduced weight, and perfect compatibility with the...

Class: 2-3 T
Width: 600
Adapter: S30/180

Kalanto

Digging bucket 600mm S30/180 class 2-3t

1,830.24 zł

In stock

The DBS-S2-V1-600-S30/180 bucket is designed for machines up to 3 tons and delivers excellent results in foundation digging, utilities, and standard construction work. Its balanced...

Class: 4-6 T
Width: 500
Adapter: CW10

Solid Hitch

Digging bucket 500mm CW10 class 4-6t

5,426.51 zł

Made to order

Buckets designed for CW10 mounting come with CAT J teeth, available in welded or bolted versions. Thanks to the HARDOX 500 TUF construction, they provide increased wear resistance and a reduced...

Class: 4-6 T
Width: 450
Adapter: M10

ZMG

Digging bucket 450mm M10 class 4-6t

2,766.27 zł

In stock

Model LK-ZMG3-450-M10 is a professional 450 mm digging bucket intended for medium-class excavators of 4–6 t. It excels in excavation work, soil removal, trenching, and all types of civil...

Class: 8-11 T
Width: 400
Adapter: CW10

ZMG

Digging bucket 400mm CW10 class 8-11t

3,596.52 zł

In stock

The LK-ZMG5-400-CW10 is a 400 mm digging bucket created to meet the demands of heavy excavators in the 8–11 t class. It performs well in earthmoving, excavation, grading, and breaking through...

Class: 2-3 T
Width: 800
Adapter: MS03

ZMG

Digging bucket 800mm MS03 class 2-3t

2,322.24 zł

In stock

The LK-ZMG2-800-MS03 digging bucket with a working width of 800 mm is a sturdy tool designed for small excavators in the 2–3 t class. It is perfectly suited for foundation excavation, earthmoving,...

Class: 4-6 T
Width: 500
Adapter: OQ40

Kalanto

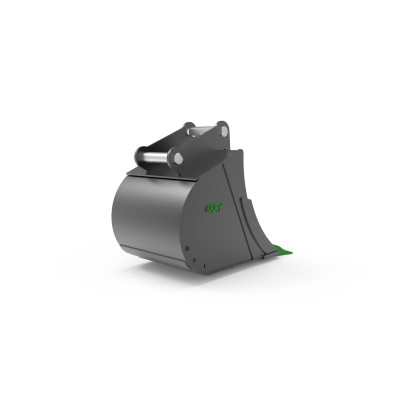

Digging bucket 500mm OQ40 class 4-6t
