Class: 6-9 T
Width: 800
Adapter: CW10

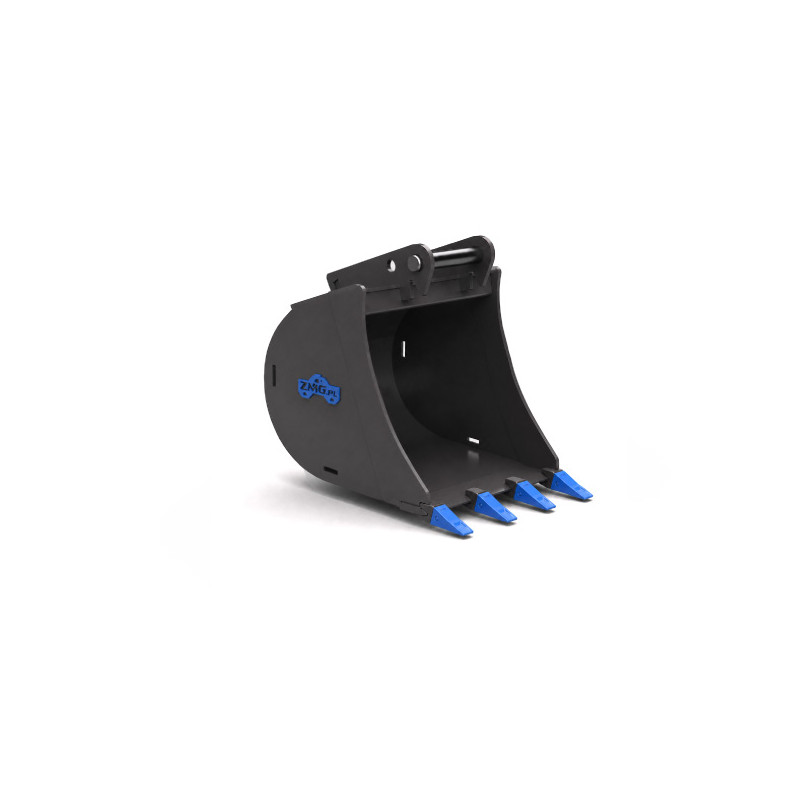

Digging bucket 800mm CW10 class 8-11t

Name: Digging bucket 800mm CW10 class 8-11t
Brand: ZMG
SKU: LK-ZMG5-800-CW10
Price: 5072.52 PLN
Availability: InStock

5,072.52 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
400	124	143	3
500	142	190	3
600	159	240	4
700	177	292	4
800	194	344	4
900	212	397	5
1000	230	450	5
1100	247	502	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	8 mm	S355
Front side plate:	12 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	CAT J200

The LK-ZMG5-800-CW10 series is a 800 mm digging bucket dedicated to heavy excavators in the 8–11 t class. Its optimal working width enables efficient foundation work, linear trenching, road construction, and general site operations. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. Thick S355 steel plate and HB400 steel cutting edges guarantee abrasion resistance and reliability in all terrain conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG5

Reference LK-ZMG5-800-CW10

Data sheet

Lead time: up to 3 business weeks
For the machine: 8-9
9-10
10-11
Adapter: CW10
Width: 800
Weight without adapter: 194
Capacity: 344
Side/rear plate: 8 S355
Front side plate: 12 S355
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 4
Type of teeth: CAT J200
