Class: 2-3 T
Width: 550
Adapter: CW05

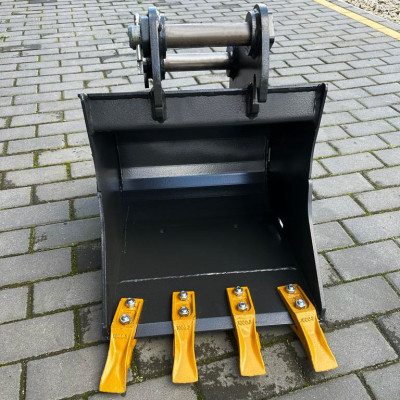

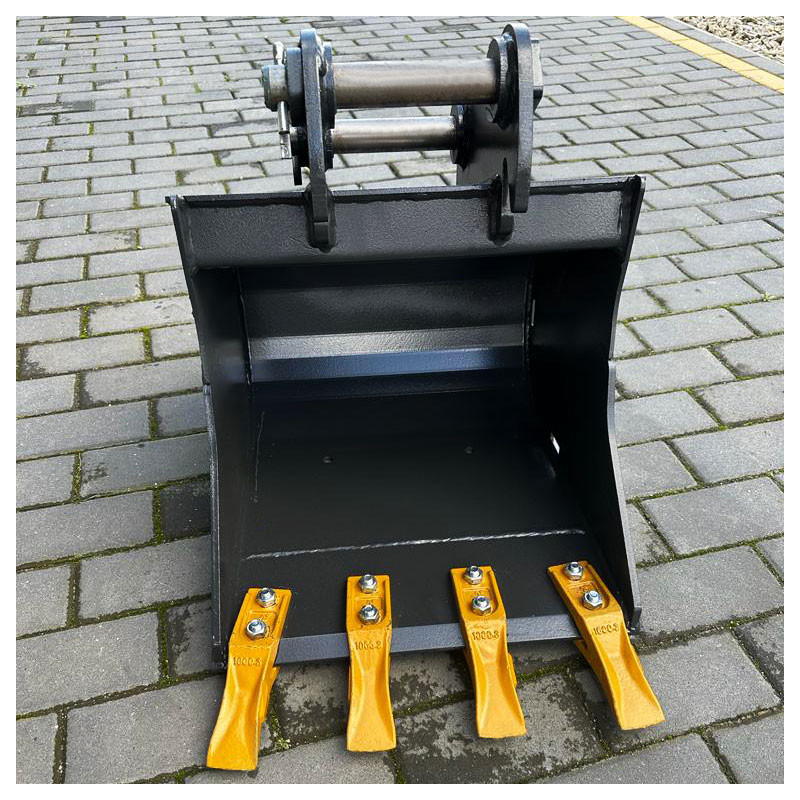

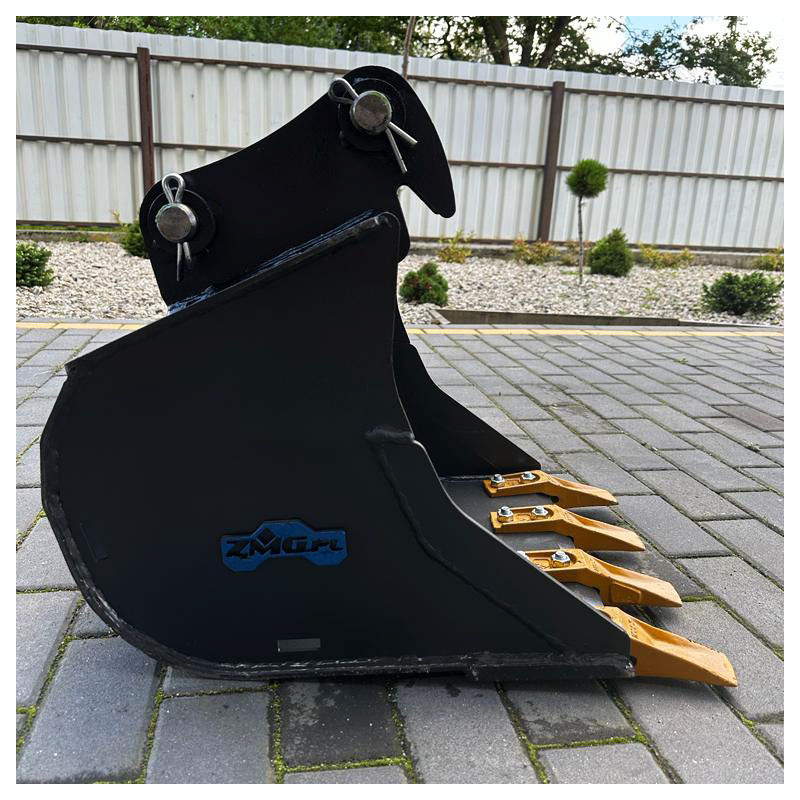

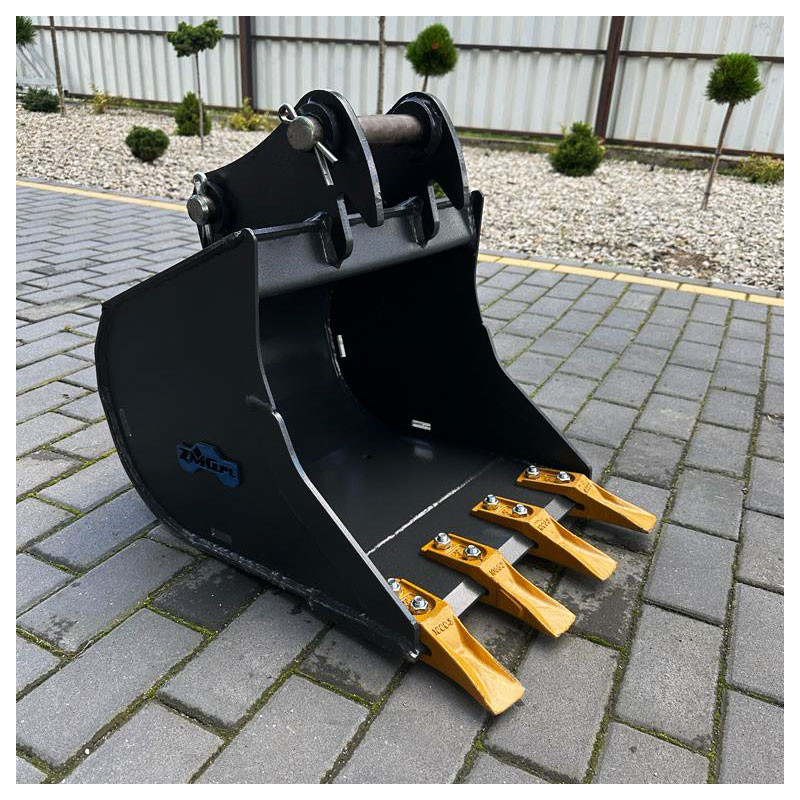

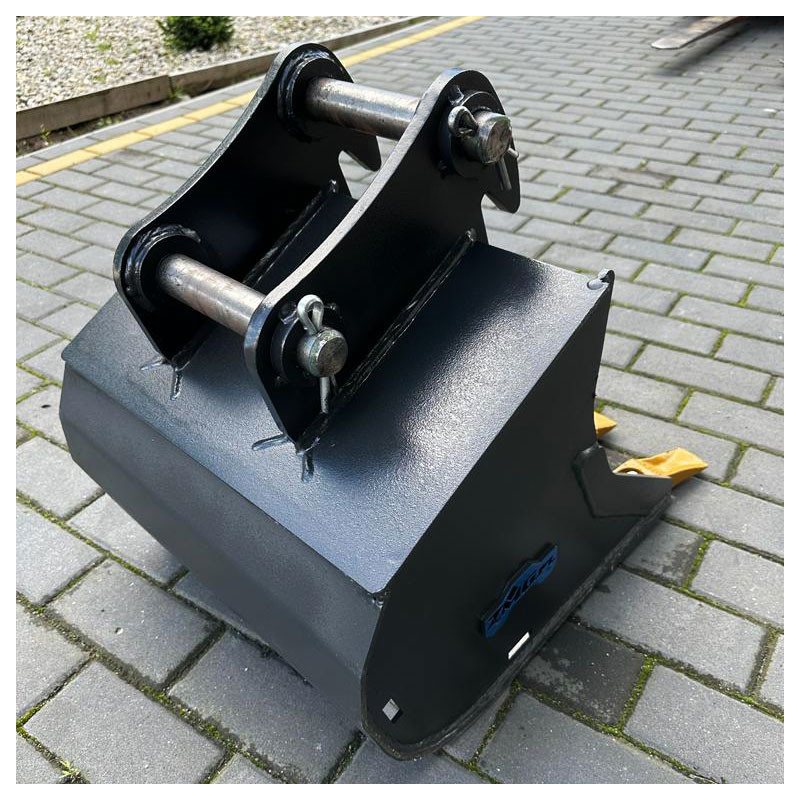

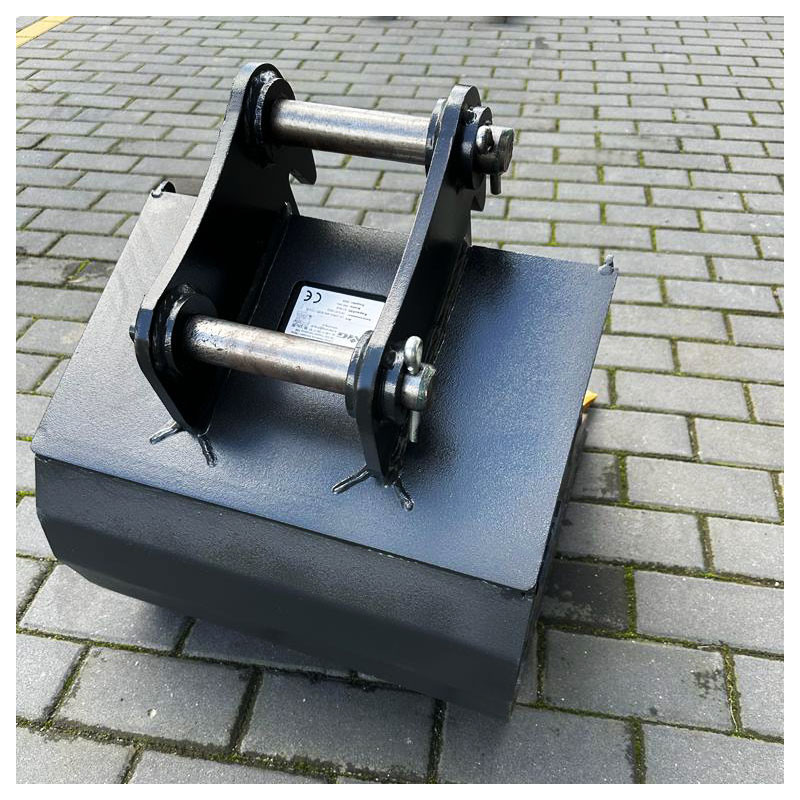

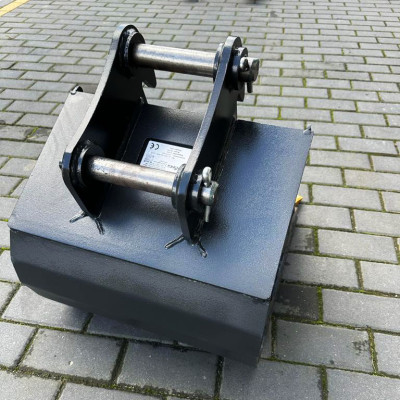

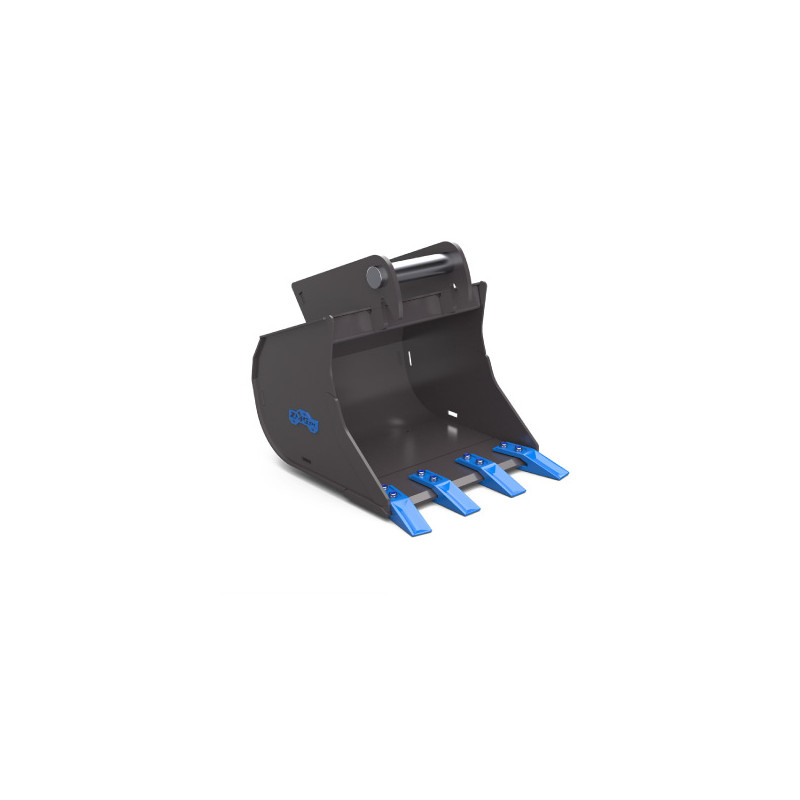

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

Digging bucket 550mm CW05 class 2-3t

1,841.31 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	32	30	2
300	34	38	3
350	38	46	3
400	42	53	3
450	45	61	4
500	49	69	4
550	53	77	4
600	56	85	4
700	64	100	4
800	71	116	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

	Type
Teeth:	JCB Mini

The LK-ZMG2-550-CW05 digging bucket with a working width of 550 mm is a sturdy tool designed for small excavators in the 2–3 t class. It is perfectly suited for foundation excavation, earthmoving, and general construction tasks requiring both precision and efficiency. The Verachtert CW05 quick coupler system guarantees a solid and safe machine connection, providing flexibility in attachment selection. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG2

Reference LK-ZMG2-550-CW05

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
Adapter: CW05
Width: 550
Weight without adapter: 53
Capacity: 77
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
