  • Class: 6-9 T
  • Width: 500
  • Adapter: CW10
Digging bucket 500mm CW10 class 6-8t
Digging bucket 500mm CW10 class 6-8t
    Digging bucket 500mm CW10 class 6-8t
    Digging bucket 500mm CW10 class 6-8t

Digging bucket 500mm CW10 class 6-8t

3,131.58 zł
Tax included
In stock Lead time: up to 3 business weeks

Other models:

Width
Adapter

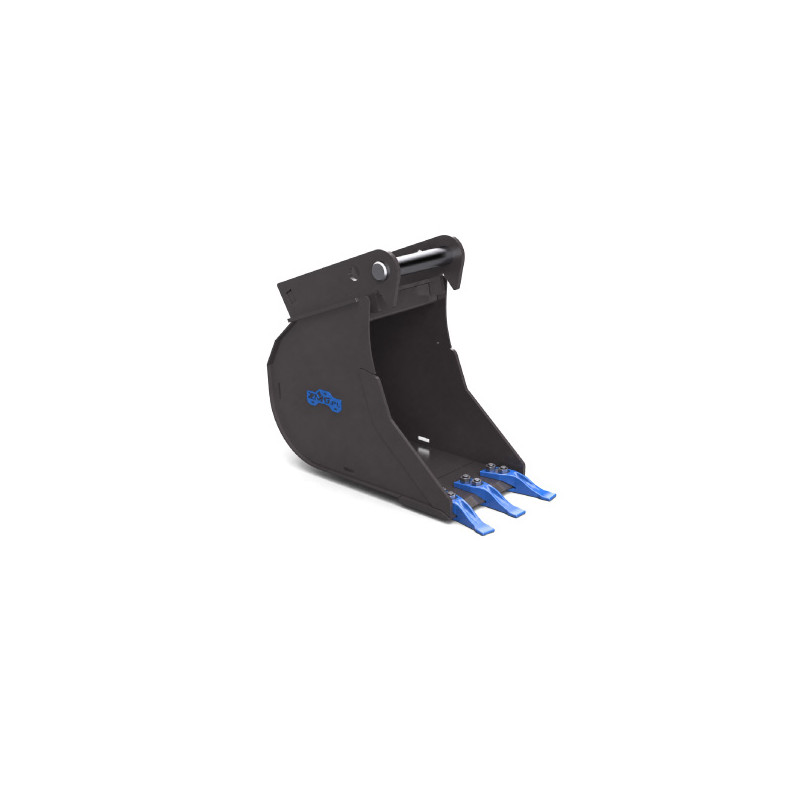

The LK-ZMG4-500-CW10 is a 500 mm digging bucket created to meet the demands of excavators in the 6–8 t class. It performs well in earthmoving, excavation, grading, and breaking through soils of varying hardness. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Quantity
Add to wishlist

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG4

LK-ZMG4-500-CW10

Data sheet

Lead time
up to 3 business weeks
For the machine
6-7
7-8
Adapter
CW10
Width
500
Weight without adapter
95
Capacity
155
Side/rear plate
6 S355
Side cutters
12 HB400
Roll sheet
5 S355
Rear wear strips
5 S355
Cutting edge
20 HB500
Top plate
12 S355
Bend plate
8 S355
Number of teeth
4
Type of teeth
JCB
