Digging bucket 400mm MS03SY class 2-3t
1,453.86 zł
Tax included
The DBS-S2-V1-400-MS03SY bucket is a robust attachment dedicated to mini and compact excavators in the 2–3 ton class. It is suitable for a wide range of earthmoving tasks, including foundation excavations, utility trenches and general construction jobs.
Its carefully designed capacity and geometry ensure accurate operation and high performance, even in challenging ground conditions.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 300 | 33 | 39 | 3 |
| 400 | 39 | 56 | 3 |
| 500 | 46 | 73 | 4 |
| 600 | 53 | 91 | 4 |
| 800 | 67 | 125 | 5 |

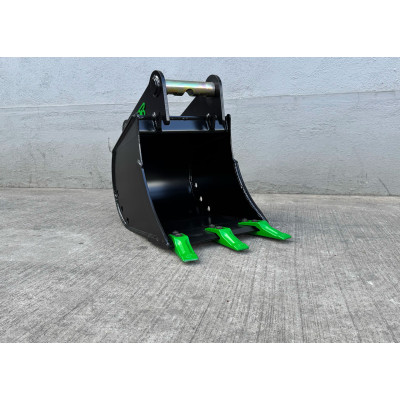

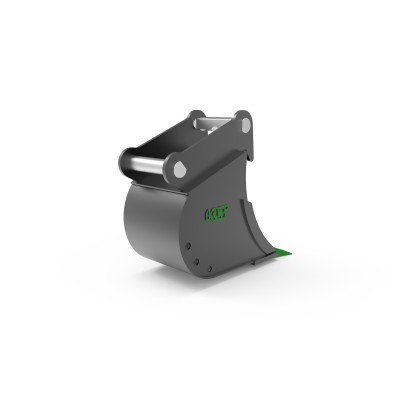

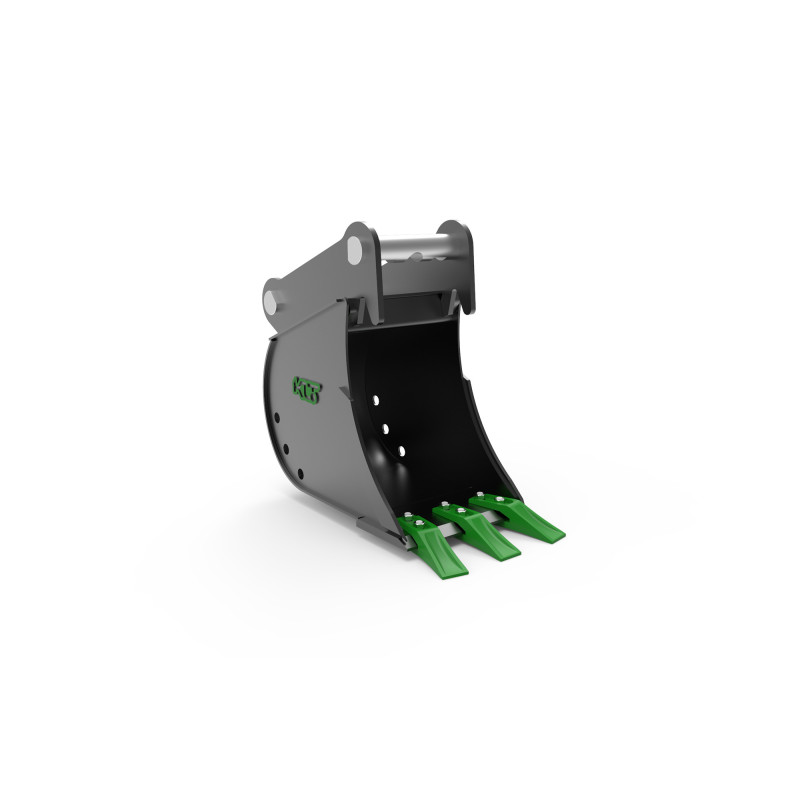

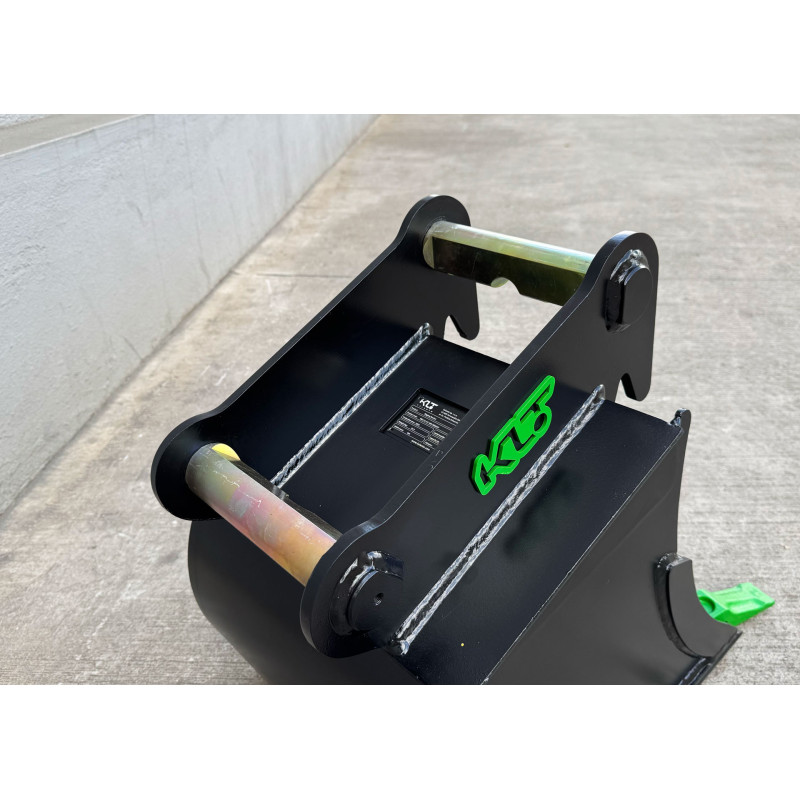

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S2-V1-400-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- MS03SY
- Width
- 400mm
- Weight without adapter
- 39kg
- Capacity
- 56 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 3pcs
- Type of teeth
- E11.4
