Class: 6-9 T
Width: 1000
Adapter: MS08SY

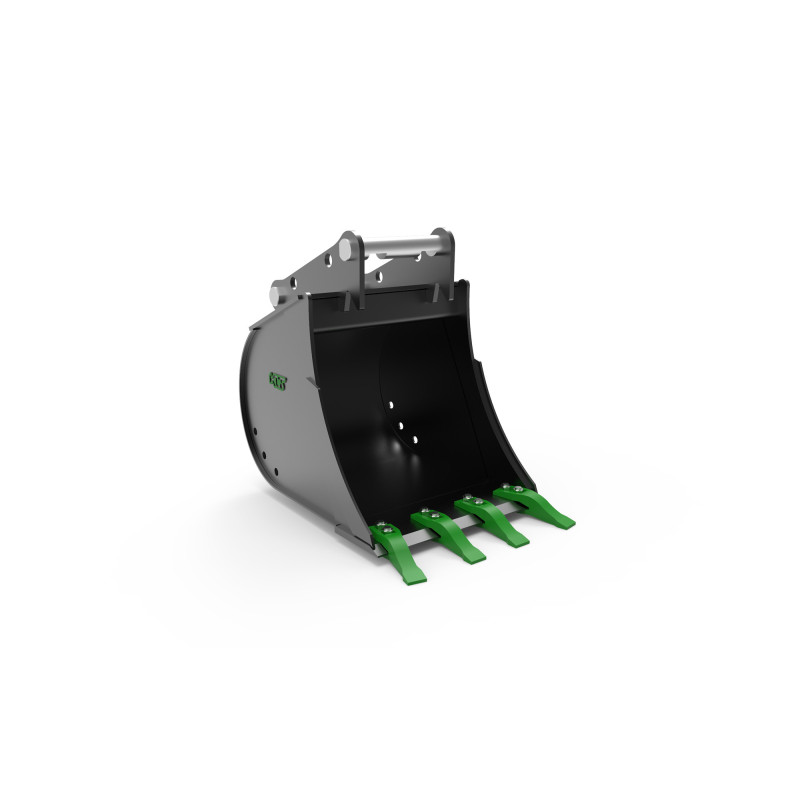

Digging bucket 1000mm MS08SY class 6-9t

Name: Digging bucket 1000mm MS08SY class 6-9t
Brand: Kalanto
SKU: DBS-S5-V1-1000-MS08SY
Price: 4926.15 PLN
Availability: InStock

4,926.15 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12mm	S355
Rear side plate:	6 mm	S355
Roll sheet:	6 mm	S355
Cutting edge:	20 x 200 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	12 mm	S355
Bend plate:	10 mm	S355
Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

DBS-S5-V1-1000-MS08SY offers excellent durability, stability and performance. Its structure is designed for intensive work with large volumes of soil. It works perfectly with mid-size excavators in environments requiring high working power. Bucket geometry supports fast soil collection and efficient material cutting.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S5-V1-1000-MS08SY

Data sheet

Lead time: up to 48 hours
For the machine: 6-7
7-8
8-9
Adapter: MS08SY
Width: 1000
Weight without adapter: 195
Capacity: 356
Side/rear plate: 6 S355
Front side plate: 12 S355
Side cutters: 8 HB400
Roll sheet: 6 S355
Rear wear strips: 5 HB400
Cutting edge: 20x200 HB400
Top plate: 12 S355
Bend plate: 10 S355
Number of teeth: 5
Type of teeth: E25

Specific References

EAN13: 5908159221398

16 other products in the same category:

Digging bucket 900mm without adapter class 3-4t

Class: 3-4 T
Width: 900
Adapter: Without adapter

ZMG

Digging bucket 900mm without adapter class 3-4t

2,883.12 zł

In stock

The LK-ZMG2-5-900-WOA digging bucket with a working width of 900 mm is a sturdy tool designed for excavators in the 3–4 t class. It is perfectly suited for foundation excavation, earthmoving, and...

Class: 2-3 T
Width: 300
Adapter: CW05

Solid Hitch

Digging bucket 300mm CW05 class 2-3t

3,305.62 zł

Made to order

CW05-mounted digging buckets are equipped with CAT J teeth welded or bolted, and the HARDOX 500 TUF steel provides low weight and high abrasion resistance. **The image is for illustrative...

Class: 0-2 T
Width: 250
Adapter: MS01SY

ZMG

Digging bucket 250mm MS01SY class 0-2t

963.09 zł

In stock

Model LK-ZMG1-250-MS01SY is a professional 250 mm digging bucket intended for mini and compact excavators up to 2 t. It excels in excavation work, soil removal, trenching, and all types of civil...

Class: 4-6 T
Width: 700
Adapter: CW10

ZMG

Digging bucket 700mm CW10 class 4-6t

3,453.84 zł

In stock

The LK-ZMG3-700-CW10 series is a 700 mm digging bucket dedicated to medium-class excavators of 4–6 t. Its optimal working width enables efficient foundation work, linear trenching, road...

Digging bucket 450mm without adapter class 6-8t

Class: 6-9 T
Width: 450
Adapter: Without adapter

ZMG

Digging bucket 450mm without adapter class 6-8t

2,211.54 zł

In stock

The LK-ZMG4-450-WOA series is a 450 mm digging bucket dedicated to excavators in the 6–8 t class. Its optimal working width enables efficient foundation work, linear trenching, road construction,...

Class: 6-9 T
Width: 600
Adapter: MS08SY

ZMG

Digging bucket 600mm MS08SY class 8-11t

4,665.39 zł

In stock

The LK-ZMG5-600-MS08SY is a 600 mm digging bucket created to meet the demands of heavy excavators in the 8–11 t class. It performs well in earthmoving, excavation, grading, and breaking through...

Digging bucket 450mm with pins class 4-6t

Class: 4-6 T
Width: 450
Adapter: with pins

ZMG

Digging bucket 450mm with pins class 4-6t

2,687.55 zł

In stock

Model LK-ZMG3-450-ZSW is a professional 450 mm digging bucket intended for medium-class excavators of 4–6 t. It excels in excavation work, soil removal, trenching, and all types of civil...

Digging bucket 600mm without adapter class 4-6t

Class: 4-6 T
Width: 600
Adapter: Without adapter

ZMG

Digging bucket 600mm without adapter class 4-6t

2,485.83 zł

In stock

The LK-ZMG3-600-WOA series is a 600 mm digging bucket dedicated to medium-class excavators of 4–6 t. Its optimal working width enables efficient foundation work, linear trenching, road...

Class: 4-6 T
Width: 400
Adapter: MS03

ZMG

Digging bucket 400mm MS03 class 4-6t

2,285.34 zł

In stock

The LK-ZMG3-400-MS03 series is a 400 mm digging bucket dedicated to medium-class excavators of 4–6 t. Its optimal working width enables efficient foundation work, linear trenching, road...

Class: 0-2 T
Width: 400
Adapter: S30/150

ZMG

Digging bucket 400mm S30/150 class 0-2t

1,068.87 zł

In stock

The LK-ZMG1-400-S30/150 is a 400 mm digging bucket created to meet the demands of mini and compact excavators up to 2 t. It performs well in earthmoving, excavation, grading, and breaking through...

Class: 4-6 T
Width: 400
Adapter: CW10

Solid Hitch

Digging bucket 400mm CW10 class 4-6t

4,818.28 zł

Made to order

The CW10-mounted bucket model features CAT J teeth — welded or bolted — and a construction perfectly matched to CW10 quick couplers. The HARDOX 500 TUF build ensures reduced weight and long...

Class: 2-3 T
Width: 800
Adapter: MS03SY

ZMG

Digging bucket 800mm MS03SY class 2-3t

2,491.98 zł

In stock

The LK-ZMG2-800-MS03SY series is a 800 mm digging bucket dedicated to small excavators in the 2–3 t class. Its optimal working width enables efficient foundation work, linear trenching, road...

Class: 0-2 T
Width: 500
Adapter: S30/180

ZMG

Digging bucket 500mm S30/180 class 0-2t

1,254.60 zł

In stock

The LK-ZMG1-500-S30/180 digging bucket with a working width of 500 mm is a sturdy tool designed for mini and compact excavators up to 2 t. It is perfectly suited for foundation excavation,...

Digging bucket 400mm without adapter class 8-11t

Class: 6-9 T
Width: 400
Adapter: Without adapter

ZMG

Digging bucket 400mm without adapter class 8-11t

2,803.17 zł

In stock

Model LK-ZMG5-400-WOA is a professional 400 mm digging bucket intended for heavy excavators in the 8–11 t class. It excels in excavation work, soil removal, trenching, and all types of civil...

Class: 6-9 T
Width: 900
Adapter: MS08

ZMG

Digging bucket 900mm MS08 class 8-11t

5,564.52 zł

In stock

The LK-ZMG5-900-MS08 digging bucket, 900 mm wide, was developed specifically for heavy excavators in the 8–11 t class. Its design allows efficient foundation trenching, earthmoving, and...

Class: 0-2 T
Width: 600
Adapter: MS01SY

Solid Hitch

Digging bucket 600mm MS01SY class 0-2t

4,024.93 zł

Made to order

Quick-coupler buckets combine low weight with exceptional mechanical strength, making them ideal for demanding terrains. **The image is for illustrative purposes only. The order refers to the...

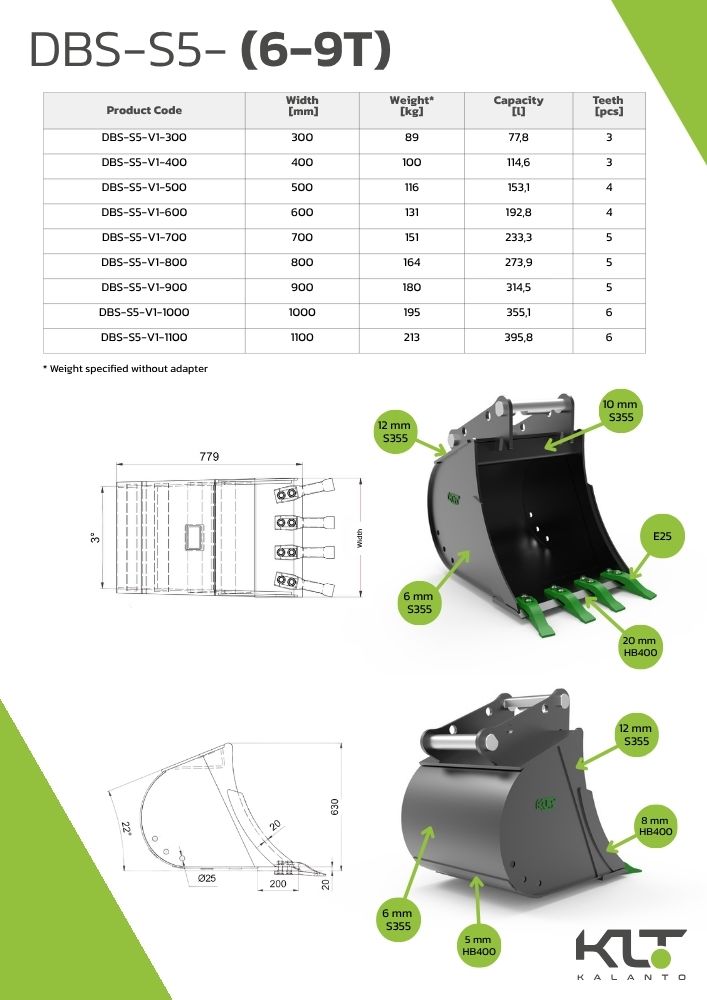

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
