Class: 6-9 T
Width: 300
Adapter: Without adapter

Digging bucket 300mm without adapter class 6-9t

Digging bucket 300mm without adapter class 6-9t

Name: Digging bucket 300mm without adapter class 6-9t
Brand: Kalanto
SKU: DBS-S5-V1-300-WOA
Price: 2311.17 PLN
Availability: InStock

2,311.17 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12mm	S355
Rear side plate:	6 mm	S355
Roll sheet:	6 mm	S355
Cutting edge:	20 x 200 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	12 mm	S355
Bend plate:	10 mm	S355
Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

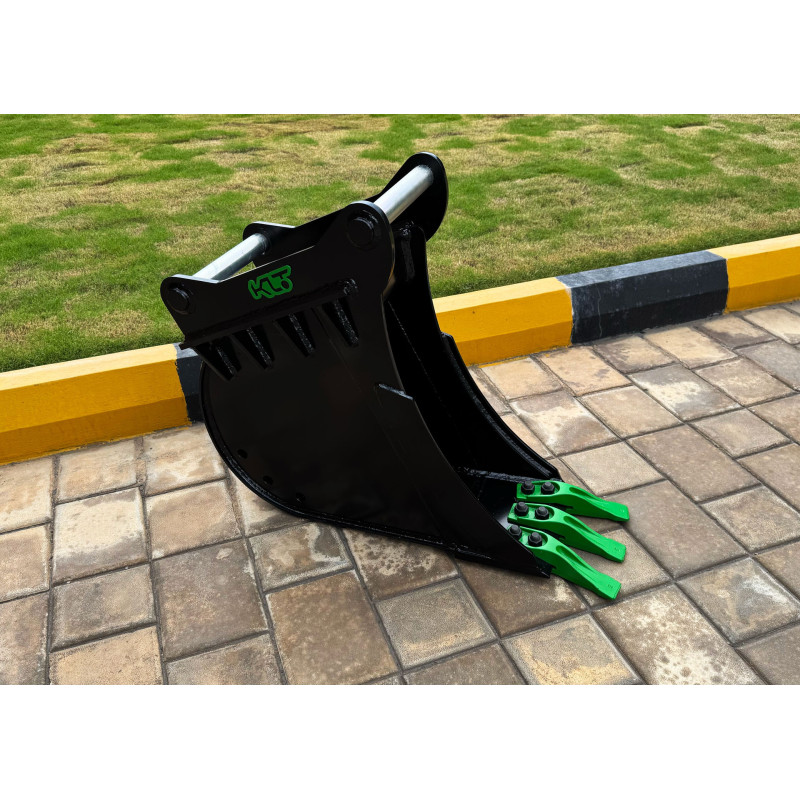

The DBS-S5-V1-300-WOA is a massive and durable digging bucket designed for 6–9 ton excavators. Engineered for extreme environments, it excels in deep trenching, heavy roadwork and preparing construction areas for large-scale investments. Its strong build and optimized geometry ensure stable performance, high efficiency and excellent operator control.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S5-V1-300-WOA

Data sheet

Lead time: up to 48 hours
For the machine: 6-7
7-8
8-9
Adapter: Without adapter
Width: 300
Weight without adapter: 89
Capacity: 78
Side/rear plate: 6 S355
Front side plate: 12 S355
Side cutters: 8 HB400
Roll sheet: 6 S355
Rear wear strips: 5 HB400
Cutting edge: 20x200 HB400
Top plate: 12 S355
Bend plate: 10 S355
Number of teeth: 3
Type of teeth: E25

Specific References

EAN13: 5908159221459
